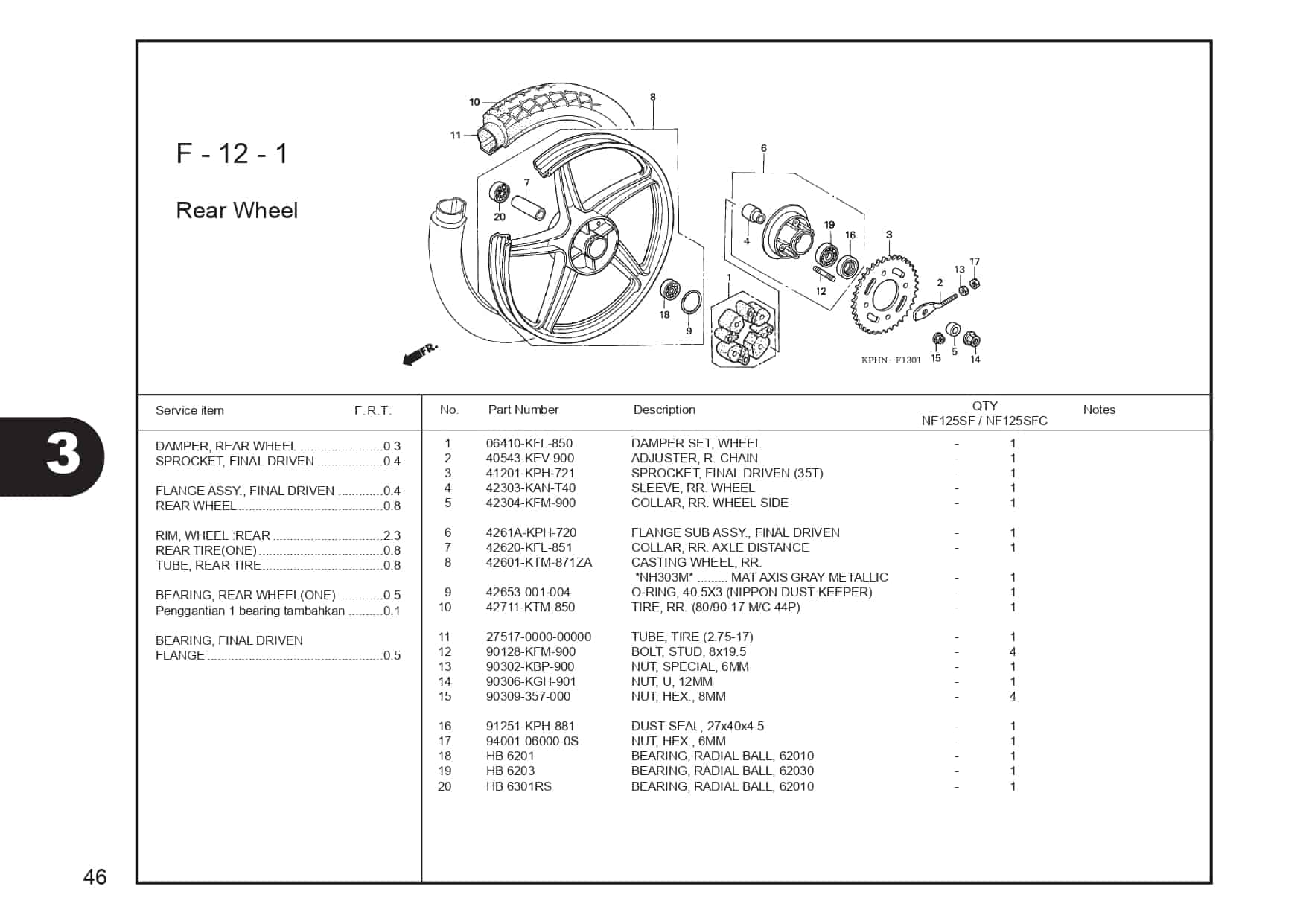

F-12-1 Rear Wheel CW – Katalog Suku Cadang Honda Supra X 125 PGM-FI

#	Informasi Produk	Visual
1	Damper, RR Wheel Set Part Number : `41241KW7882`
2	ADJUSTER R CHAIN Part Number : `40543KEV900`
3	SPROCKET DRIVEN (Y) Part Number : `41201KPH721`
3	SPROCKET DRIVEN Part Number : `41201KPH882`
4	SLEEVE, RR. WHEEL Part Number : `42303KANT40`
5	COLLAR RR WHEEL SIDE Part Number : `42304KFM900`
6	FLANGE ASS FNL DRV(Y) Part Number : `4261AKPH720`
7	COLLAR RR AXLE DISTANCE Part Number : `42620KFL851`
8	Cast Wheel RR (MA AX GY) Part Number : `42601KTM872ZA`
9	O-RING 40.5X3 Part Number : `42653001004`
10	TIRE, RR (80/90-17 FT137) Part Number : `42711KTM850`
10	TIRE RR TT (2.75-17) Part Number : `42711KPH881`
11	TUBE TIRE (2.75-17) Part Number : `2751700000NR00`
12	BOLT STUD 8X19.5 Part Number : `90128KFM900`
13	NUT SPECIAL 6MM Part Number : `90302KBP900`
14	NUT,U,12MM Part Number : `90306KGH901`
15	NUT HEX 8MM Part Number : `90309357000`
16	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KPH881`
16	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KPH901`
16	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KGH901`
16	DUST SEAL 27 X 40 X 4.5 Part Number : `91251KGH902`
17	NUT HEX 6MM Part Number : `94001060000S`
18	BEARING, RADIAL BALL, 6201 Part Number : `HB6201`
19	BEARING, RADIAL BALL, 6203 Part Number : `HB6203`
19	BEARING, RADIAL BALL, 6203 Part Number : `91054K03H03`
20	BEARING, RADIAL BALL, 6201 Part Number : `HB6301RS`
