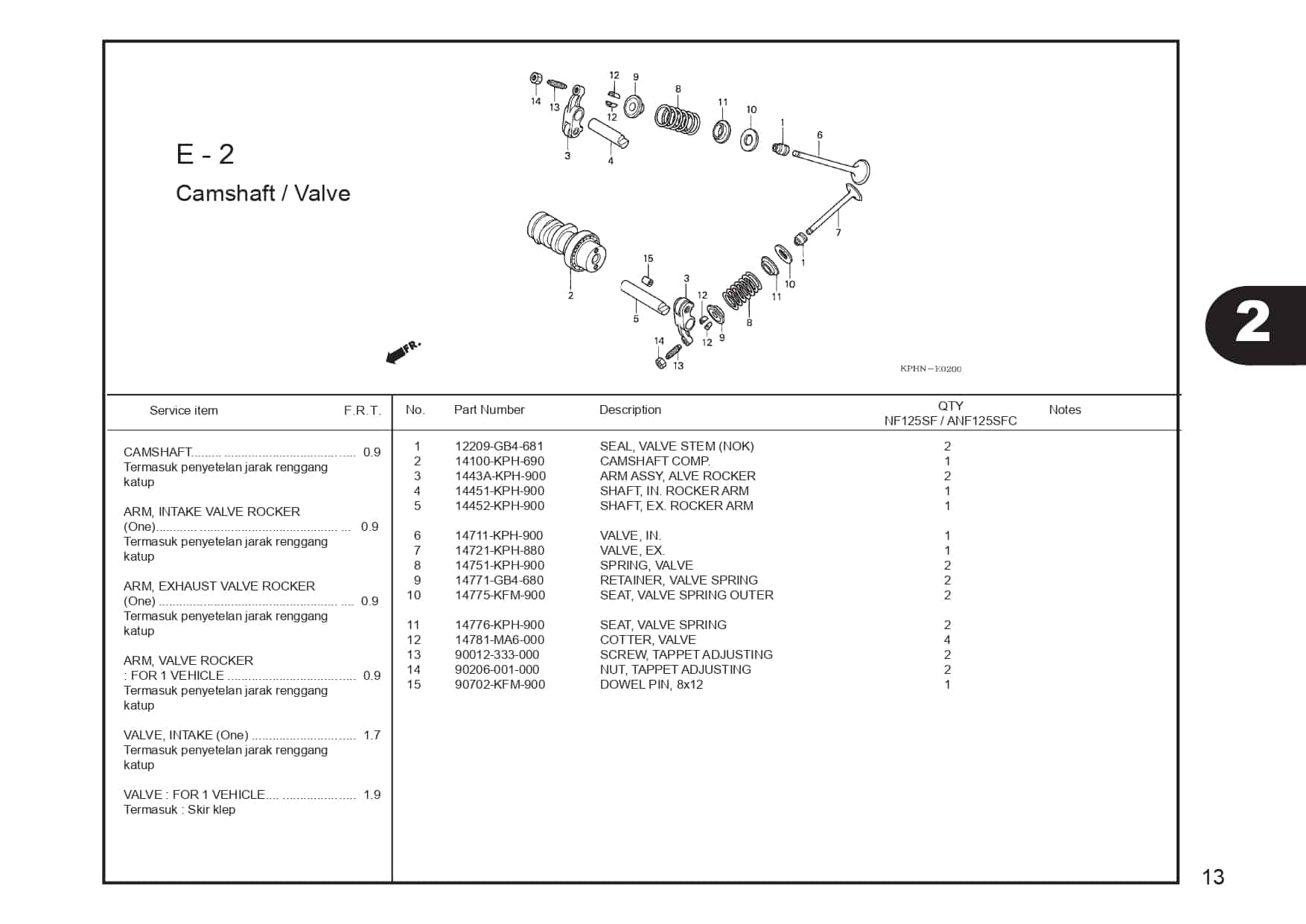

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL,VALVE STEM | 12209GB4681 |
|
| 1 | SEAL,VALVE STEM | 12209GB4682 |
|
| 2 | CAMSHAFT COMP. | 14100KPH900 |
|
| 3 | ARM ASSY VALVE ROCKER | 1443AKPH900 | - |
| 4 | SHAFT IN ROCKER ARM | 14451KPH900 |
|
| 5 | SHAFT EXH ROCKER ARM | 14452KPH900 |
|
| 6 | VALVE,INLET | 14711KPH900 |
|
| 7 | VALVE, EXHAUST | 14721KPH880 |
|
| 8 | SPRING VALVE | 14751KPH900 |
|
| 9 | RETAINER | 14771GB4680 |
|
| 10 | SEAT VALVE SPRING OUTER | 14775KFM901 |
|
| 11 | SEAT VALVE SPRING | 14776KPH900 |
|
| 12 | COTTER,VALVE | 14781MA6000 |
|
| 13 | SCREW,TAPPET ADJ | 90012333000 |
|
| 14 | NUT,TAPPET ADJUST | 90206001000 |
|
| 15 | PIN DOWEL 8X12 | 90702KFM900 |
|
