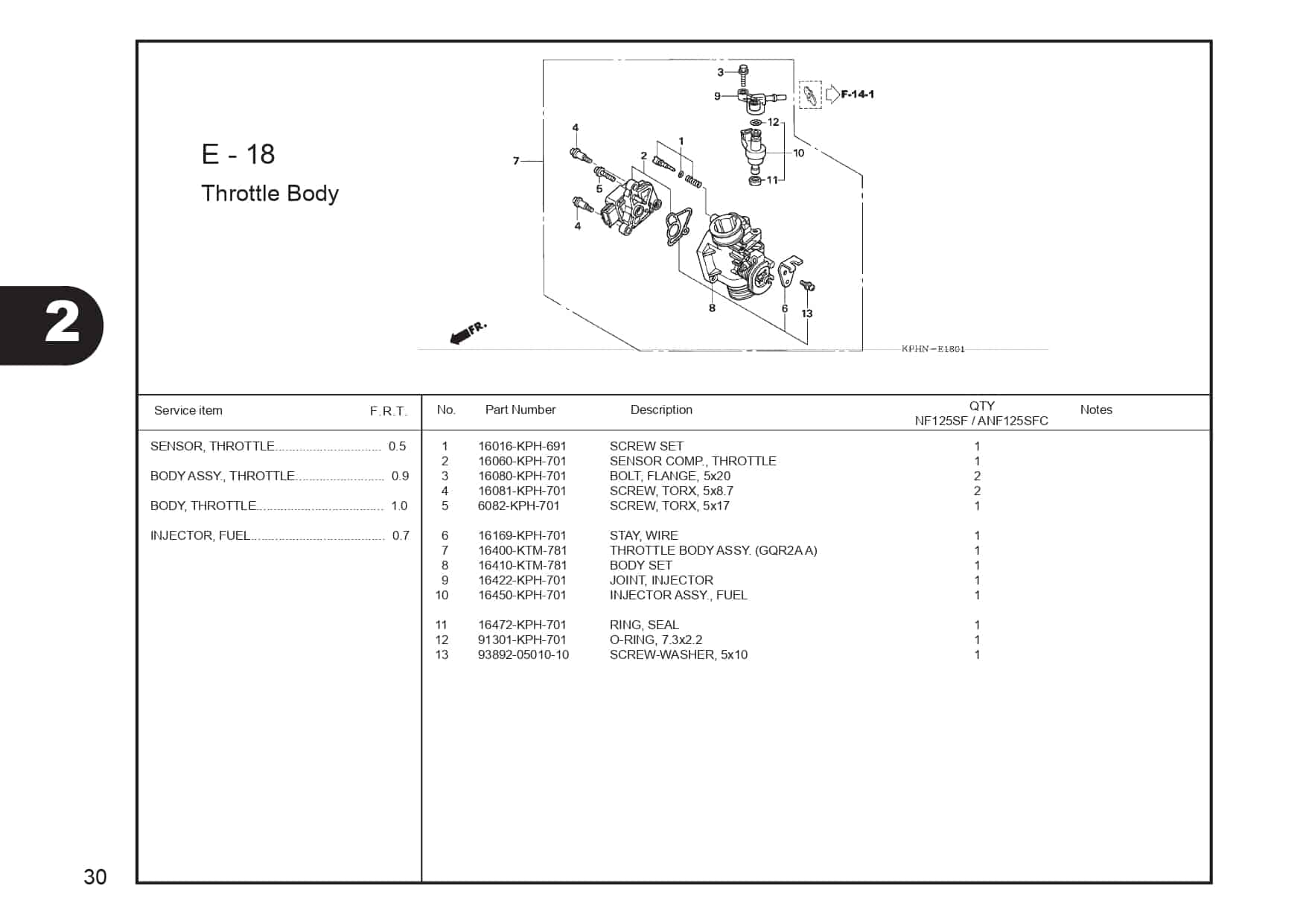

E-18 Throttle Body – Katalog Suku Cadang Honda Supra X 125 PGM-FI

#	Informasi Produk	Visual
1	SCREW SET Part Number : `16016K03H11`
2	SENSOR COMP THROTTLE Part Number : `16060KPH701`
3	BOLT,FLANGE 5X20 Part Number : `16080KPH701`
4	SCREW, TORX, 5X8.7 Part Number : `16081KPH701`
5	SCREW, TORX, 5X17 Part Number : `16082KPH701`
7	THROTTLE BODY ASSY Part Number : `16400KTM781`
8	BODY SET Part Number : `16410KTM781`
9	JOINT,INJECTOR Part Number : `16422KPH701`
10	INJECTOR ASSY,FUEL Part Number : `16450KPH701`
11	RING, SEAL Part Number : `16472KPH701`
12	O-RING 7.3X3.2 Part Number : `91301KPH701`
13	SCREW WASHER 5x10 Part Number : `938920501008`
