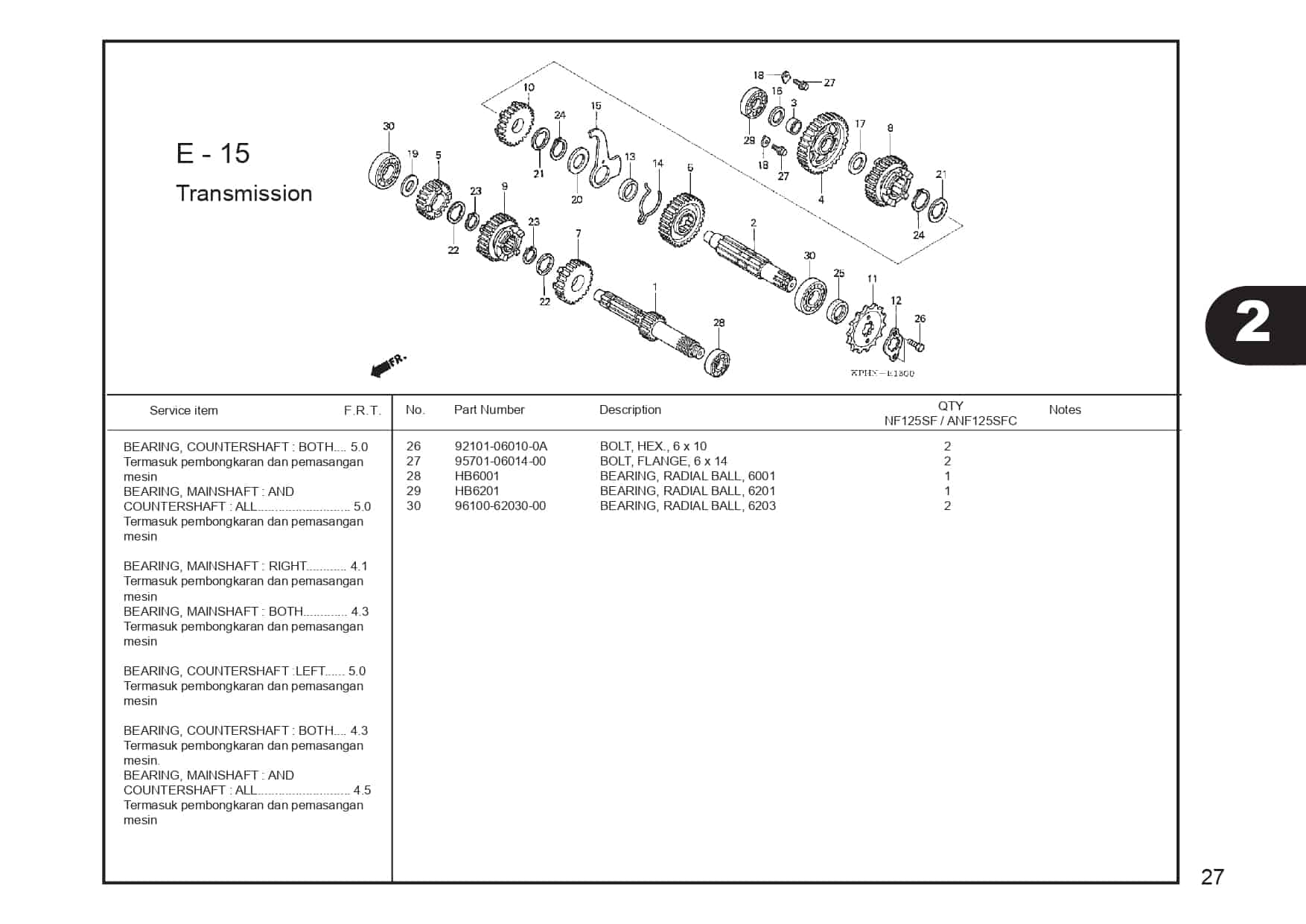

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | MAINSHAFT (14T) | 23211KPH900 |
|
| 2 | COUNTERSHAFT | 23221KPH900 |
|
| 3 | BUSH, 15MM | 23415KPH900 |
|
| 4 | GEAR C-1 35T | 23421KPH900 | - |
| 5 | GEAR M-2 20T | 23431KPH901 |
|
| 6 | GEAR C-2 31T | 23441KPH901 |
|
| 7 | GEAR M-3 20T | 23451KPH901 |
|
| 8 | GEAR C-3 23T | 23461KPH901 | - |
| 9 | GEAR M-4 26T | 23471KPH700 |
|
| 10 | GEAR C-4 24T | 23481KPH700 | - |
| 11 | SPROCKET DRIVE 14T | 23801KPH901 |
|
| 12 | PLATE FIXING | 23802GN5911 |
|
| 13 | COLLAR LOCK PLATE | 23911KPH901 |
|
| 13 | COLLAR LOCK PLATE | 23911KPH900 |
|
| 14 | SPRING CHANGE FRICTION | 24305KPH901 |
|
| 15 | PLATE DRUM LOCK | 24306KPH901 |
|
| 16 | WASHER SPECIAL 12X23 | 90412KPH901 |
|
| 17 | WASHER THRUST 15MM | 90412187000 |
|
| 18 | PLATE BEARING HOLD | 90441KA4700 |
|
| 19 | WASHER SPECIAL 12MM | 90452KGH900 |
|
| 20 | WASHER THRUST 20MM | 90452413001 |
|
| 21 | WASHER SPLINE 20X1.2 | 90461GB4771 |
|
| 22 | WASHER SPLINE 17MM | 90461115001 |
|
| 23 | CIRCLIP EXTERNAL 17MM | 90601001005 |
|
| 24 | SET RING,20MM | 90605200000 |
|
| 25 | OIL SEAL 17X30X5 | 91204KPH901 |
|
| 26 | BOLT, HEX., 6X10 | 92101060100A |
|
| 27 | BOLT FLANGE 6X14 | 957010601400 |
|
| 28 | BEARING,BALL 6001 | 91007KPH901 |
|
| 28 | BEARING,BALL | HB6001 |
|
| 28 | BEARING,BALL 6001 | 91007K41N01 |
|
| 29 | BEARING,BALL | HB6201 |
|
| 30 | BEARING BALL 6203 | 961006203001 |
|
| 30 | BEARING BALL 6203 | HB6203 |
|
