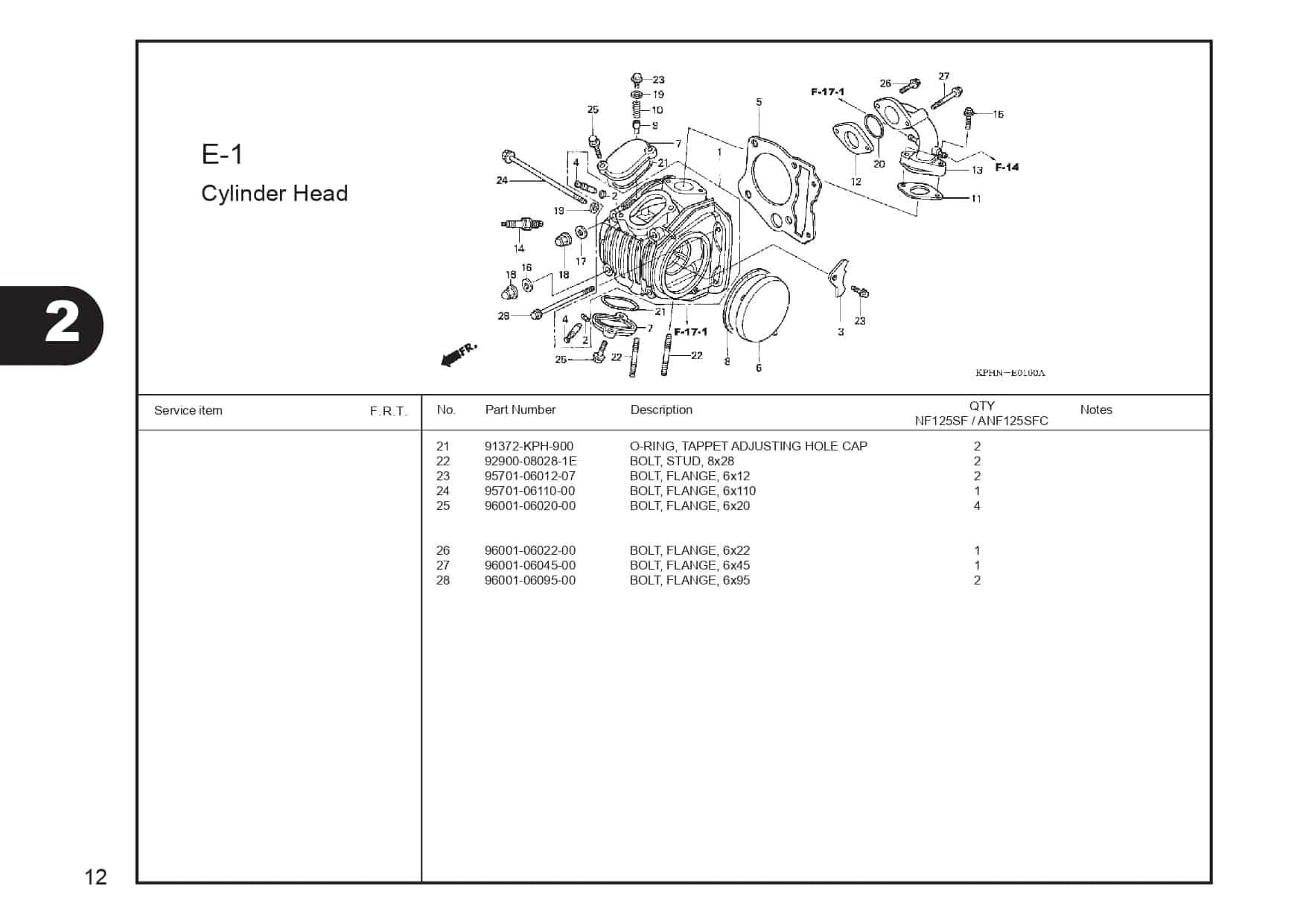

E-1 Cylinder Head – Katalog Suku Cadang Honda Supra X 125 PGM-FI

#	Informasi Produk	Visual
1	HEAD CYLINDER Part Number : `12200KPH900`
2	CLIP VALVE GUIDE Part Number : `12211KFM901`
3	PLATE STOPPER Part Number : `12211KPH900`
4	GUIDE VALVE Part Number : `12237KPH305`
5	GASKET CYLINDER HEAD Part Number : `12251KPH901`
6	COVER L CYL HEAD SIZE Part Number : `12341KPH900`
7	COVER TAPPET ADJ HOLE Part Number : `12361KPH900`
8	GASKET L CYLINDER HEAD Part Number : `12395KPH900`
9	PLUNGER CAM SETTING Part Number : `14125KPGT00`
10	SPRING PLUNGER Part Number : `14126KPGT00`
10	SPRING PLUNGER Part Number : `14126KPH901`
11	BAND ISULATOR Part Number : `16217KPH700`
12	INSULATOR ASSY, THROTTLE Part Number : `16200KPH701`
12	Insulator Carb Part Number : `16211KPH901`
13	NUT,SQUARE 5MM Part Number : `16222MV4300`
14	SPARK PLUG CPR6EA9 (NGK) Part Number : `9806786881`
14	SPARK PLUG U20EPR9 (DS) Part Number : `9806786871`
15	BOLT FLANGE 6X20 Part Number : `90004GHB650`
16	WASHER SEALING 8MM Part Number : `90441ME9000`
17	WASHER SEALING 8MM Part Number : `90441286001`
19	WASHER SEAL 12MM Part Number : `90461357000`
20	O-RING, 29 X 2.4 Part Number : `91304KPH700`
21	O-RING, TAPP ADJ Part Number : `91372KPH900`
22	BOLT,STUD 8X28 Part Number : `92900080281E`
23	BOLT FLANGE 6X12 Part Number : `957010601207`
24	BOLT FLANGE 6X110 Part Number : `957010611000`
25	BOLT FLANGE 6X20 Part Number : `960010602000`
26	BOLT FLANGE 6X22 Part Number : `960010602200`
27	BOLT FLANGE 6X45 Part Number : `960010604500`
28	BOLT,FLANGE,6X95 Part Number : `960010609500`
