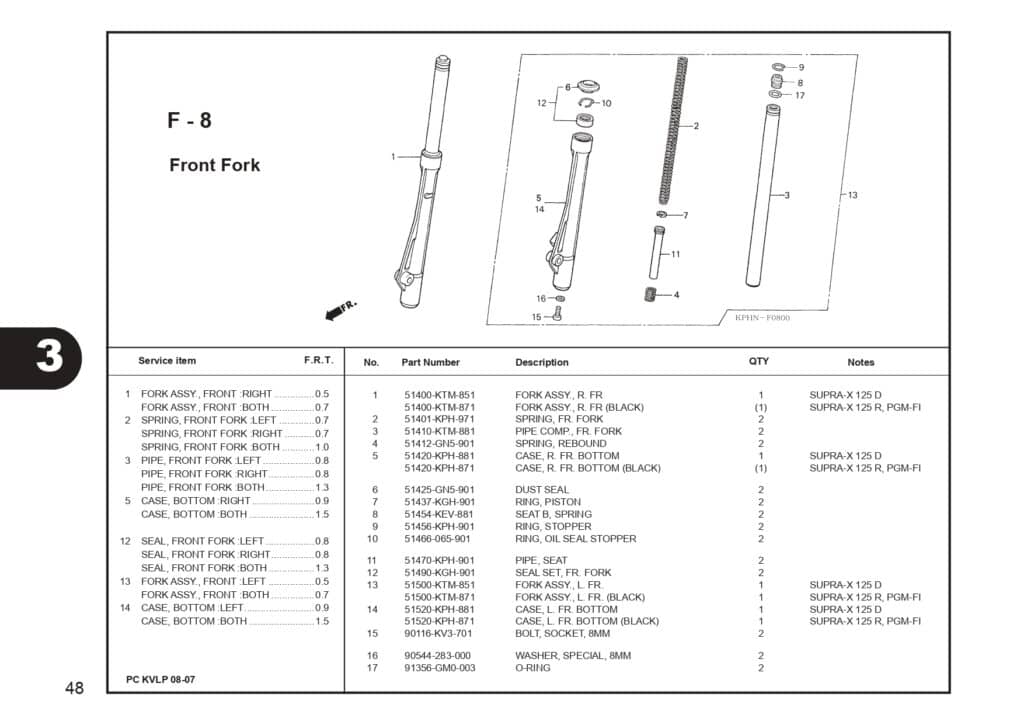

F-8 Front Fork – Katalog Suku Cadang Honda Supra X 125 KVL

#	Informasi Produk	Visual
1	Fork Assy R FR Part Number : `51400KTM850ZB`
1	Fork Assy R FR Part Number : `51400KPH881`
2	SPRING FR FORK Part Number : `51401KPH971`
3	PIPE COMP FR FORK Part Number : `51410KTM881`
4	SPG REBOUND Part Number : `51412GN5901`
5	CASE R FR BOTTOM Part Number : `51420KPH881`
5	51420KPH871 Part Number : `51420KPH871`
6	DUST SEAL FR FORK Part Number : `51425GN5901`
7	RING,PISTON Part Number : `51437KGH901`
8	SEAT B SPRING Part Number : `51454KEV881`
9	RIMG,STOPPER Part Number : `51456KPH901`
10	RING OIL SEAL Part Number : `51466065901`
11	PIPE,SEAT Part Number : `51470KPH901`
12	SEAL SET FR FORK Part Number : `51490KGH901`
12	SEAL SET FR FORK Part Number : `51490KGH902`
13	Fork Assy L FR Part Number : `51500KTM850ZB`
13	Fork Assy L FR Part Number : `51500KPH881`
14	CASE L FR BOTTOM Part Number : `51520KPH881`
14	51520KPH871 Part Number : `51520KPH871`
15	BOLT,SOCKET 8MM Part Number : `90116KV3701`
16	WASHER SPECIAL (8MM) Part Number : `90544283000`
17	O RING Part Number : `91356GM0003`
