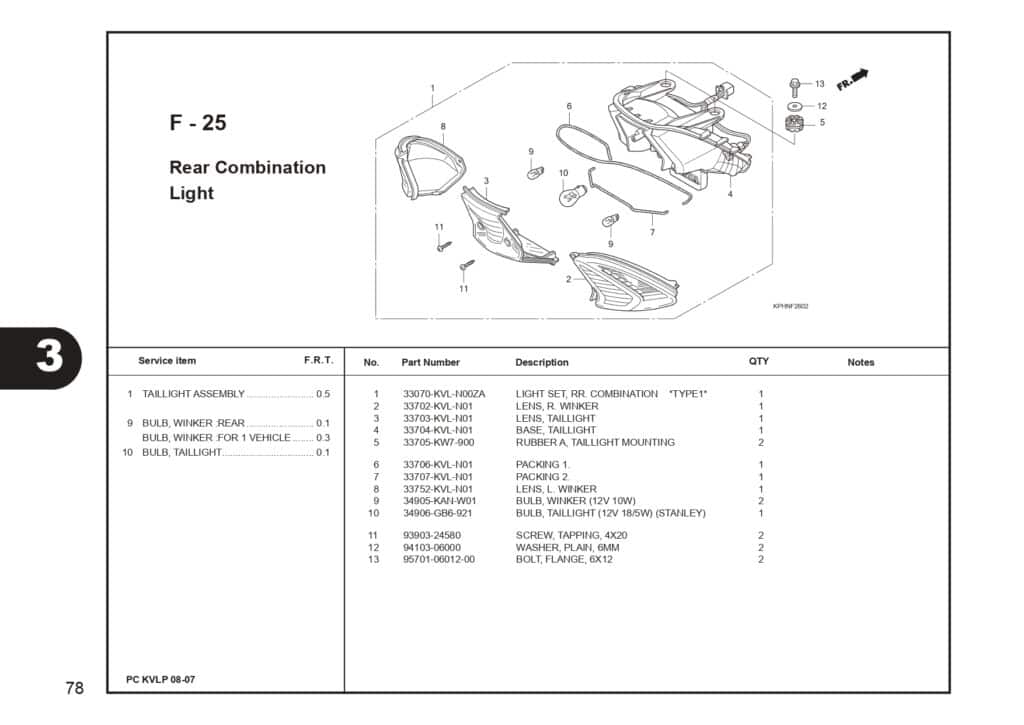

F-25 Rear Combination Light – Katalog Suku Cadang Honda Supra X 125 KVL
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
33070KVLN00ZA |
33070KVLN00ZA |
-
|
| 2 |
LENS WINKER R |
33702KVLN01 |
-
|
| 3 |
LENS COMB TAILLIGHT |
33703KVLN01 |
|
| 4 |
BASE COMP TAILLIGHT |
33704KVLN01 |
-
|
| 5 |
RUBBER TAILLIGHT |
33705KW7900 |
|
| 6 |
33706KVLN01 |
33706KVLN01 |
-
|
| 7 |
33707KVLN01 |
33707KVLN01 |
-
|
| 8 |
LENS WINKER L |
33752KVLN01 |
-
|
| 9 |
WB BULB (12V10W-YLT13) |
34905KANW01 |
|
| 10 |
BULB TAILLIGHT |
34906GB6921 |
|
| 11 |
SCREW TAPPING 4X20 |
9390324580 |
|
| 12 |
WASHER PLAIN 6MM |
9410306000 |
|
| 13 |
BOLT FLANGE 6X12 |
957010601200 |
|
