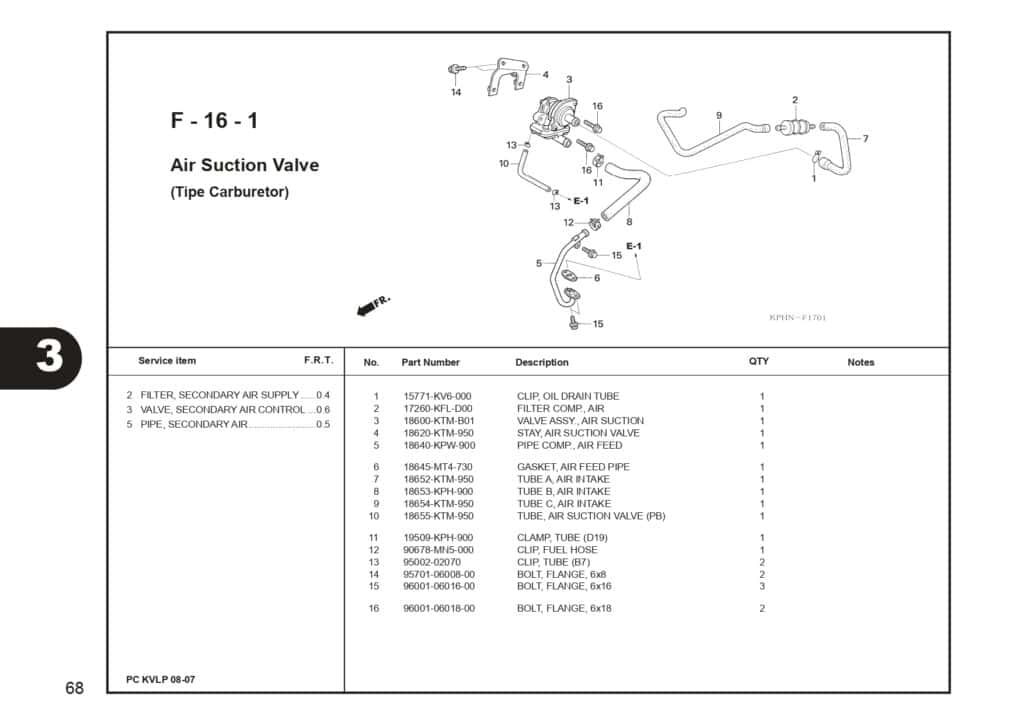

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CLIP OIL DRAIN TUBE | 15771KV6000 |
|
| 2 | FILTER COMP,AIR | 17260KFLD00 |
|
| 3 | 18600KTMB02 | 18600KTMB01 | - |
| 4 | STAY AIR SUCTION VALVE | 18620KTM950 |
|
| 5 | PIPE COMP AIR FEED | 18640KPW900 |
|
| 6 | GASKET AIR FEED PIPE | 18645MT4730 |
|
| 7 | TUBE A AI | 18652KTM950 | - |
| 8 | TUBE B A1 | 18653KPH900 | - |
| 9 | TUBE C AI | 18654KTM950 | - |
| 10 | TUBE PB ASV | 18655KTM950 | - |
| 11 | CLAMP TUBE D 19 | 19509KPH900 |
|
| 12 | CLIP FUEL HOSE | 90678MN5000 |
|
| 13 | 9500202071 | 9500202070 |
|
| 14 | BOLT FLANGE 6X8 | 957010600800 |
|
| 15 | BOLT FLANGE SH 6X16 | 960010601600 |
|
| 16 | BOLT FLANGE SH 6X18 | 960010601800 |
|
