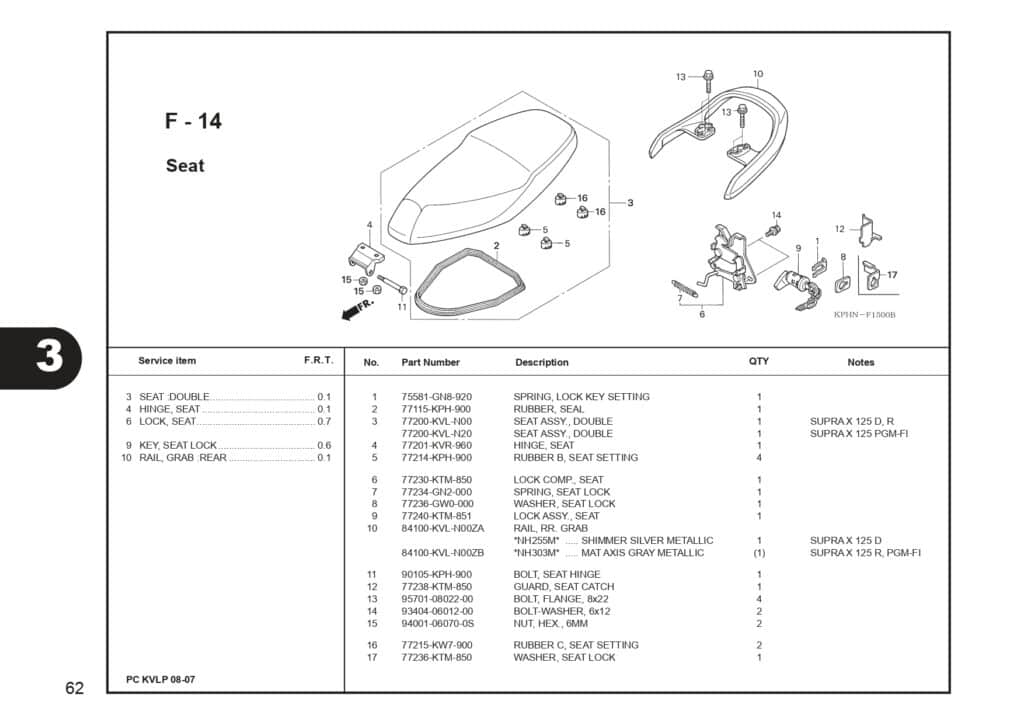

F-14 Seat – Katalog Suku Cadang Honda Supra X 125 KVL

#	Informasi Produk	Visual
1	SPRING LOCK KEY Part Number : `75581GN8920`
2	42 Part Number : `77115KPH900`
3	SEAT ASSY DOUBLE Part Number : `77200KVLN00`
3	SEAT ASSY DOUBLE Part Number : `77200KVLN20`
4	HINGE SEAT Part Number : `77201KVR960`
5	RUBBER B SEAT SET Part Number : `77214KPH900`
6	LOCK COMP. SEAT Part Number : `77230KTM850`
7	SPRING SEAT LOCK Part Number : `77234GN2000`
8	WASHER SEAT LOCK Part Number : `77236GW0000`
9	KEY SEAT LOCK Part Number : `77240KTM851`
10	RAIL RR GRAB MA AX GY Part Number : `84100KVLN00ZA`
10	RAIL RR GRAB SH SL MT Part Number : `84100KVLN00ZB`
11	BOLT SEAT HINGE Part Number : `90105KPH900`
12	GUARD SEAT CATCH Part Number : `77238KTM850`
13	BOLT FLANGE 8X22 Part Number : `957010802200`
14	BOLT WASHER 6X12 Part Number : `934040601200`
15	NUT HEX 6MM Part Number : `94001060700S`
16	RUBR.C SEAT SET Part Number : `77215KW7900`
17	WASHER SEAT LOCK Part Number : `77236KTM850`
