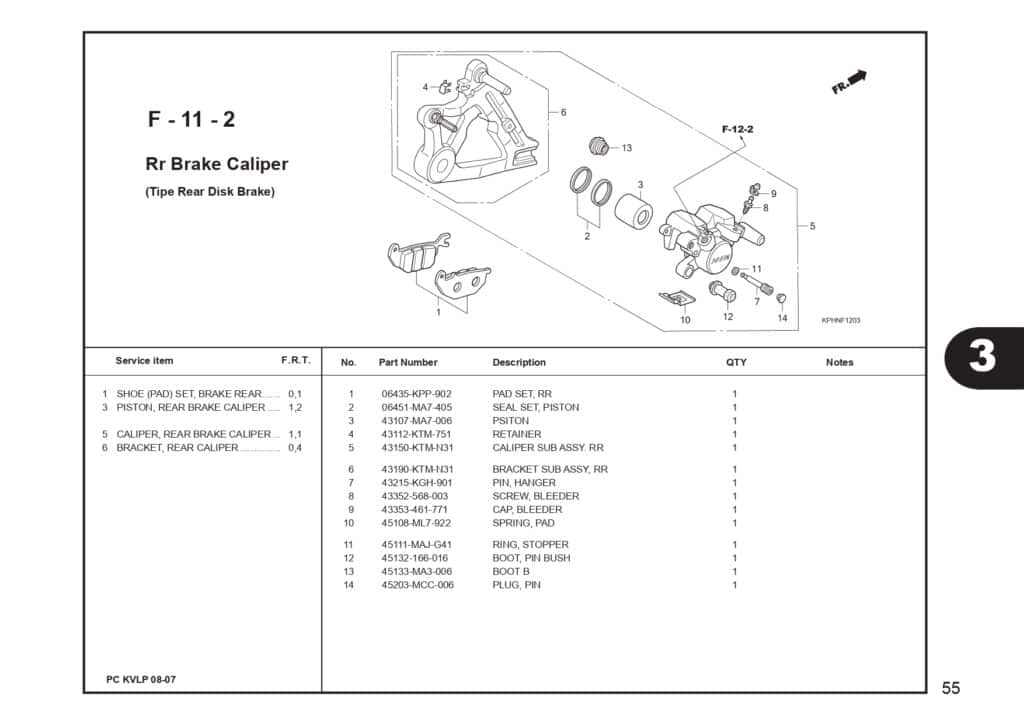

F-11-2 Rr Brake Caliper – Katalog Suku Cadang Honda Supra X 125 KVL

#	Informasi Produk	Visual
1	PAD SET RR Part Number : `06435KPP902`
2	SEAL SET PISTON Part Number : `06451MA7405`
3	PISTON Part Number : `43107MA7006`
4	RETAINER Part Number : `43112KTM751`
5	CALIPER RR SUB ASSY Part Number : `43150KTMN31`
6	BRACKET SUB ASSY RR Part Number : `43190KTMN31`
7	PIN HANGER Part Number : `43215KGH901`
8	SCREW,BLEEDER Part Number : `43352568003`
9	CAP,BLEEDER Part Number : `43353461772`
10	SPRING,PAD (NISSIN) Part Number : `45108ML7922`
11	O-RING,2.5X1.5 Part Number : `45111MAJG41`
12	BUSH PIN Part Number : `45132166016`
13	BOOT B,PIN Part Number : `45133MA3007`
14	PLUG,PIN Part Number : `45203MCC006`
