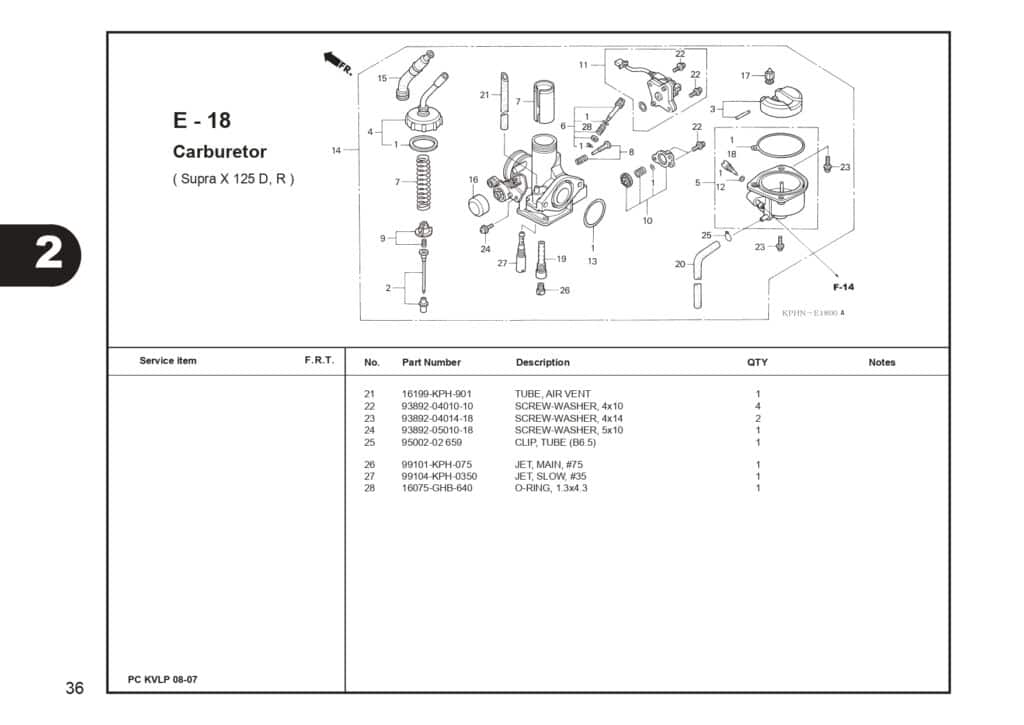

E-18 Carburetor – Katalog Suku Cadang Honda Supra X 125 KVL

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 16010KPH902 16010KPH902 -
2 16012KTM851 16012KTM851 -
3 FLOAT SET 16013KPG901 FLOAT SET
4 16014KPH901 16014KPH901 -
5 16015KPH901 16015KPH901 -
6 SCREW SET 16016KPH901 -
7 VALVE SET, THROTTLE 16022KPH742 -
8 SCREW SET 16028KPH901 -
9 PLATE SET, VALVE 16037KPH901 PLATE SET, VALVE
10 VALVE SET, AIR CUT 16048KPH901 VALVE SET, AIR CUT
11 SWTCH ASSY, THROTTLE 16060KPH901 -
12 O-RING,1.3X4.3 16075GHB640 O-RING,1.3X4.3
13 16075KPH901 16075KPH901 -
14 CARBURETOR ASSY 16100KTM851 -
15 CAP,RUBBER 16118GB4003 -
16 CAP,DUST 16148141881 CAP,DUST
17 VALVE COMP,FLOAT LBL 16155883005 VALVE COMP,FLOAT LBL
18 GASKET FLOAT CHAMBER 16163GBG960 -
19 HOLDER, NEEDLE JET 16165KPH901 -
20 TUBE 16199435771 -
21 TUBE, AIRVENT 16199KPH901 -
22 SCREW - WASH., 4X10 938920401010 -
23 SCREW - WASH, 4X4 938920401418 -
24 938920501008 938920501018 -
25 9500202659 9500202659 9500202659
26 99101KPH075 99101KPH075 -
27 99104KPH0350 99104KPH0350 -
28 O-RING,1.3X4.3 16075GHB640 O-RING,1.3X4.3
