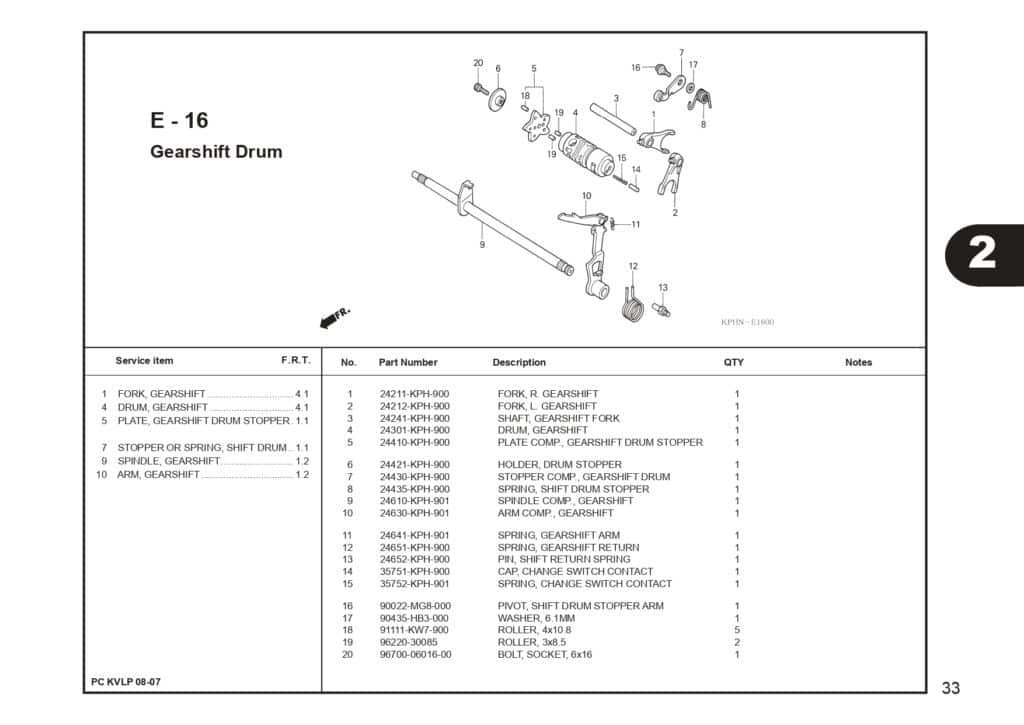

E-16 Gearshift Drum – Katalog Suku Cadang Honda Supra X 125 KVL

#	Informasi Produk	Visual
1	FORK R GEARSHIFT Part Number : `24211KPH900`
2	FORK L GEARSHIFT Part Number : `24212KPH900`
3	SHAFT GEAR SHIFT FORK Part Number : `24241KPH900`
4	DRUM GEARSHIFT Part Number : `24301KPH900`
5	PLATE COMP SHIFT DRUM STO Part Number : `24410KPH900`
6	HOLDER DRUM STOPPER Part Number : `24421KPH900`
7	STOPPER COMP GEAR SHIFT Part Number : `24430KPH900`
8	SPRING SHIFT DRUM STOPPER Part Number : `24435KPH900`
9	SPINDLE COMP GEAR SHIFT Part Number : `24610KPH901`
10	ARM COMP GEAR SHIFT Part Number : `24630KPH901`
11	SPRING GEAR SHIFT ARM Part Number : `24641KPH901`
12	SPRING GEAR SHIFT RETURN Part Number : `24651KPH900`
13	PIN SHIFT RETURN SPRING Part Number : `24652KPH900`
14	CAP CONTACT CHANGE SW Part Number : `35751KPH900`
15	SPRINGCONTACTCHANGESW Part Number : `35752KPH900`
16	PIVOT,SFT DRUM STOP.ARM Part Number : `90022MG8000`
17	WASHER 6.1MM Part Number : `90435HB3000`
18	ROLLER 4X10.8 Part Number : `91111KW7900`
19	ROLLER,3X8.5 Part Number : `9622030085`
20	BOLT SOCKET 6X16 Part Number : `967000601600`
