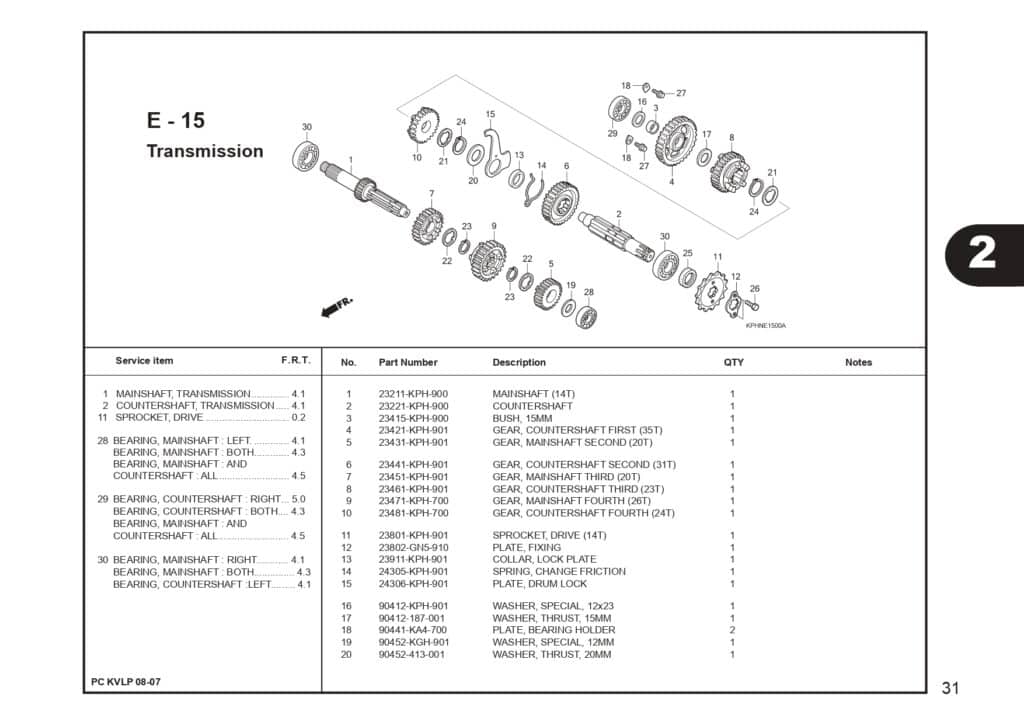

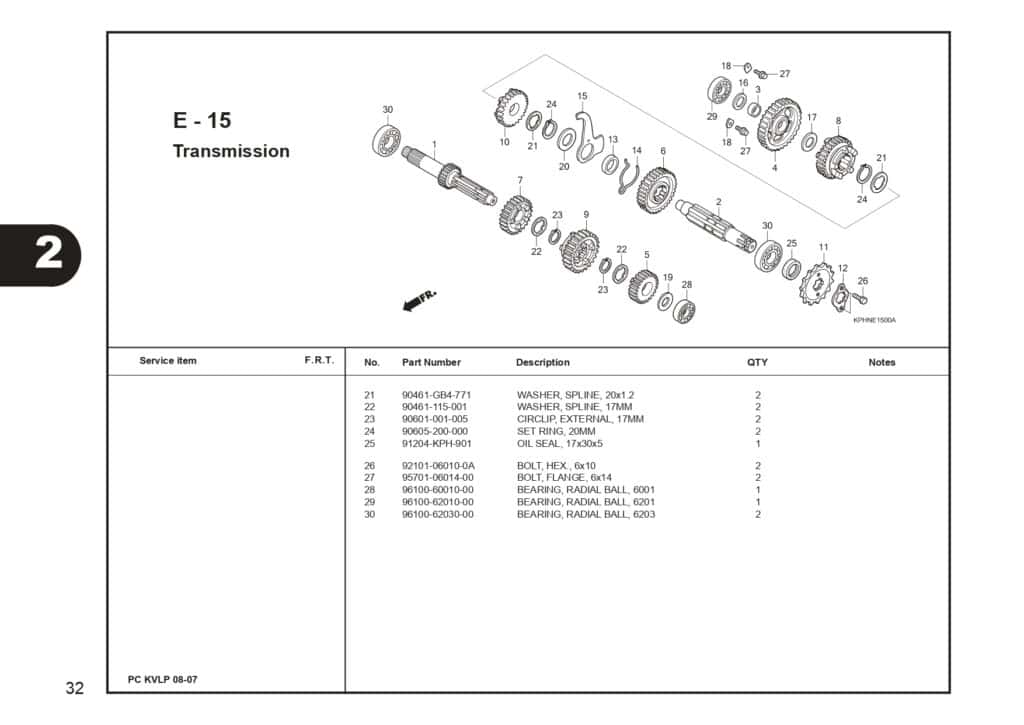

E-15 Transmission – Katalog Suku Cadang Honda Supra X 125 KVL

#	Informasi Produk	Visual
1	MAINSHAFT (14T) Part Number : `23211KPH900`
2	COUNTERSHAFT Part Number : `23221KPH900`
3	BUSH, 15MM Part Number : `23415KPH900`
4	GEAR C-1 35T Part Number : `23421KPH901`
5	GEAR M-2 20T Part Number : `23431KPH901`
6	GEAR C-2 31T Part Number : `23441KPH901`
7	GEAR M-3 20T Part Number : `23451KPH901`
8	GEAR C-3 23T Part Number : `23461KPH901`
9	GEAR M-4 26T Part Number : `23471KPH700`
10	GEAR C-4 24T Part Number : `23481KPH700`
11	SPROCKET DRIVE 14T Part Number : `23801KPH901`
12	PLATE FIXING Part Number : `23802GN5911`
13	COLLAR, LOCK PLATE Part Number : `23911KPH900`
14	SPRING CHANGE FRICTION Part Number : `24305KPH901`
15	PLATE DRUM LOCK Part Number : `24306KPH901`
16	WASHER, SPECIAL, 12X23 Part Number : `90412KPH900`
17	WASHER THRUST 15MM Part Number : `90412187000`
18	PLATE BEARING HOLD Part Number : `90441KA4700`
19	WASHER SPECIAL 12MM Part Number : `90452KGH900`
20	WASHER THRUST 20MM Part Number : `90452413001`
21	WASHER SPLINE 20X1.2 Part Number : `90461GB4771`
22	WASHER SPLINE 17MM Part Number : `90461115001`
23	CIRCLIP EXTERNAL 17MM Part Number : `90601001005`
24	SET RING,20MM Part Number : `90605200000`
25	OIL SEAL, 17X30X5 Part Number : `91204KPH901`
26	BOLT, HEX., 6X10 Part Number : `92101060100A`
27	BOLT FLANGE 6X14 Part Number : `957010601400`
28	BRG.RAD N/COM Part Number : `961006001000`
29	BEARING RADIAL BALL 6201 Part Number : `HB6201`
30	BEARING BALL 6203R Part Number : `961006203001`
30	BEARING BALL 6203R Part Number : `HB6203`
