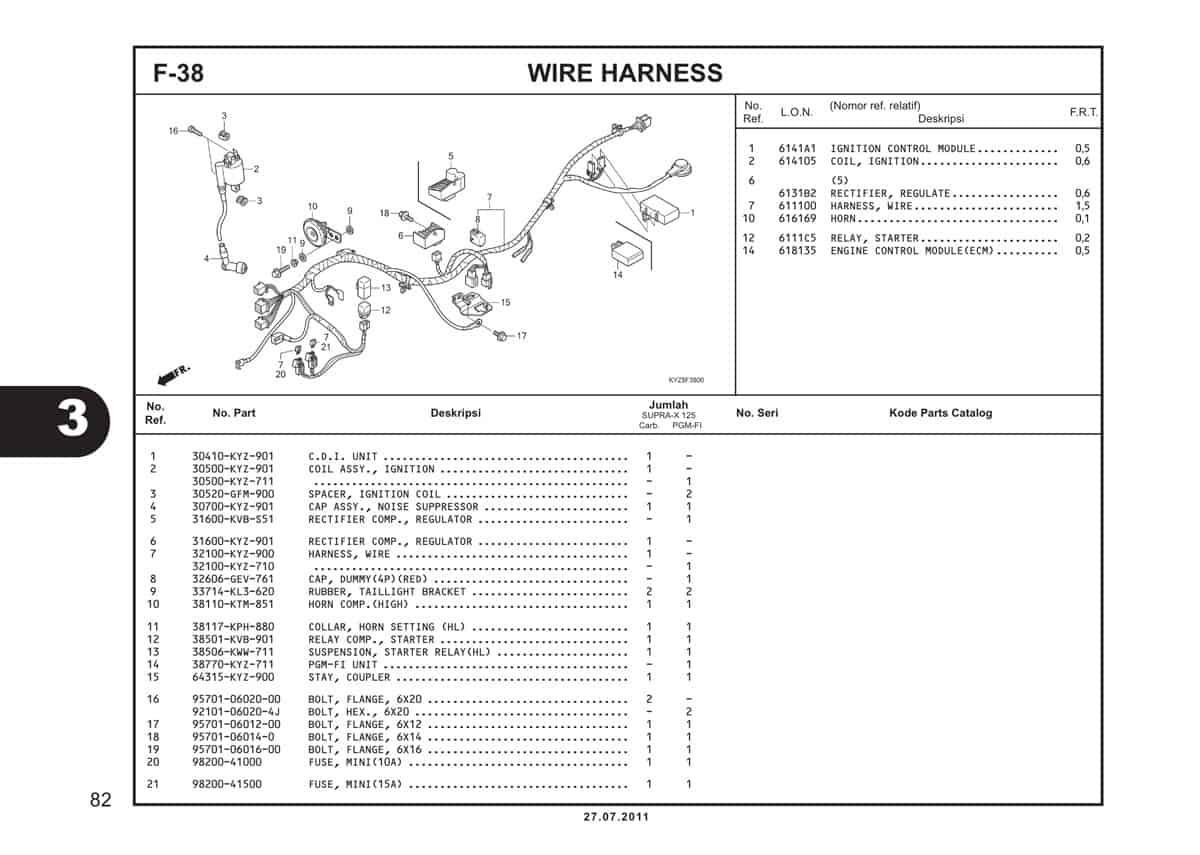

F38 – Wire Harness – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	CDI UNIT Part Number : `30410KYZ901`
2	COIL ASSY IGN Part Number : `30500KYZ901`
2	COIL ASSY IGN Part Number : `30500KYZ711`
3	SPACER IGN COIL Part Number : `30520GFM900`
4	CAP ASSY NOISE SUPPRESSOR Part Number : `30700KYZ901`
5	REGULATOR REC COMP Part Number : `31600KVBS51`
6	REGULATOR REC COMP Part Number : `31600KYZ901`
7	HARNESS WIRE Part Number : `32100KYZ900`
7	HARNESS WIRE Part Number : `32100KYZ710`
8	DUMMY,WPC 4P 090 M (RED) Part Number : `32606GEV761`
9	RUBTAIL/LT BRKT. Part Number : `33714KL3620`
10	HORN COMP (HIGH) Part Number : `38110KTM851`
11	COLLAR HORN SETTING Part Number : `38117KPH880`
12	RELAY COMP,START Part Number : `38501KVB901`
13	SUSPENSION START RELAY Part Number : `38506KWW711`
14	PGM-FI UNIT Part Number : `38770KYZ711`
15	STAY COUPLER Part Number : `64315KYZ900`
16	BOLT FLANGE 6X20 Part Number : `957010602000`
16	BOLT HEX 6X20 Part Number : `92101060204J`
17	BOLT FLANGE 6X12 Part Number : `957010601200`
18	BOLT FLANGE 6X14 Part Number : `957010601400`
19	BOLT FLANGE 6X16 Part Number : `957010601600`
20	FUSE, MINI(10A) Part Number : `9820041000`
21	FUSE F (15A) Part Number : `9820041500`
