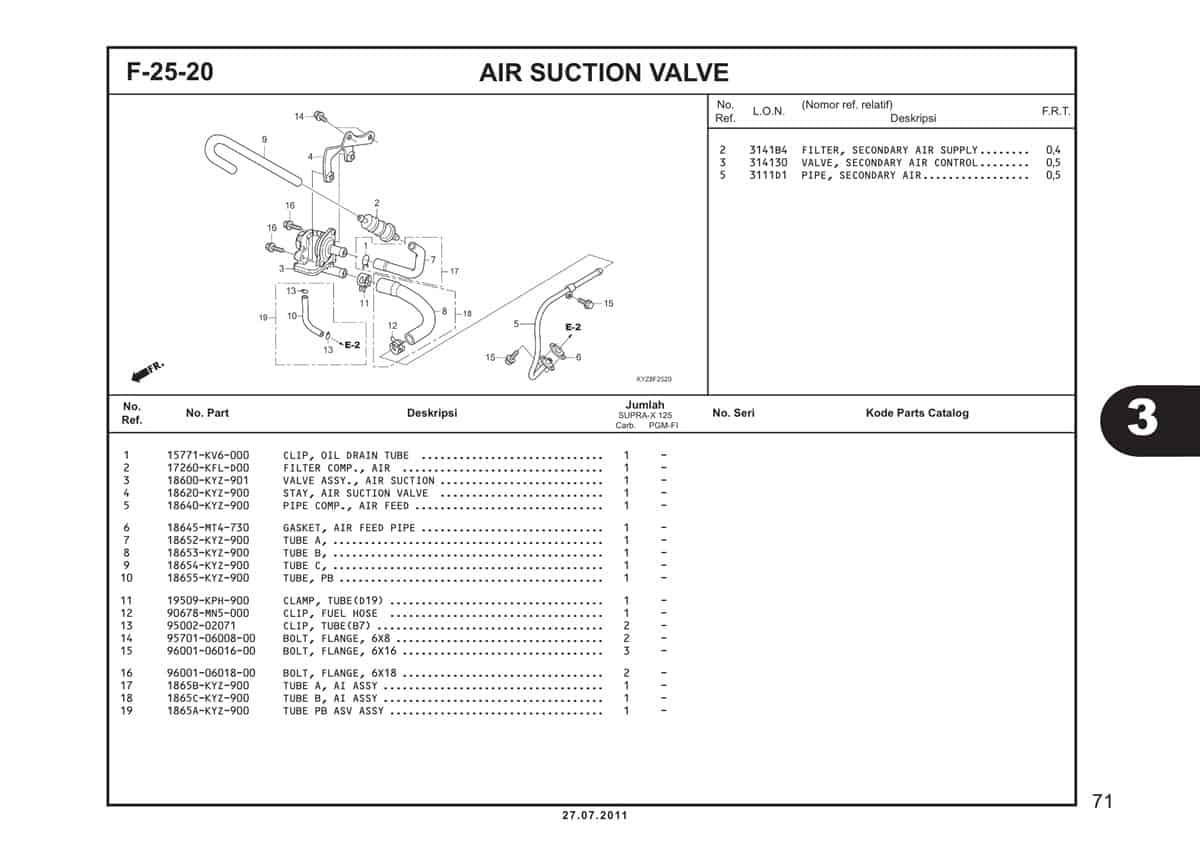

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CLIP OIL DRAIN TUBE | 15771KV6000 |
|
| 2 | FILTER COMP,AIR | 17260KFLD00 |
|
| 3 | VALVE ASSY AIR SUCTION | 18600KYZ901 | - |
| 4 | STAY AIR SUCTION VALVE | 18620KYZ900 | - |
| 5 | PIPE COMP AIR FEED | 18640KYZ900 | - |
| 6 | GASKET AIR FEED PIPE | 18645MT4730 |
|
| 7 | 18652KYZ900 | 18652KYZ900 | - |
| 8 | 18653KYZ900 | 18653KYZ900 | - |
| 9 | TUBE C(AI) | 18654KYZ900 | - |
| 10 | 18655KYZ900 | 18655KYZ900 | - |
| 11 | CLAMP TUBE D 19 | 19509KPH900 |
|
| 12 | CLIP FUEL HOSE | 90678MN5000 |
|
| 13 | CLIP B7 TUBE | 9500202071 |
|
| 14 | BOLT FLANGE 6X8 | 957010600800 |
|
| 15 | BOLT FLANGE SH 6X16 | 960010601600 |
|
| 16 | BOLT FLANGE SH 6X18 | 960010601800 |
|
| 17 | TUBE A AI ASSY | 1865BKYZ900 | - |
| 18 | TUBE B AI ASSY | 1865CKYZ900 | - |
| 19 | TUBE PB ASV ASSY | 1865AKYZ900 | - |
