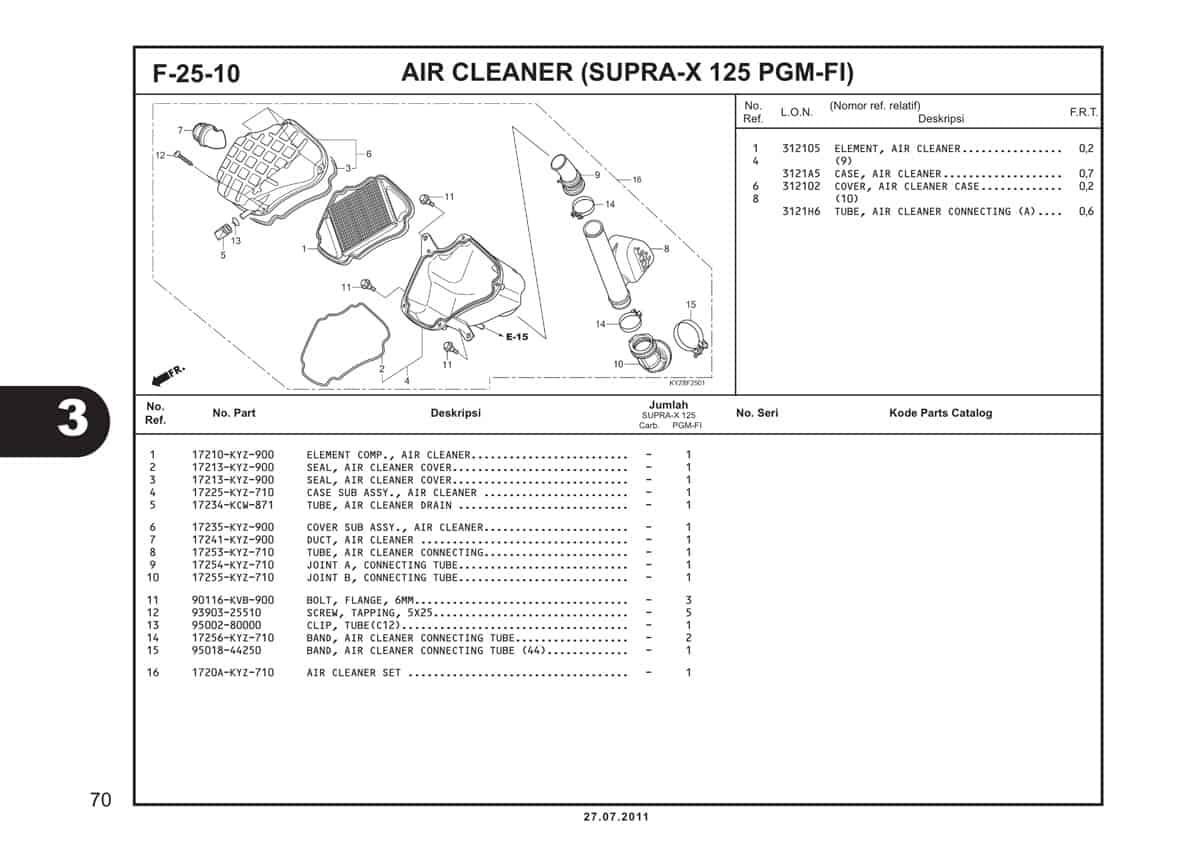

F25 – 10 – Air Cleaner – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	ELEMENT COMP, AIR/C Part Number : `17210KYZ900`
2	SEAL, AIR CLEANER COVER Part Number : `17213KYZ900`
3	SEAL, AIR CLEANER COVER Part Number : `17213KYZ900`
4	CASE SUB ASSY., AIR CLEANER Part Number : `17225KYZ710`
5	TUBE A/C DRAIN Part Number : `17234KCW871`
6	COVER SUB ASSY., AIR CLEANER Part Number : `17235KYZ900`
7	DUCT, AIR CLEANER Part Number : `17241KYZ900`
8	TUBE, AIR CLEANER CONNECTING Part Number : `17253KYZ710`
9	JOINT A, CONNECTING TUBE Part Number : `17254KYZ710`
10	JOINT B, CONNECTING TUBE Part Number : `17255KYZ710`
11	BOLT FLANGE 6MM Part Number : `90116KVB900`
12	SCREW TAPPING 5X25 Part Number : `9390325510`
13	CLIP, TUBE(C12) Part Number : `9500280000`
14	BAND, A/C CONNECTING TUBE Part Number : `17256KYZ710`
15	BAND A/C CONNECTING TUBE(44) Part Number : `9501844250`
16	AIR CLEANER SET Part Number : `1720AKYZ710`
