F23 – 10 – Body Cover – Katalog Honda Supra X 125 Helm-In KYZ

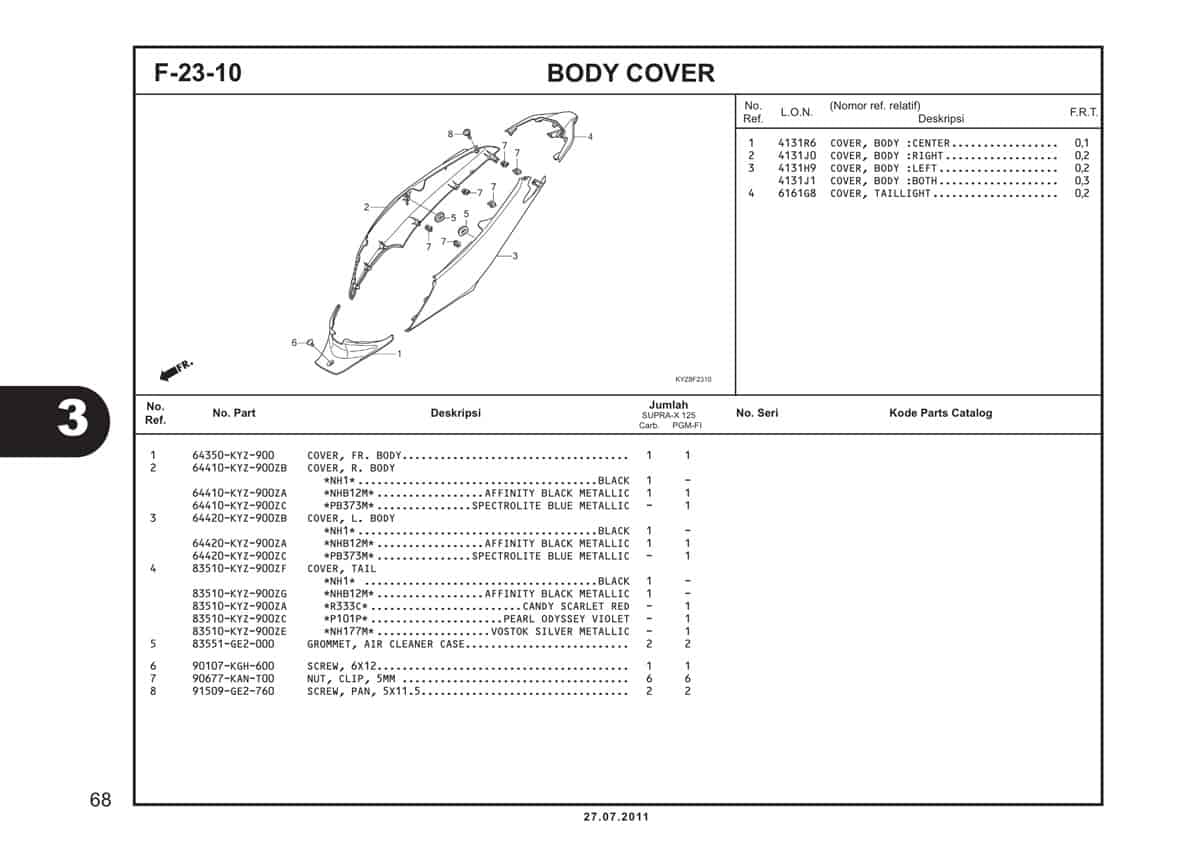

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER FR BODY 64350KYZ900 COVER FR BODY
2 COVER R BODY(BLK) 64410KYZ900ZB -
2 COVER R BODY(AF BK MT) 64410KYZ900ZA -
2 COVER R BODY(SL BL MT) 64410KYZ900ZC -
3 COVER L BODY(BLK) 64420KYZ900ZB -
3 COVER L BODY(AF BK MT) 64420KYZ900ZA COVER L BODY(AF BK MT)
3 COVER L BODY(SL BL MT) 64420KYZ900ZC COVER L BODY(SL BL MT)
4 COVER TAIL(BLK) 83510KYZ900ZF -
4 COVER TAIL(AF BK MT) 83510KYZ900ZG -
4 COVER TAIL(CN SC RD) 83510KYZ900ZA -
4 COVER TAIL(PR OD VL) 83510KYZ900ZC -
4 COVER TAIL(VO SL MT) 83510KYZ900ZE COVER TAIL(VO SL MT)
5 GROMMET A/C 83551GE2000 GROMMET A/C
6 SCREW 6X12 90107KGH600 SCREW 6X12
7 NUT CLIP 5MM. 90677KANT00 NUT CLIP 5MM.
8 SCREW PAN 5X11.5 91509GE2760 SCREW PAN 5X11.5
