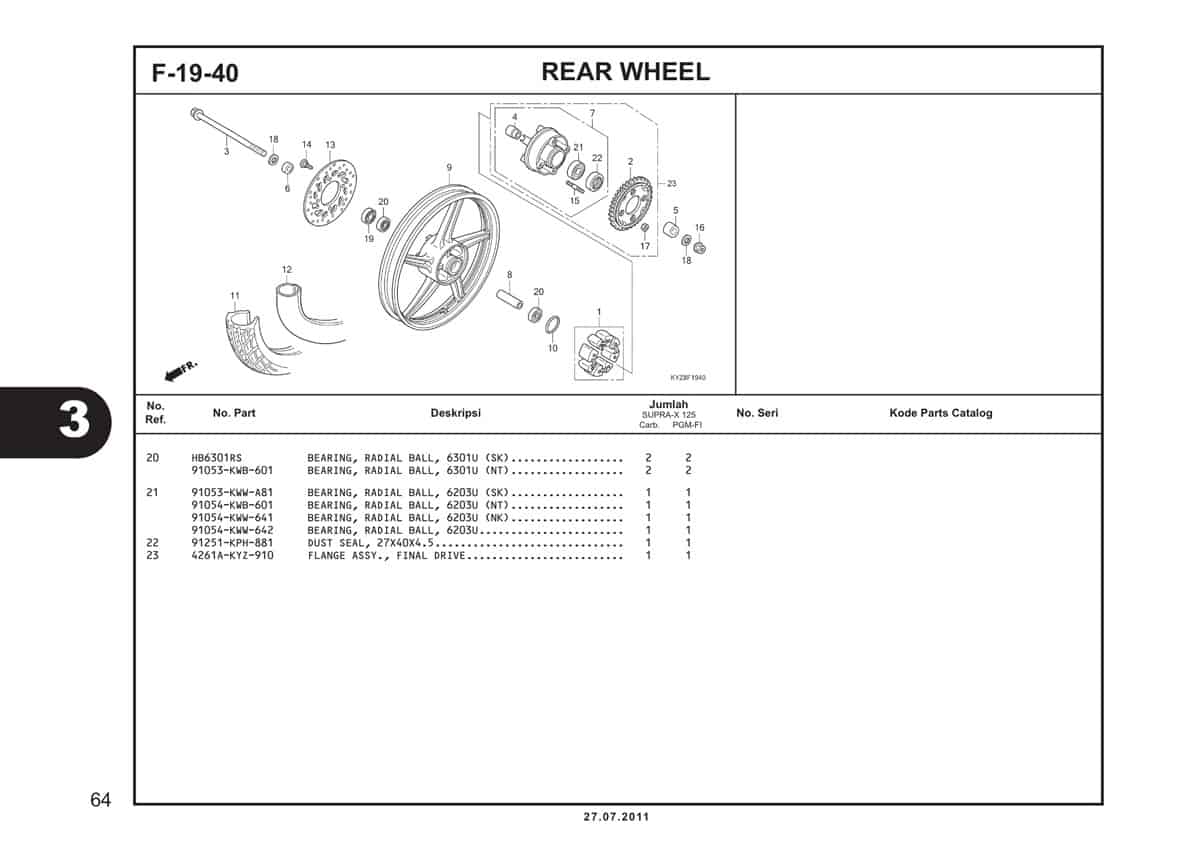

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 41241KW7882 | 41241KW7881 |
|
| 1 | Damper, RR Wheel Set | 41241KW7882 |
|
| 2 | SPRKT CAM FINAL DRIVE(36T) | 41200KYZ710 |
|
| 2 | SPROCKET COMP., FINAL DRIVEN | 41200KYZ901 | - |
| 3 | AXLE RR WHEEL | 42301KPGT00 |
|
| 4 | SLEEVE RR WHEEL | 42303KBA901 |
|
| 5 | COLLAR RR WHEEL SIDE | 42304KFM900 |
|
| 6 | COLLAR R RR WHEEL SIDE | 42313KTM750 |
|
| 7 | 42615KYZ910 | 42615KYZ910 | - |
| 8 | COLLAR RR AXLE DISTANCE | 42620KW7881 |
|
| 9 | CAST, WHEEL RR (MA AX GY) | 42601KVLN11 |
|
| 10 | O-RING 40.5X3 | 42653001004 |
|
| 11 | TIRE RR TT (80/90-17 | 42711KTM850 |
|
| 11 | TIRE RR TT (80/90-17) | 42711KWB922 |
|
| 12 | 42712KPH881 | 42712KPH881 | - |
| 13 | DISK RR BREAKE | 43351KTMN31 |
|
| 13 | DISK RR BRAKE | 43351KTMN32 |
|
| 14 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 15 | BOLT STUD 8X19.5 | 90128KFM900 |
|
| 16 | Nut U 12mm | 90306KGH901 |
|
| 17 | NUT U, 8MM | 90309KPH971 |
|
| 18 | WASHER RR AXLE | 90504KW7901 |
|
| 19 | OIL SEAL 26X37X6 | 90753051003 |
|
| 19 | 90753051003 | 90753051005 |
|
| 20 | BEARING,BALL | HB6301RS |
|
| 20 | BRG, BALL RADIAL 6301(U) | 91053KWB601 |
|
| 21 | Bearing 6203 | HB6203 |
|
| 21 | Bearing 6203 | LF6203RS |
|
| 21 | 91054KWW641 | 91054KWW641 | - |
| 21 | 91054KWW642 | 91054KWW642 | - |
| 22 | DUST SEAL 27 X 40 X 4.5 | 91251KPH881 |
|
| 23 | FLANGE ASSY. FINAL DRIVE | 4261AKYZ910 | - |
