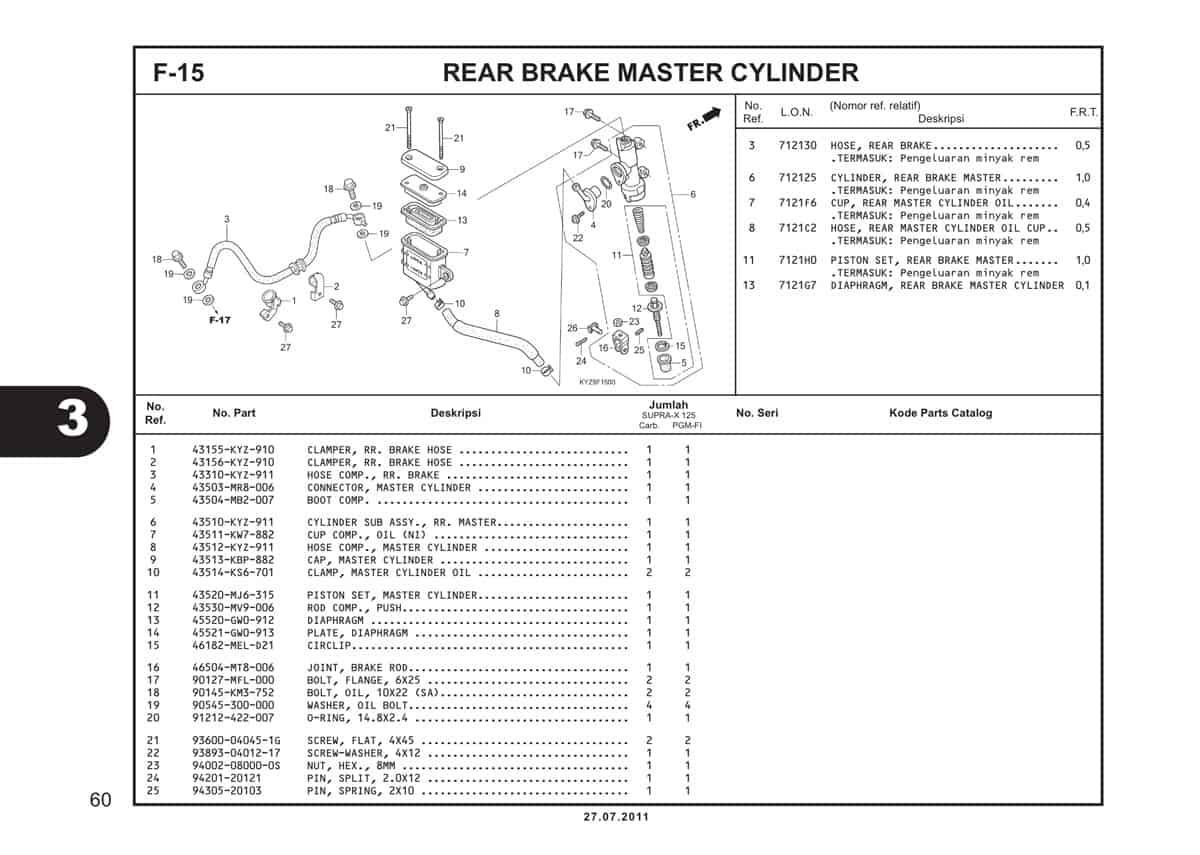

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CLAMPER RR BRAKE HOSE | 43155KYZ910 |
|
| 2 | CLAMPER RR BRAKE HOSE | 43156KYZ910 |
|
| 3 | HOSE COMP RR BRAKE | 43310KYZ911 | - |
| 4 | CONNECTOR, MSTR CYLINDER | 43503MR8006 |
|
| 5 | BOOT COMP | 43504MB2007 |
|
| 6 | M/C SUB ASSY RR | 43510KYZ911 |
|
| 7 | OIL CUP COMP | 43511KW7882 |
|
| 8 | HOSE COMP M/C | 43512KYZ911 |
|
| 9 | Cap M C | 43513KBP881 |
|
| 10 | CLMP,CYLN.OIL | 43514KS6701 |
|
| 11 | PISTON,CYLINDER | 43520MJ6315 |
|
| 12 | ROD COMP PUSH | 43530MV9006 |
|
| 13 | 43513KBP882 | 45520GW0912 | - |
| 14 | PLATE DIAPHRAGM | 45521GW0913 |
|
| 15 | CIRCLIP M/C | 46182MELD21 |
|
| 16 | JOINT,BRK ROD | 46504MT8006 |
|
| 17 | BOLT FLANGE 6X25 | 90127MFL000 |
|
| 18 | BOLT OIL, 10X22 | 90145KM3752 |
|
| 19 | WASHER OIL BOLT | 90545300000 |
|
| 20 | O RING | 91212422007 |
|
| 21 | SCREW,FLAT,4X45 | 93600040451G |
|
| 22 | SCREW WASHER 4X12 | 938930401217 |
|
| 23 | NUT,HEX 8MM | 94002080000S |
|
| 24 | 9420120120 | 9420120121 | - |
| 25 | PIN SPRING, 2X10 | 9430520103 |
|
| 26 | PIN D JOINT | 9501554000 |
|
| 27 | BOLT FLANGE SH 6X12 | 960010601200 |
|
