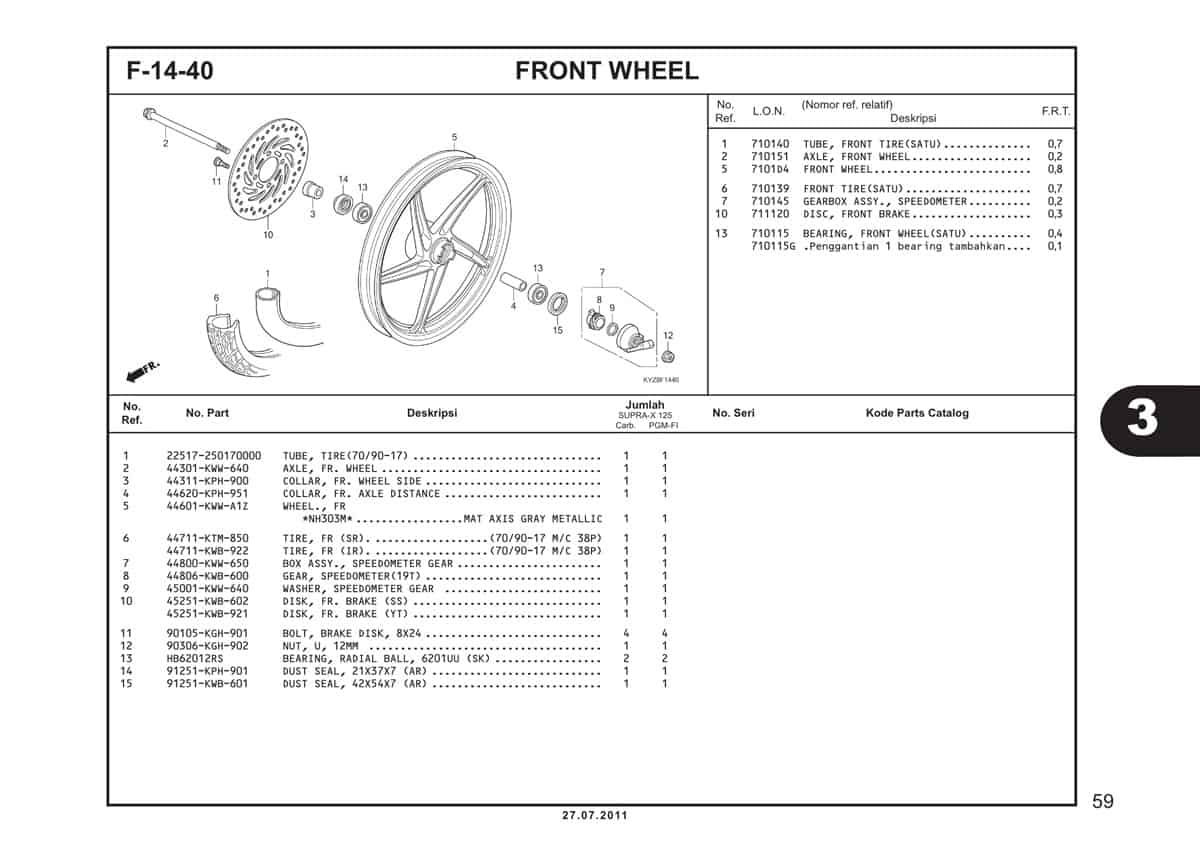

F14 – 40 – Front Wheel – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	TUBE TIRE (225/250-17) Part Number : `2251725017NR00`
2	AXLE FR WHEEL Part Number : `44301KWW640`
3	COLLAR FR WHEEL SIDE Part Number : `44311KPH900`
4	COLLAR,FR AXLE DIST Part Number : `44620KPH950`
5	CAST, WHEEL FR (MA AX GY) Part Number : `44601KWWA1Z`
6	TIRE FR TT (70/90-17) Part Number : `44711KTM850`
6	TIRE FR TT (70/90-17) Part Number : `44711KWB922`
7	GEAR BOX ASSY SPDMT Part Number : `44800KWW650`
8	GEAR, SPDMT Part Number : `44806KWB600`
9	GEAR BOX ASSY SPDMT Part Number : `45001KWW650`
10	DISK, FR. BRAKE Part Number : `45251KWB602`
10	DISK FR BRAKE Part Number : `45251KWB921`
11	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
12	NUT,U,12MM Part Number : `90306KGH902`
12	Nut U 12mm Part Number : `90306KGH901`
13	BEARING, BALL 6201 Part Number : `HB62012RS`
13	Bearing Ball (SET) 6201 Part Number : `ALF6201RS`
14	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
15	DUST SEAL, 42X54X7 Part Number : `91251KWB601`
