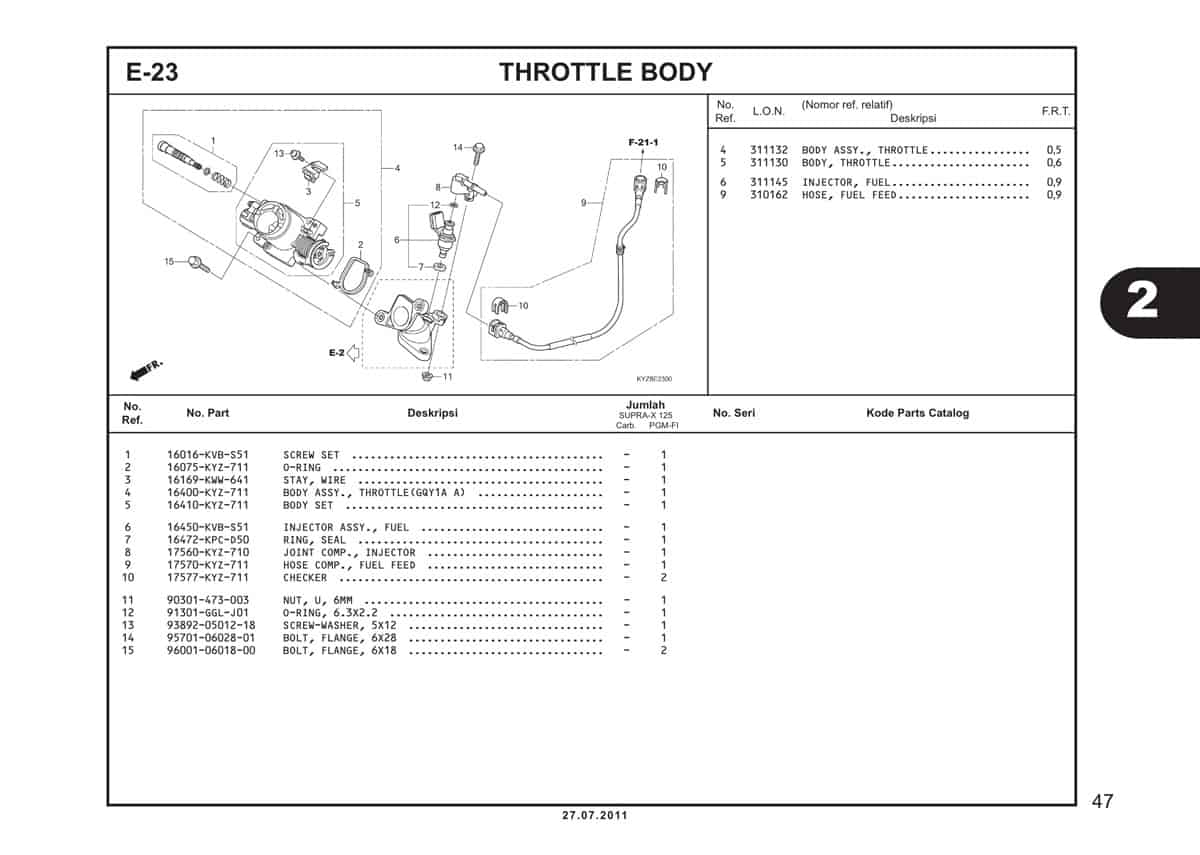

E23 – Throttle Body – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	Screw Set Part Number : `16016KVBS51`
2	O-Ring Throttle Body Part Number : `16075KYZ711`
3	Stay Wire Part Number : `16169KWW641`
4	Throttle Body Assy Part Number : `16400KYZ711`
5	Body Set Part Number : `16410KYZ711`
6	Injector Assy Fuel Part Number : `16450KVBS51`
7	Ring Seal Part Number : `16472KPCD50`
8	Joint Comp Injector Part Number : `17560KYZ710`
9	Hose Comp Fuel Feed A Part Number : `17570KYZ712`
10	Checker Part Number : `17577KYZ711`
11	Nut U 6MM Part Number : `90301473003`
12	O-Ring 6.3X2.2 Part Number : `91301GGLJ01`
13	Screw Washer 5X12 Part Number : `938920501218`
14	Bolt Flange 6X28 Part Number : `957010602800`
15	Bolt Flange SH 6X18 Part Number : `960010601800`
