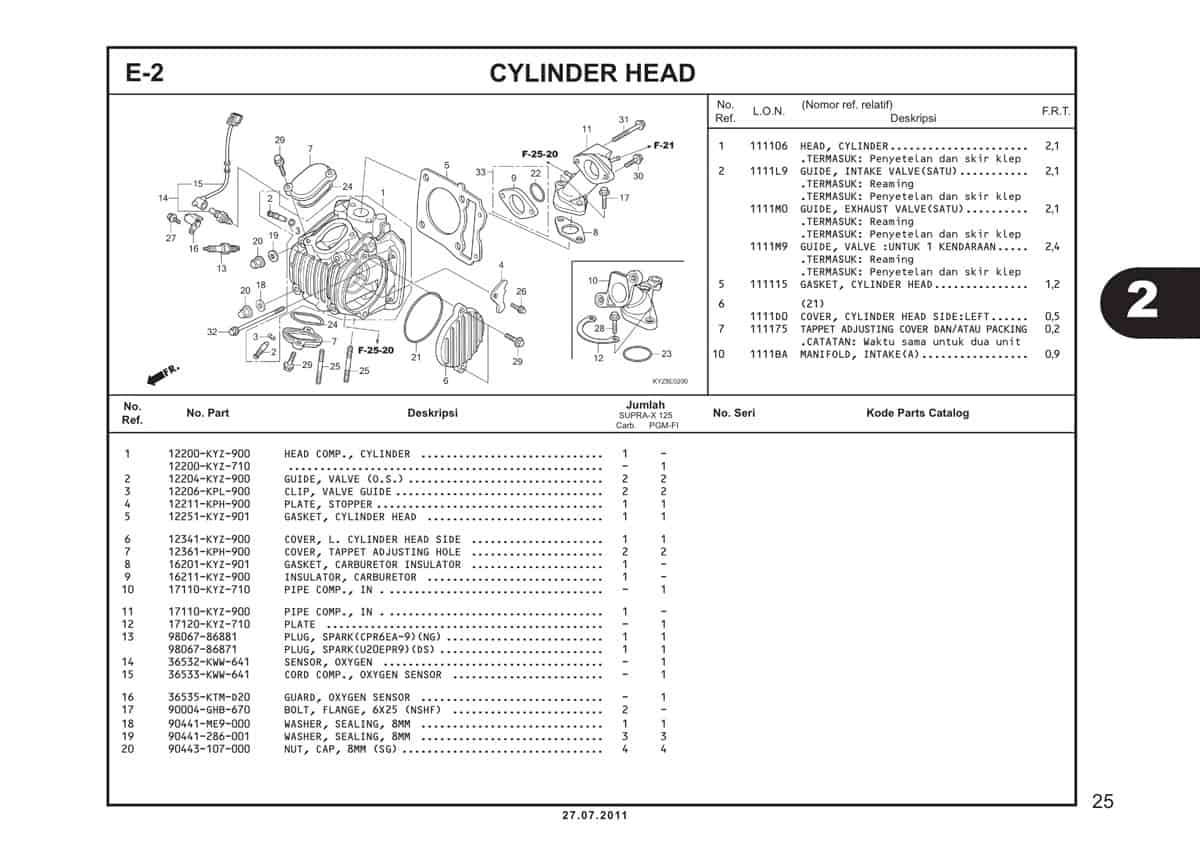

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Heade Comp Cylinder | 12200KYZ900 | - |
| 1 | Heade Comp Cylinder | 1220BKYZ710 |
|
| 2 | Guide Valve | 12204KYZP00 |
|
| 3 | Clip Guide Valve | 12206KPL900 |
|
| 4 | Plate Stopper | 12211KPH900 |
|
| 5 | Gasket Cylinder Head | 12251KYZ901 |
|
| 6 | Cover L Cylinder Head Side | 12341KYZ900 |
|
| 7 | Cover Tappet Adjusting Hole | 12361KPH900 |
|
| 8 | Gasket Carburetor Insulator | 16201KYZ901 |
|
| 9 | Insulator Carburetor | 16211KFL850 |
|
| 10 | Pipe Comp Inlet | 17110KYZ710 |
|
| 11 | Pipe Comp Inlet | 17110KYZ900 | - |
| 12 | Plate | 17120KYZ710 |
|
| 13 | Spark Plug CPR6EA9 (NGK) | 9806786881 |
|
| 13 | Spark Plug U20EPR9 (DS) | 9806786871 |
|
| 13 | Spark Plug U24EPR9 (DS) | 31928MFFD01 |
|
| 14 | Sensor Oxygen | 36532KWW641 |
|
| 16 | Guard Oxygen Sensor | 36535KTMD20 |
|
| 17 | Bolt Flange SHF 6X25 | 90004GHB670 |
|
| 18 | Washer Sealing 8MM | 90441ME9000 |
|
| 19 | Washer Sealing 8MM | 90441286001 |
|
| 20 | Nut Hex Cap | 90443107000 |
|
| 21 | O-Ring 74.5X2.5 (NOK) | 91301PH8005 |
|
| 21 | O-Ring 74.5X2.5 | 91301K73V81 |
|
| 23 | O-Ring 29 X 2.4 | 91304KPH700 |
|
| 24 | O-Ring Tappet Adjusting | 91372KPH900 |
|
| 25 | Bolt Stud 2.8X28 | 92900080280E |
|
| 26 | Bolt Flange 6X12 | 957010601200 |
|
| 27 | Bolt Flange 6X14 | 957010601400 |
|
| 28 | Bolt Flange 6X25 | 957010602500 |
|
| 29 | Bolt Flange 6X20 | 960010602000 |
|
| 30 | Bolt Flange 6X22 | 960010602200 |
|
| 31 | Bolt Flange 6X50 | 960010605000 |
|
| 32 | Bolt Flange 6X90 | 960010609000 |
|
| 33 | Insulator Assy Carburetor | 1621AKYZ900 | - |
