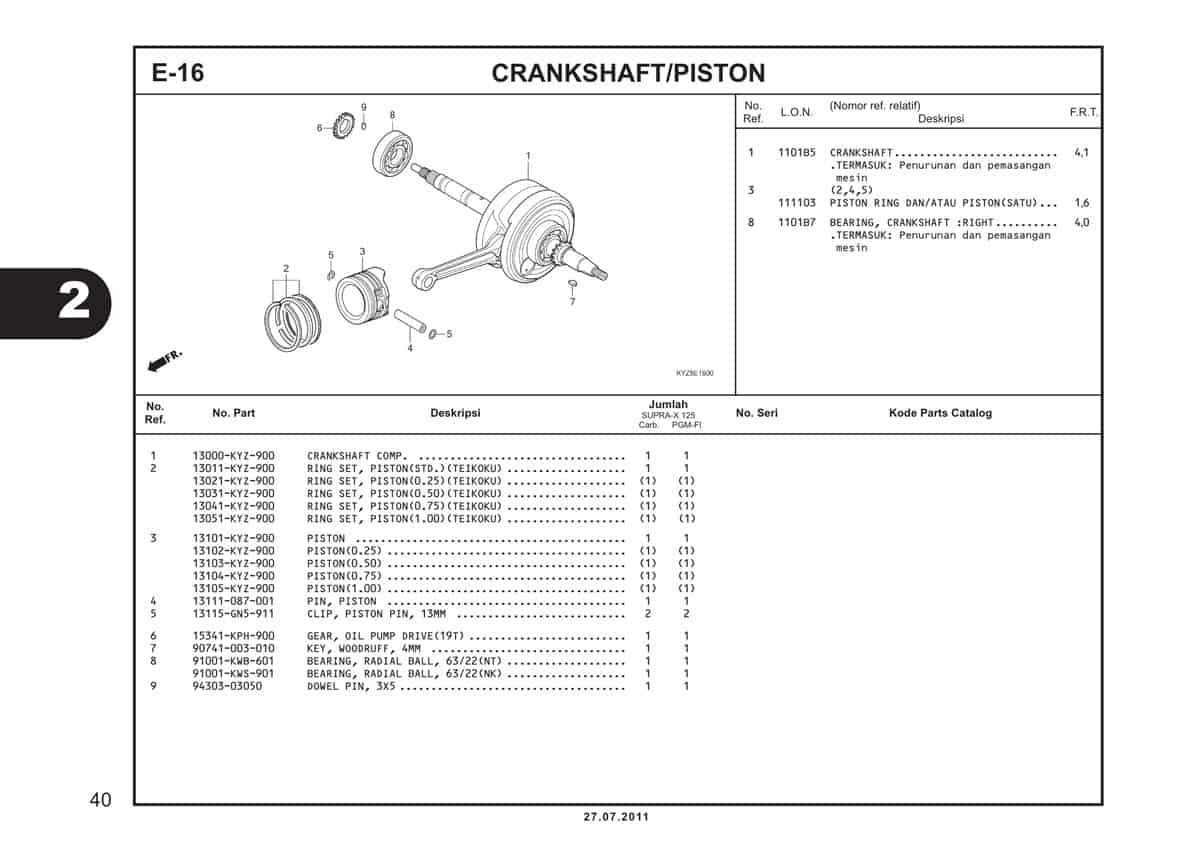

E16 – Crankshaft/Piston – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	Crankshaft Comp Part Number : `1300AKYZ900`
2	Ring Set Piston (STD) Part Number : `13011KYZ900`
2	Ring Set Piston (0,25) Part Number : `13021KYZ900`
2	Ring Set Piston (0,50) Part Number : `13031KYZ900`
2	Ring Set Piston (0,75) Part Number : `13041KYZ900`
2	Ring Set Piston (1,00) Part Number : `13051KYZ900`
3	Piston (STD) Part Number : `13101KYZ900`
3	Piston (0,25) Part Number : `13102KYZ900`
3	Piston (0,50) Part Number : `13103KYZ900`
3	Piston (0,75) Part Number : `13104KYZ900`
3	Piston (1,00) Part Number : `13105KYZ900`
4	Pin Piston Part Number : `13111087001`
5	Clip Piston Pin 13MM Part Number : `13115GN5910`
6	Gear Oil Pump Drive Part Number : `15341KPH900`
7	Key Woodruff 4MM Part Number : `90741003010`
8	Bearing Radial Ball 63/22 Part Number : `91001KWS901`
9	Pin Dowel 3X5 Part Number : `9430303050`
