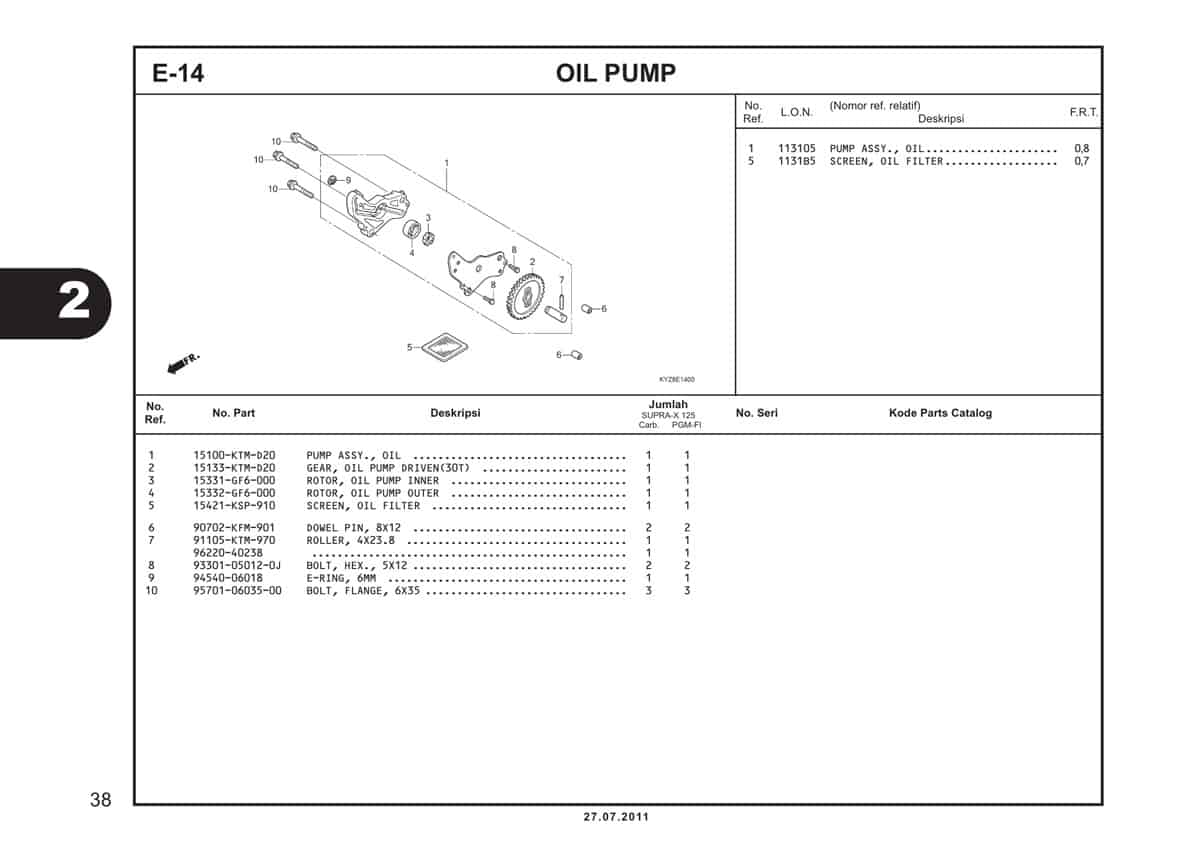

E14 – Oil Pump – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	Oil Pump Assy Part Number : `15100KTMD20`
2	Gear Oil Pump Driven Part Number : `15133KTMD20`
3	Rotor Oil Pump In Part Number : `15331GF6000`
4	Rotor Oil Pump Out Part Number : `15332GF6000`
5	Screen Oil Filter Part Number : `15421KSP910`
6	Pin Dowel 8X12 Part Number : `90702KFM900`
7	Roller 4X23.8 Part Number : `91105KTM970`
7	Roller 4X23.8 Part Number : `9622040238`
8	Bolt Hex 5X12 Part Number : `93301050120J`
9	E Ring 6MM Part Number : `9454006018`
10	Bolt Flange 6X35 Part Number : `957010603500`
