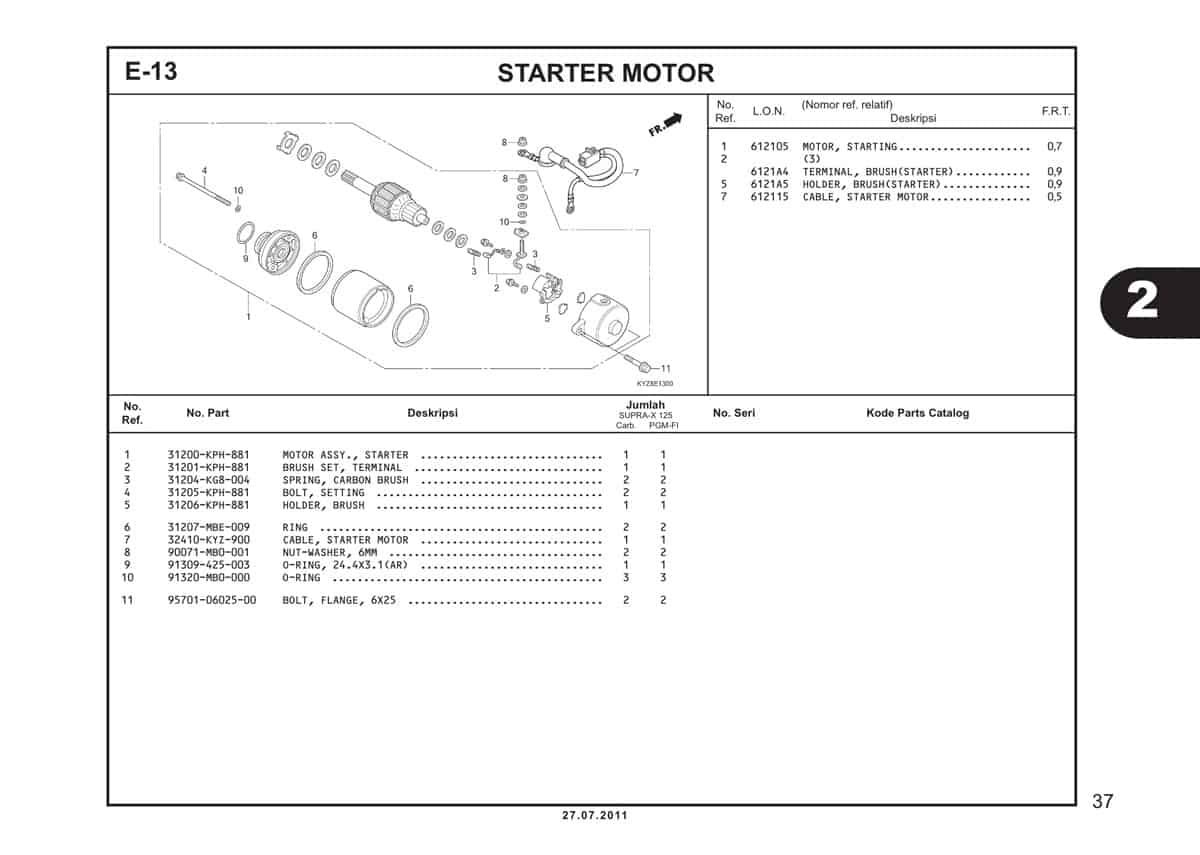

E13 – Starter Motor – Katalog Honda Supra X 125 Helm-In KYZ

#	Informasi Produk	Visual
1	Motor Assy Start Part Number : `31200KPH881`
1	Motor Assy Start Part Number : `31200KPW901`
2	Brush Terminal Set Part Number : `31201KPH881`
3	Spring Brush Part Number : `31204KG8004`
4	Bolt Setting Part Number : `31205KPH881`
5	Brush Bolder Part Number : `31206KPH881`
6	Ring Part Number : `31207MBE008`
7	Cable Starter Motor Part Number : `32410KYZ900`
8	Nut Washer 6MM Part Number : `90071MB0000`
9	O-Ring 24.4X3.1 Part Number : `91309425003`
10	O-Ring Part Number : `91320MB0000`
11	Bolt Flange 6X25 Part Number : `957010602500`
