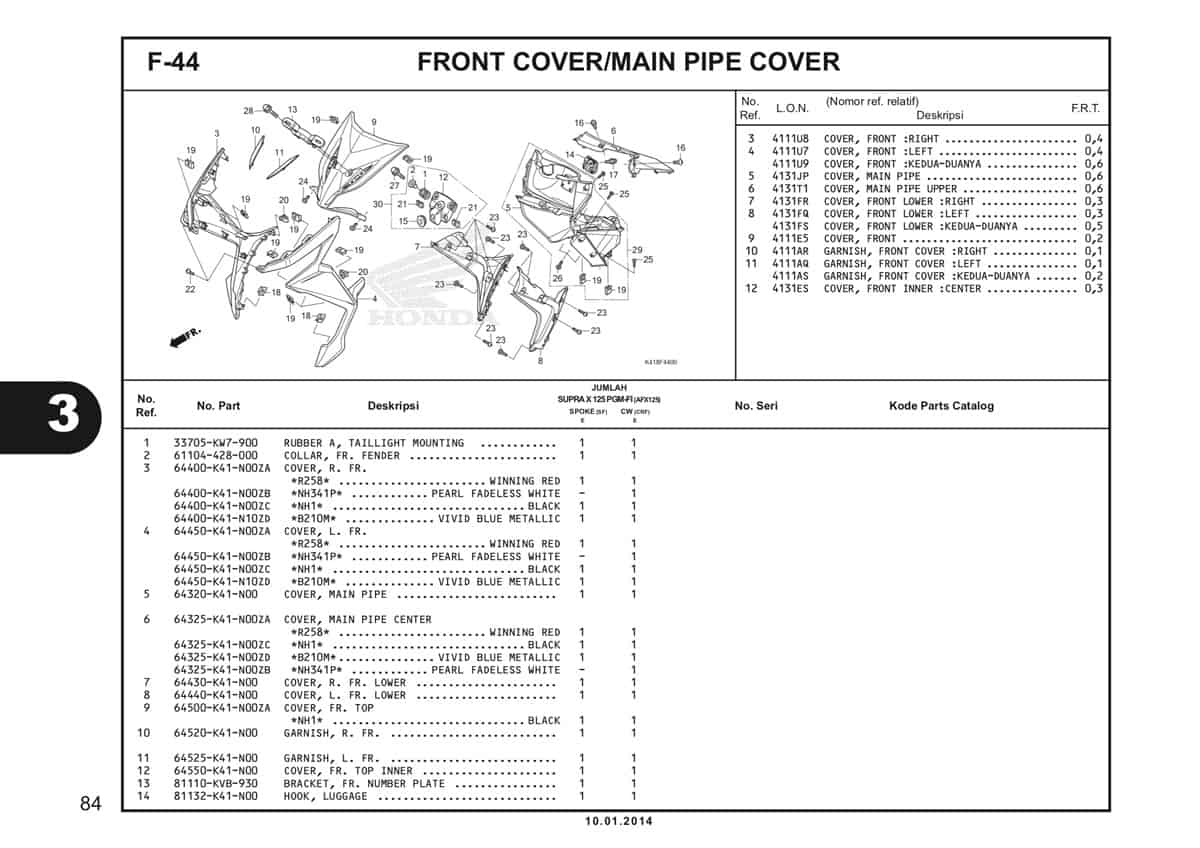

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Rubber Tail Light | 33705KW7900 |
|
| 2 | Collar FR Fender | 61104428000 |
|
| 3 | Cover R FR (WN RD) | 64400K41N00ZA |
|
| 3 | Cover R FR (PL FD WH) | 64400K41N00ZB |
|
| 3 | Cover R FR (BLK) | 64400K41N00ZC |
|
| 3 | Cover R FR (VD BL MT) | 64400K41N00ZD | - |
| 4 | Cover L FR (WN RD) | 64450K41N00ZA |
|
| 4 | Cover L FR (PL FD WH) | 64450K41N00ZB |
|
| 4 | Cover L FR (BLK) | 64450K41N00ZC |
|
| 4 | Cover L FR (VD BL MT) | 64450K41N00ZD | - |
| 5 | Cover M/P UPPER | 64320K41N00 |
|
| 6 | Cover M/P CTR (WN RD) | 64325K41N00ZA |
|
| 6 | Cover M/P CTR (BLK) | 64325K41N00ZC |
|
| 6 | Cover M/P CTR (VD BL MT) | 64325K41N00ZD | - |
| 6 | Cover M/P CTR (PL FD WH) | 64325K41N00ZB |
|
| 7 | Cover R FR LWR | 64430K41N00 |
|
| 8 | Cover L FR LWR | 64440K41N00 |
|
| 9 | Cover FR TOP (BLK) | 64500K41N00ZA |
|
| 10 | Garnish R FR | 64520K41N00 |
|
| 11 | Garnish L FR | 64525K41N00 |
|
| 12 | Cover FR Top Inner Cowl | 64550K41N00 |
|
| 13 | Bracket FR Number Plate | 81110KVB930 |
|
| 14 | Hook Luggage | 81132K41N00 |
|
| 15 | Grommet A/C | 83551GE2000 |
|
| 16 | Screw 6X12 | 90107KGH600 |
|
| 17 | Bolt Special 6MM | 90107KVB900 |
|
| 18 | Nut Spring 4MM | 90302GW3980 |
|
| 19 | Nut Spring 4MM | 90302KWWA00 |
|
| 20 | Clip Snap Fit (P0) | 90666SDAA01 |
|
| 21 | Nut Clip 5MM | 90677KANT00 |
|
| 22 | Screw Tapping 4X12 | 9390324310 |
|
| 23 | Screw Tapping 4X12 | 9390324380 |
|
| 24 | Screw Tapping 4X16 | 9390324410 |
|
| 25 | Screw Tapping 4X16 | 9390324480 |
|
| 26 | Screw Tapping 4X12 | 9390344310 |
|
| 27 | Bolt Flange 6X25 | 957010602500 |
|
| 28 | Bolt Flange 6X32 | 957010603200 |
|
| 29 | Cover M/P Assy | 6433AK41N00 |
|
| 30 | Cover FR Top Inner Assy | 6455AK41N00 |
|
