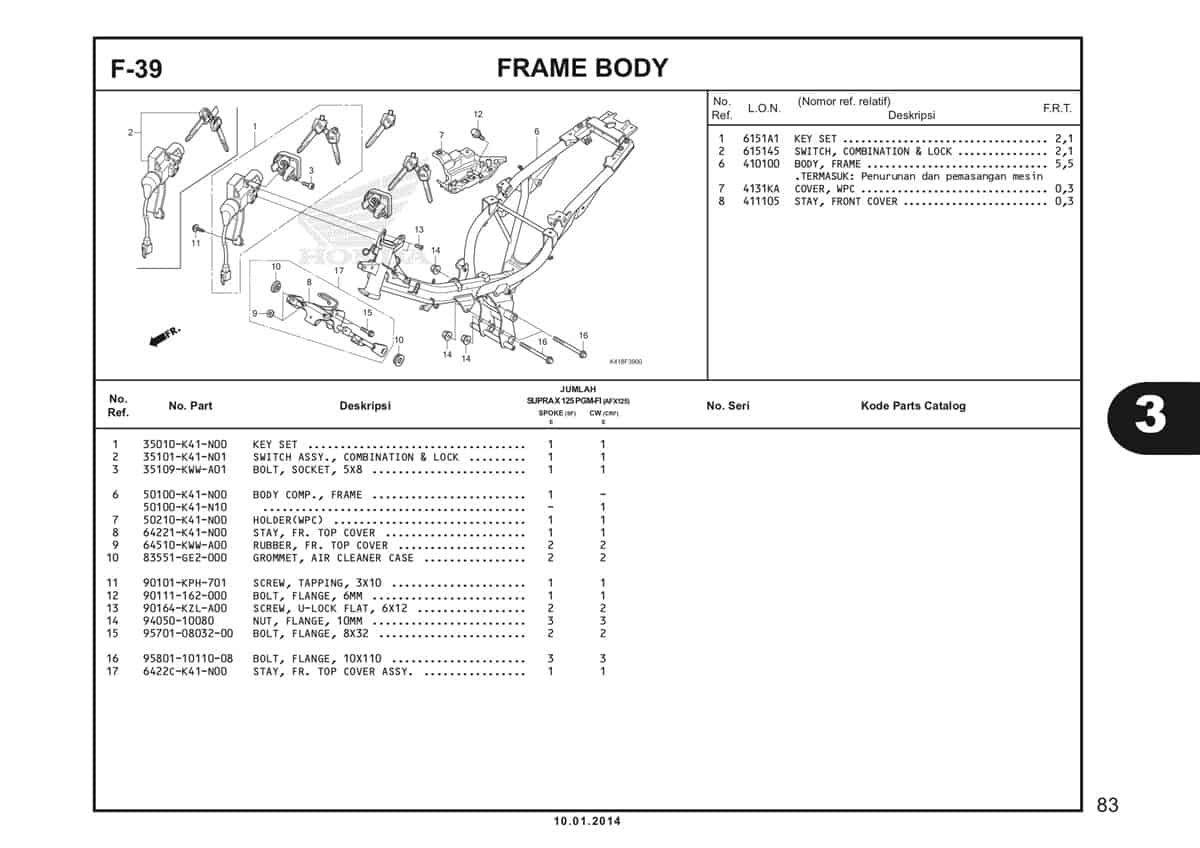

F39 – Frame Body – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Key Set Part Number : `35010K41N00`
2	Switch Assy Comb Part Number : `35101K41N02`
3	Socket Bolt (5X8) Part Number : `35109KWWA01`
6	Frame Body Comp Part Number : `50100K41N20`
6	Frame Body Comp Part Number : `50100K41N30`
7	Holder (WPC) Part Number : `50210K41N00`
8	Stay FR Top Cover Part Number : `64221K41N00`
9	Rubber FR Top Cover Part Number : `64510KWWA00`
10	Grommet A/C Part Number : `83551GE2000`
11	Screw Tapping 3X1 (M8X1.0) Part Number : `90101KPH701`
12	Bolt Flange 6MM Part Number : `90111162000`
13	Screw U-Lock Flat 6X12 Part Number : `90164KZLA00`
14	Nut Flange 10MM Part Number : `9405010080`
15	Bolt Flange 8X32 Part Number : `957010803200`
16	Bolt Flange 10X110 Part Number : `958011011008`
17	Stay FR Top Cover Assy Part Number : `6422CK41N00`
