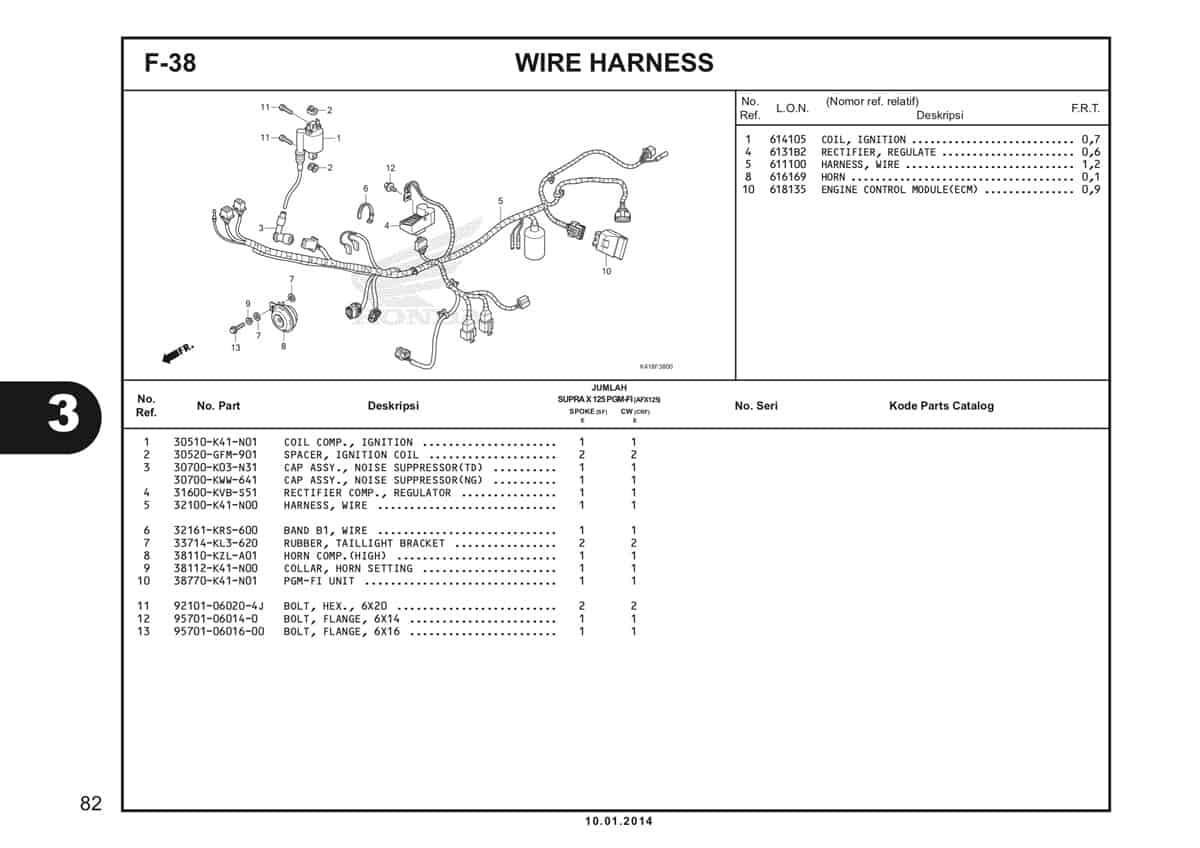

F38 – Wire Harness – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K41N01`
2	Spacer Ignition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700K03N31`
3	Cap Assy Noise Suppressor Part Number : `30700KWW641`
3	Cap Assy Noise Suppressor Part Number : `30700KWWA01`
4	Regulator Rec Comp Part Number : `31600KVBS51`
5	Harness Wire Part Number : `32100K41N00`
6	Band B1 Wire Part Number : `32161KRS600`
7	Rubber Tail Light Bracket Part Number : `33714KL3620`
8	Horn Comp (HIGH) Part Number : `38110KZLA01`
9	Collar Horn Setting Part Number : `38112K41N00`
10	Unit Comp PGM-FI/IGN Part Number : `38770K41N01`
11	Bolt Hex 6X20 Part Number : `92101060204J`
12	Bolt Flange 6X14 Part Number : `957010601400`
13	Bolt Flange 6X16 Part Number : `957010601600`
