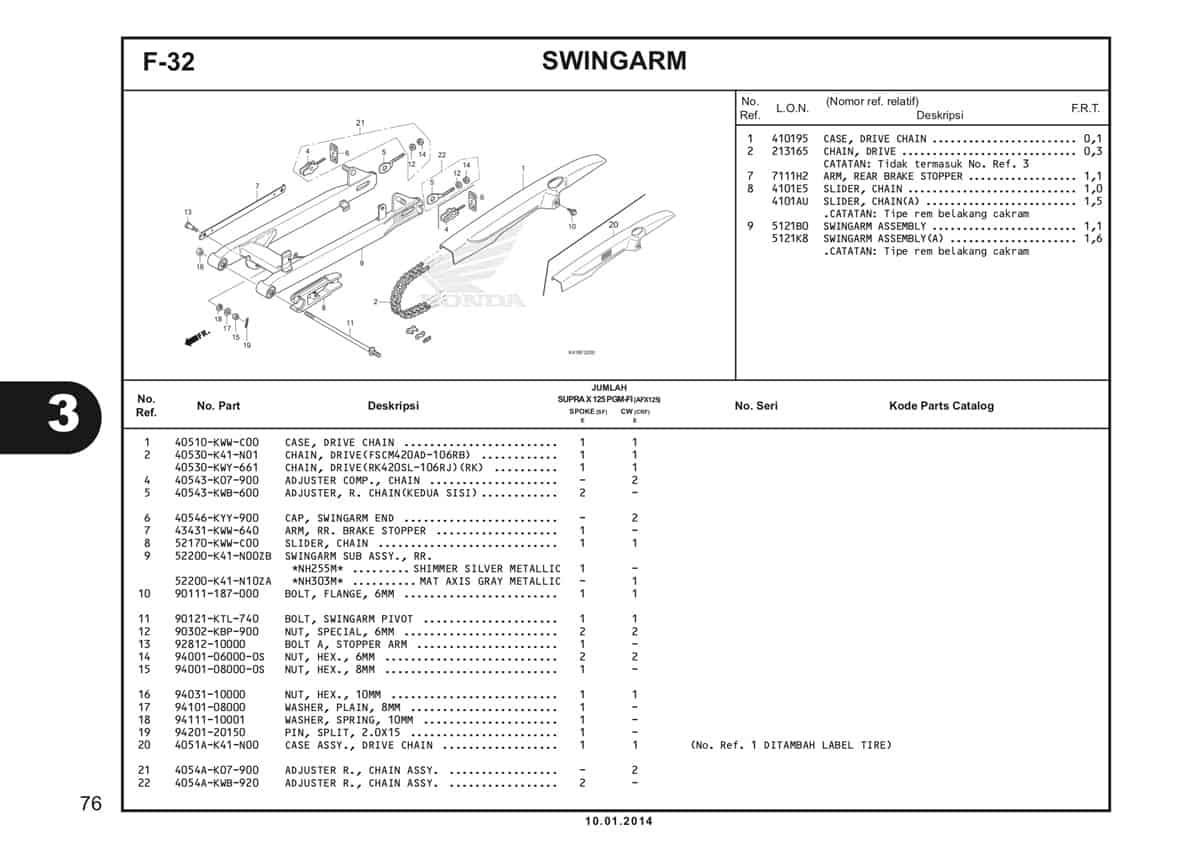

F32 – Swingarm – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Case Drive Chain Part Number : `40510KWWC00`
2	Chain Drive 420AD-106 (FS) Part Number : `40530K41N01`
2	Chain Drive RK420SL-106 (RJ) Part Number : `40530KWY661`
4	Adjuster Comp Chain Part Number : `40543K07900`
5	Adjuster R Chain Part Number : `40543KWB600`
6	Cap Swingarm End Part Number : `40546KYY900`
7	Arm RR Brake Stopper Part Number : `43431KWW640`
8	Slider Chain Part Number : `52170KWWC00`
9	Swingarm Sub Assy RR (SLV) Part Number : `52200K41N00ZB`
9	Swingarm Sub Assy RR (MAT) Part Number : `52200K41N10ZA`
10	Bolt Flange 6MM Part Number : `90111187000`
11	Bolt Swingarm Pivot Part Number : `90121KTL740`
12	Nut Special 6MM Part Number : `90302KBP900`
13	Bolt A Arm Stop Part Number : `9281210000`
14	Nut Hex 6MM Part Number : `94001060000S`
15	Nut Hex 8MM Part Number : `94001080000S`
16	Nut Hex 10MM Part Number : `9403110000`
17	Washer Plain 8MM Part Number : `9410108000`
18	Washer Spring 10MM Part Number : `9411110001`
19	Pin Cotter 2.0X15 Part Number : `9420120150`
20	Case Assy Drive Chain Part Number : `4051AK41N00`
21	Adjuster R Chain Assy Part Number : `4054AK07900`
22	Adjuster R Chain Assy Part Number : `4054AKWB920`
