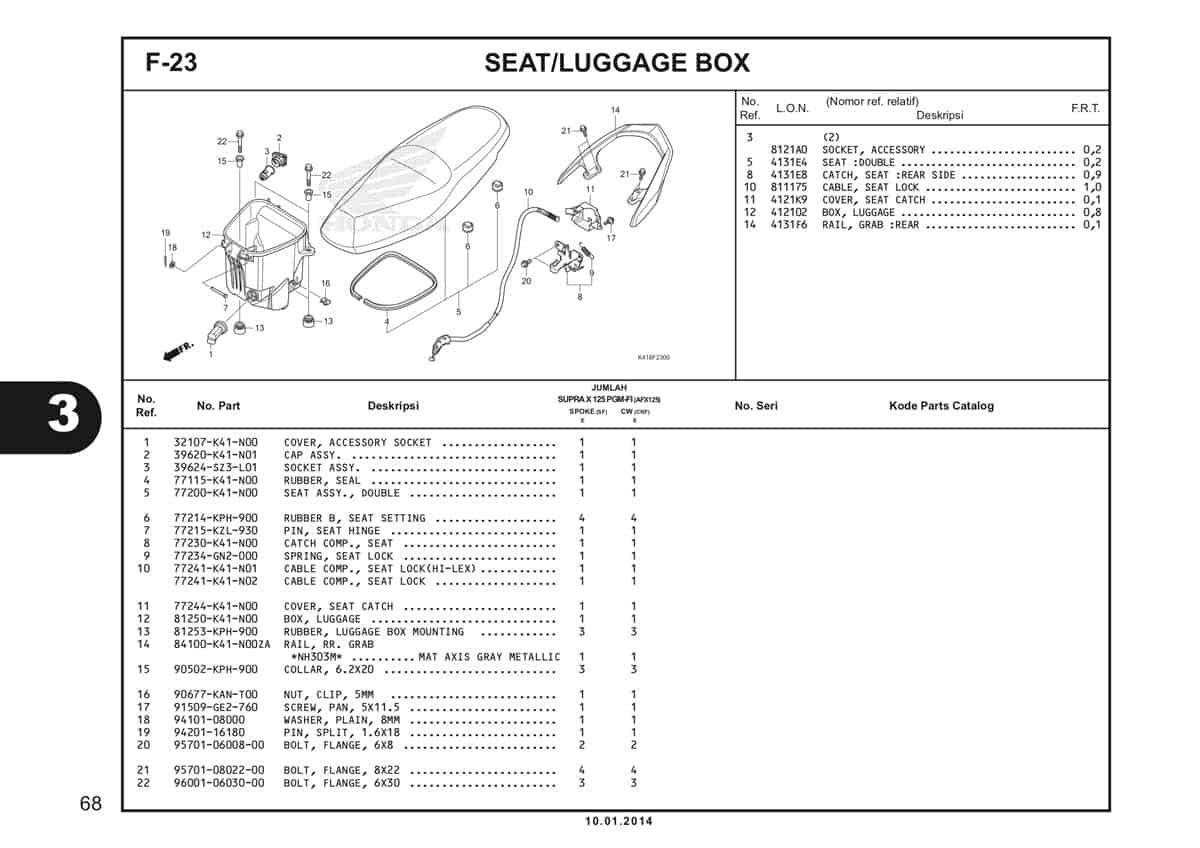

F23 – Seat/Luggage Box – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Over Accesory Socket Part Number : `32107K41N00`
2	Cap Assy Part Number : `39602K41N21`
3	Socket Assy Part Number : `39624SZ3L01`
4	Rubber Seal Part Number : `77115K41N00`
5	Seat Assy Double Part Number : `77200K41N00`
6	Rubber B Set Setting Part Number : `77214KPH900`
7	Pin Seat Hinge Part Number : `77215KZL930`
8	Catch Comp Seat Part Number : `77230K41N00`
9	Spring Seat Lock Part Number : `77234GN2000`
10	Cable Comp Seat Lock Part Number : `77241K41N01`
11	Cover Seat catch Part Number : `77244K41N00`
12	Box Luggage Part Number : `81250K41N00`
13	Rubber Box Mount Part Number : `81253KPH900`
14	Rail RR Grab (MA AX GY) Part Number : `84100K41N00ZA`
15	Collar 6.2X20 Part Number : `90502KPH900`
16	Nut Clip 5MM Part Number : `90677KANT00`
17	Screw Pan 5X11.5 Part Number : `91509GE2760`
18	Washer Plain 8MM Part Number : `9410108000`
19	Pin Split 1.6X18 Part Number : `9420116180`
20	Bolt Flange 6X8 Part Number : `957010600800`
21	Bolt Flange 8X22 Part Number : `957010802200`
22	Bolt Flange 6X30 Part Number : `960010603000`
