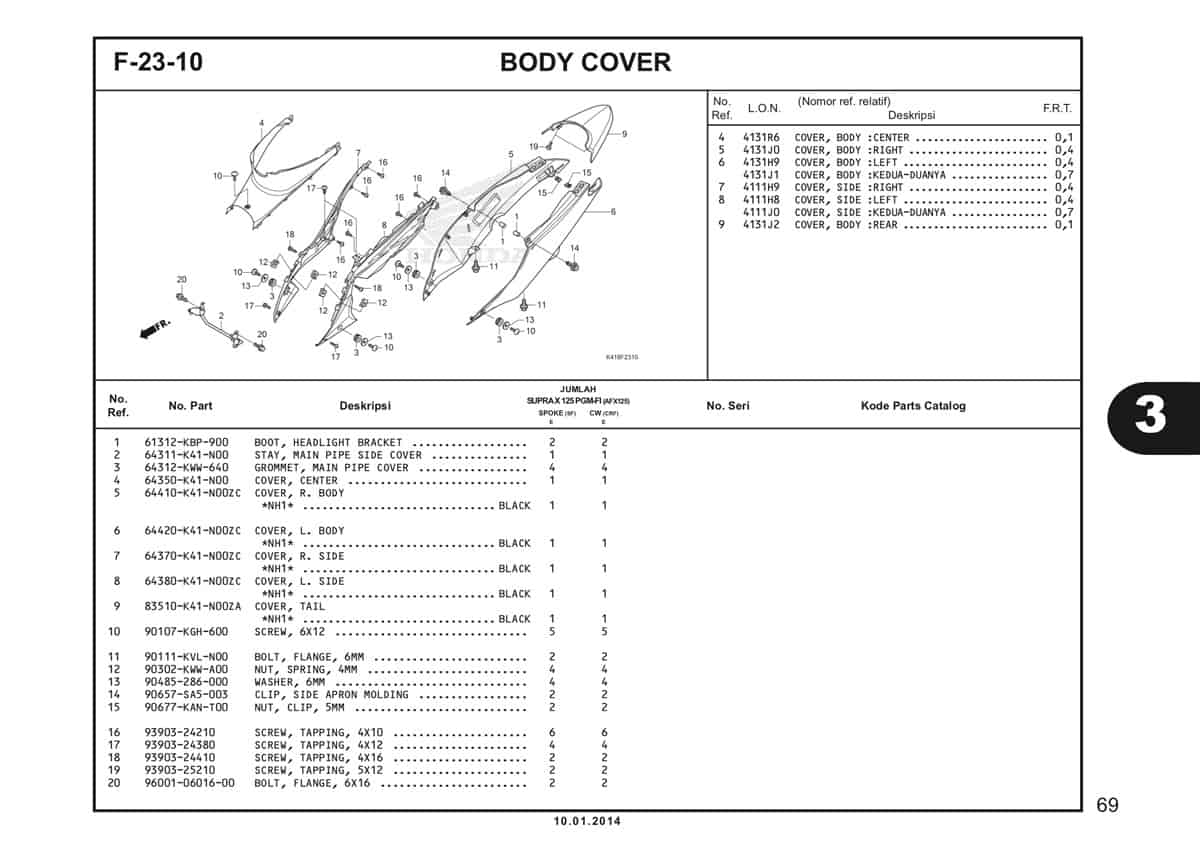

F23 – 10 – Body Cover – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Boot Head Light Part Number : `61312KBP900`
2	Stay Main Pipe Side Cover Part Number : `64311K41N00`
3	Grommet M/P Cover Part Number : `64312KWW640`
4	Cover Center Part Number : `64350K41N00`
5	Cover R Body (BLK) Part Number : `64410K41N00ZC`
5	Cover R Body PL FD WH Part Number : `64410K41N00PFW`
6	Cover L Body (BLK) Part Number : `64420K41N00ZC`
6	Cover L Body PL FD WH Part Number : `64420K41N00PFW`
7	Cover R Side (BLK) Part Number : `64370K41N00ZC`
8	Cover L Side (BLK) Part Number : `64380K41N00ZC`
8	Cover L Side (WN RD) Part Number : `64380K41N00WRD`
9	Cover Tail (BLK) Part Number : `83510K41N00ZA`
10	Screw 6X12 Part Number : `90107KGH600`
11	Bolt Flange 6MM Part Number : `90111KVLN00`
12	Nut Spring 4MM Part Number : `90302KWWA00`
13	Washer 6MM Part Number : `90485286000`
14	Clip Side Apron Molding Part Number : `90657SA5003`
15	Nut Clip 5MM Part Number : `90677KANT00`
16	Screw Tapping 4X10 Part Number : `9390324210`
17	Screw Tapping 4X12 Part Number : `9390324380`
18	Screw Tapping 4X16 Part Number : `9390324410`
19	Screw Tapping 5X12 Part Number : `9390325210`
20	Bolt Flange SH 6X16 Part Number : `960010601600`
