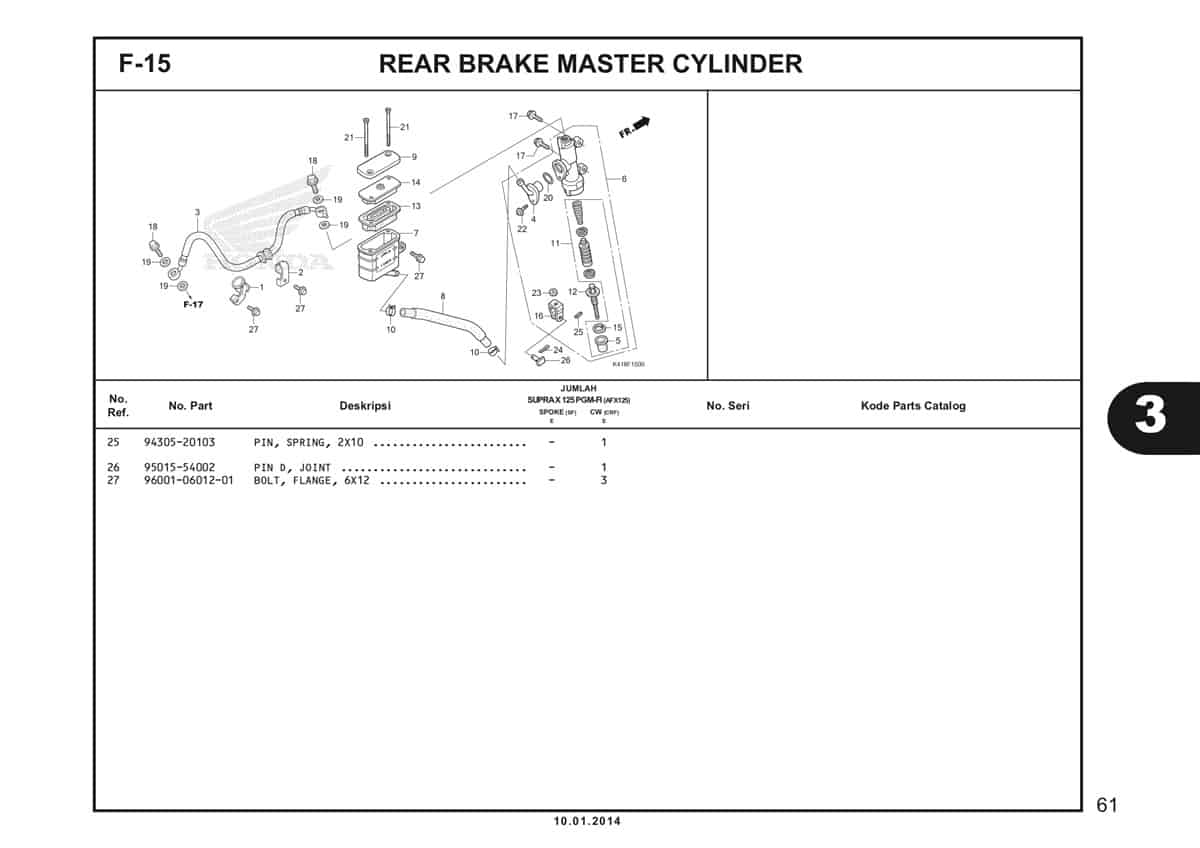

F15 – Rear Brake Master Cylinder – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Clamper RR Brake Hose Part Number : `43155KYZ910`
2	Clamper RR Brake Hose Part Number : `43156KYZ910`
3	Hose Comp RR Brake Part Number : `43310K41N11`
4	Connector Master Cylinder Part Number : `43503MR8006`
5	Boot Comp Part Number : `43504MB2007`
6	M/C Sub Assy RR Part Number : `43510KYZ911`
7	Oil Cup Comp Part Number : `43511KW7882`
8	Hose Comp M/C Part Number : `43512KYZ911`
9	Cap M/C Part Number : `43513KBP881`
10	Clamper Cylinder Oil Part Number : `43514KS6701`
11	Piston Cylinder Part Number : `43520MJ6315`
12	Rod Comp Push Part Number : `43530KYZ911`
13	Diaphragm Part Number : `45520GW0911`
14	Plate Diaphragm Part Number : `45521GW0913`
15	Circlip M/C Part Number : `46182MELD21`
16	Joint Brake Rod Part Number : `46504MT8006`
17	Bolt Flange 6X25 Part Number : `90127MFL000`
18	Bolt Oil 10X22 Part Number : `90145GAZ981`
19	Washer Oil Bolt Part Number : `90545300000`
20	O-Ring 14.8X2.4 Part Number : `91212422007`
21	Screw Flat 4X45 Part Number : `93600040451G`
22	Screw Washer 4X12 Part Number : `938930401217`
23	Nut Hex 8MM Part Number : `94002080000S`
24	Pin Split Part Number : `9420120120`
25	Pin Spring 2X10 Part Number : `9430520103`
26	Pin D Joint Part Number : `9501554000`
27	Bolt Flange SH 6X12 Part Number : `960010601200`
