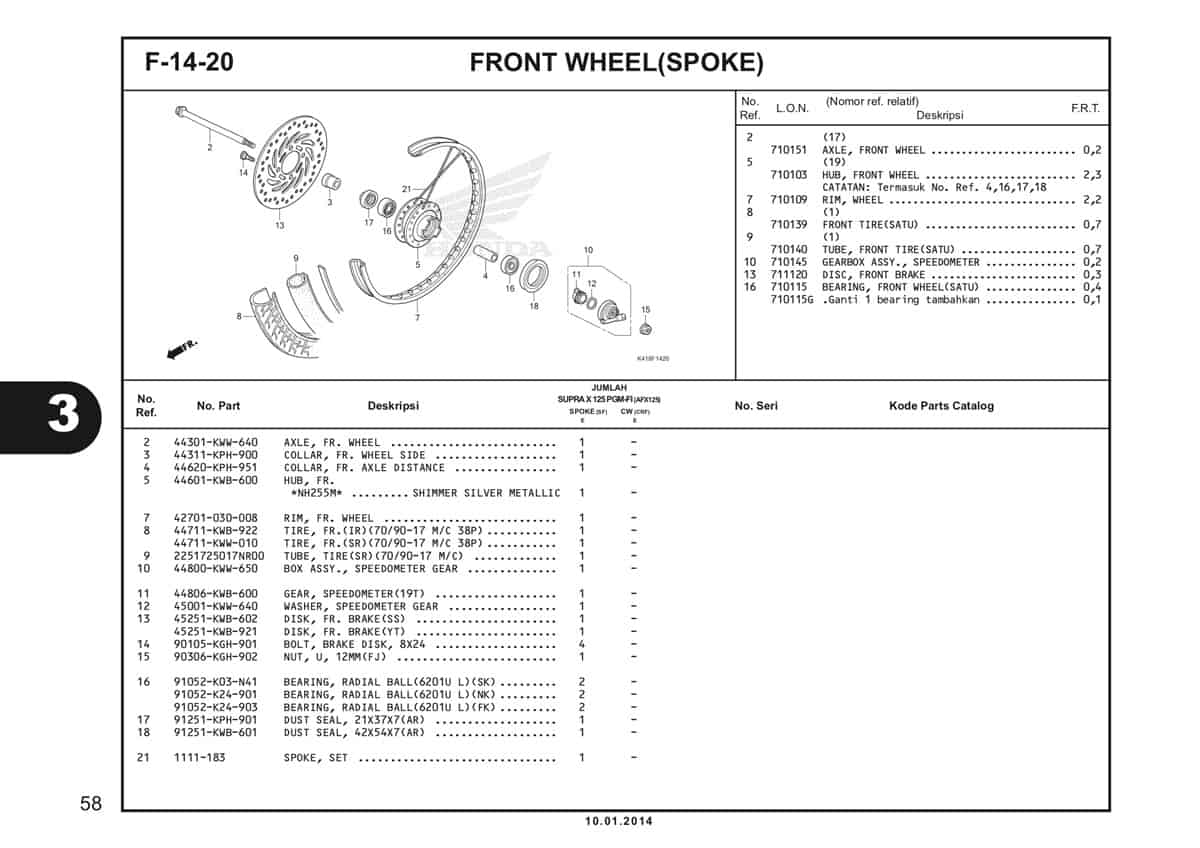

F14 – 20 – Front Wheel – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
2	Axle FR Wheel Part Number : `44301KWW640`
3	Collar FR Wheel Side Part Number : `44311KPH900`
4	Collar FR Axle Distance Part Number : `44620KPH950`
5	Hub FR Wheel Part Number : `44601KWB600`
7	Rim FR Wheel Part Number : `44701KPH882`
8	Tire FR (70/90-17 NF63B) Part Number : `44711KWB922`
8	Tire FR (70/90-17 FT138) Part Number : `44711KWW010`
9	Tube Tire (225/250-17) Part Number : `2251725017NR00`
10	Gear Box Assy Speedometer Part Number : `44800KWW650`
11	Gear Speedometer 19T Part Number : `44806KWB600`
12	Washer Speedometer Gear Part Number : `45001KWW640`
13	Disk FR Brake Part Number : `45251KWB602`
13	Disk FR Brake Part Number : `45251KWB921`
14	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
15	Nut U 12MM Part Number : `90306KGH901`
16	Bearing Radial Ball 6201U L Part Number : `91052K03N41`
16	Bearing Radial Ball 6201U L Part Number : `91052K24903`
17	Dust Seal 21X37X7 Part Number : `91251KPH901`
18	Dust Seal 42X54X7 Part Number : `91251KWB601`
21	Spoke Set Part Number : `1111-183`
