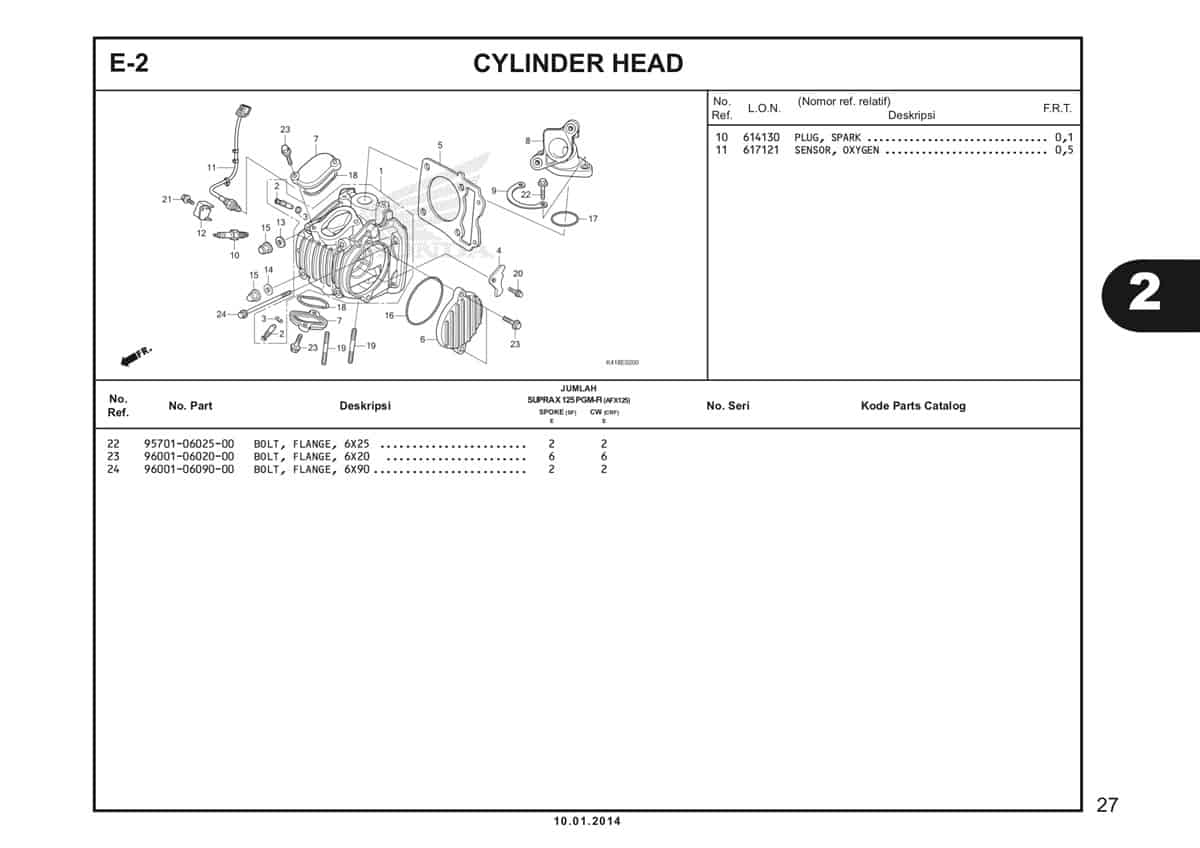

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Head Cylinder Comp | 1220BKYZ710 |
|
| 2 | Guide Valve (O.S) | 12204KYZP00 |
|
| 3 | Clip Valve Guide | 12206KPL900 |
|
| 4 | Plate Stopper | 12211KPH900 |
|
| 5 | Gasket Cylinder Head | 12251KYZ901 |
|
| 6 | Cover L Cylinder Head Side | 12341KYZ900 |
|
| 7 | Cover Tappet Adjust Hole | 12361KPH900 |
|
| 8 | Pipe Comp In | 17110KYZ710 |
|
| 9 | Plate | 17120KYZ710 |
|
| 10 | Spark Plug CPR6EA9 (NGK) | 9806786881 |
|
| 10 | Spark Plug U20EPR9 (DS) | 9806786871 |
|
| 10 | Spark Plug U22EPR9 (DS) | 31927KPH901 |
|
| 10 | Spark Plug U27EPR-9 (DS) | 31926KYT901 |
|
| 10 | Spark Plug U20EPR9S (DS) | 31926KWB601 |
|
| 11 | Sensor Oxygen | 36532K41N01 |
|
| 12 | Guard Oxygen Sensor | 36535K41N00 |
|
| 13 | Washer Sealing 8MM | 90441286001 |
|
| 14 | Washer Sealing 8MM | 90441ME9000 |
|
| 15 | Nut Hex Cap | 90443107000 |
|
| 15 | Nut Cap 8MM | 90443KTM970 |
|
| 16 | O-Ring 74.5X2.5(NOK) | 91301PH8005 |
|
| 16 | O-Ring 74.5X2.5 | 91301K73V81 |
|
| 17 | O-Ring 29X2.4 | 91304KPH700 |
|
| 18 | O-Ring Tapped Adjusting | 91372KPH900 |
|
| 19 | Bolt Stud 2.8X28 | 92900080280E |
|
| 20 | Bolt Flange 6X12 | 957010601200 |
|
| 21 | Bolt Flange 6X14 | 957010601400 |
|
| 22 | Bolt Flange 6X25 | 957010602500 |
|
| 23 | Bolt Flange 6X20 | 960010602000 |
|
| 24 | Bolt Flange 6X90 | 960010609000 |
|
