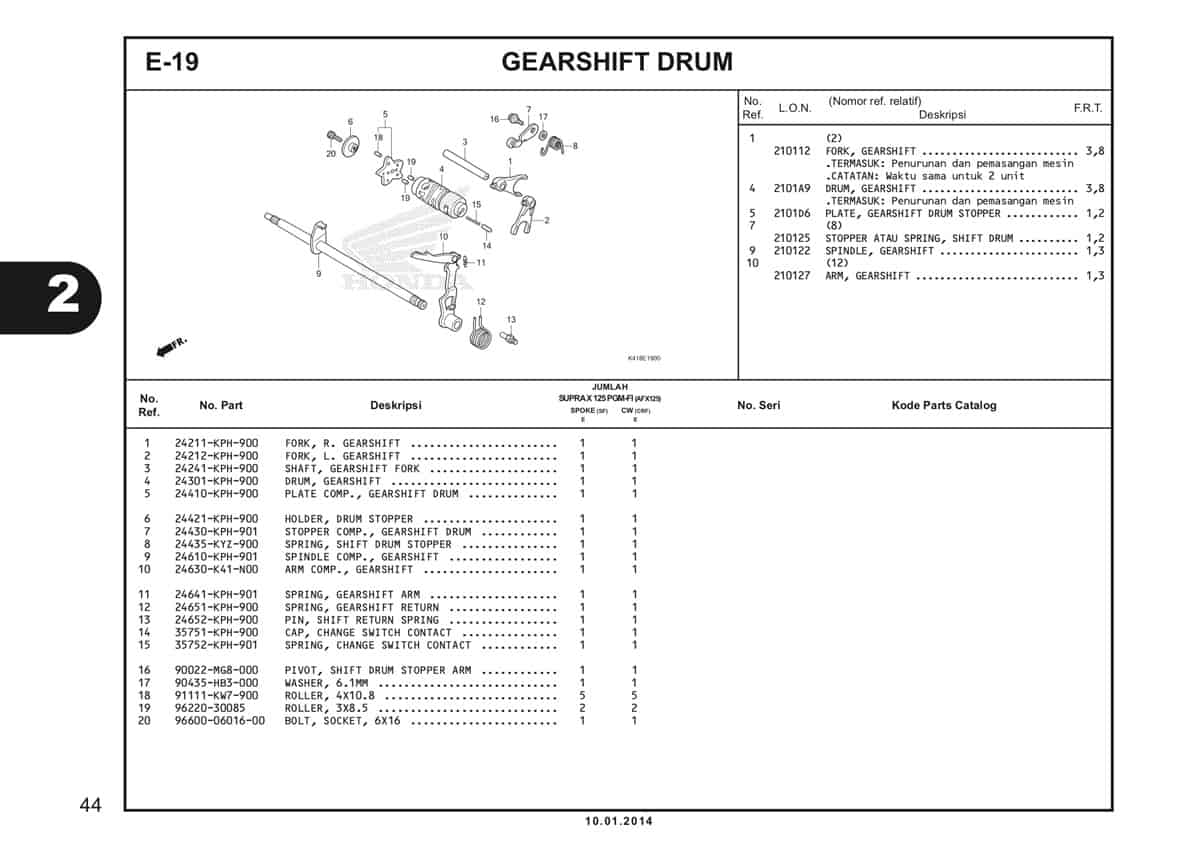

E19 – Gearshift Drum – Katalog Honda Supra X 125 FI K41

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 Fork R Gearshift 24211KPH900 Fork R Gearshift
2 Fork L Gearshift 24212KPH900 Fork L Gearshift
3 Shaft Gearshift Fork 24241KPH900 Shaft Gearshift Fork
4 Drum Gearshift 24301KPH900 Drum Gearshift
5 Plate Comp Shift Drum 24410KPH900 Plate Comp Shift Drum
6 Holder Drum Stopper 24421KPH900 Holder Drum Stopper
7 Stopper Comp Gearshift 24430KPH901 Stopper Comp Gearshift
8 Spring Shift Drum Stopper 24435KYZ900 Spring Shift Drum Stopper
9 Spindle Comp Gearshift 24610KPH901 Spindle Comp Gearshift
10 Arm Comp Gearshift 24630K41N00 Arm Comp Gearshift
11 Spring Gearshift Arm 24641KPH901 Spring Gearshift Arm
11 Spring Rear Shift Arm 24641KBP901 Spring Rear Shift Arm
12 Spring Gearshift Return 24651KPH900 Spring Gearshift Return
13 Pin Shift Return Spring 24652KPH900 Pin Shift Return Spring
14 Cap Contact Change SW 35751KPH900 Cap Contact Change SW
15 Spring Contact Change SW 35752KPH900 Spring Contact Change SW
16 Pivot Shift Drum Stop Arm 90022MG8000 Pivot Shift Drum Stop Arm
17 Washer 6.1MM 90435HB3000 Washer 6.1MM
18 Roller 4X10.8 91111KW7900 Roller 4X10.8
19 Roller 3X8.5 9622030085 Roller 3X8.5
20 Bolt Socket 6X16 966000601600 Bolt Socket 6X16
