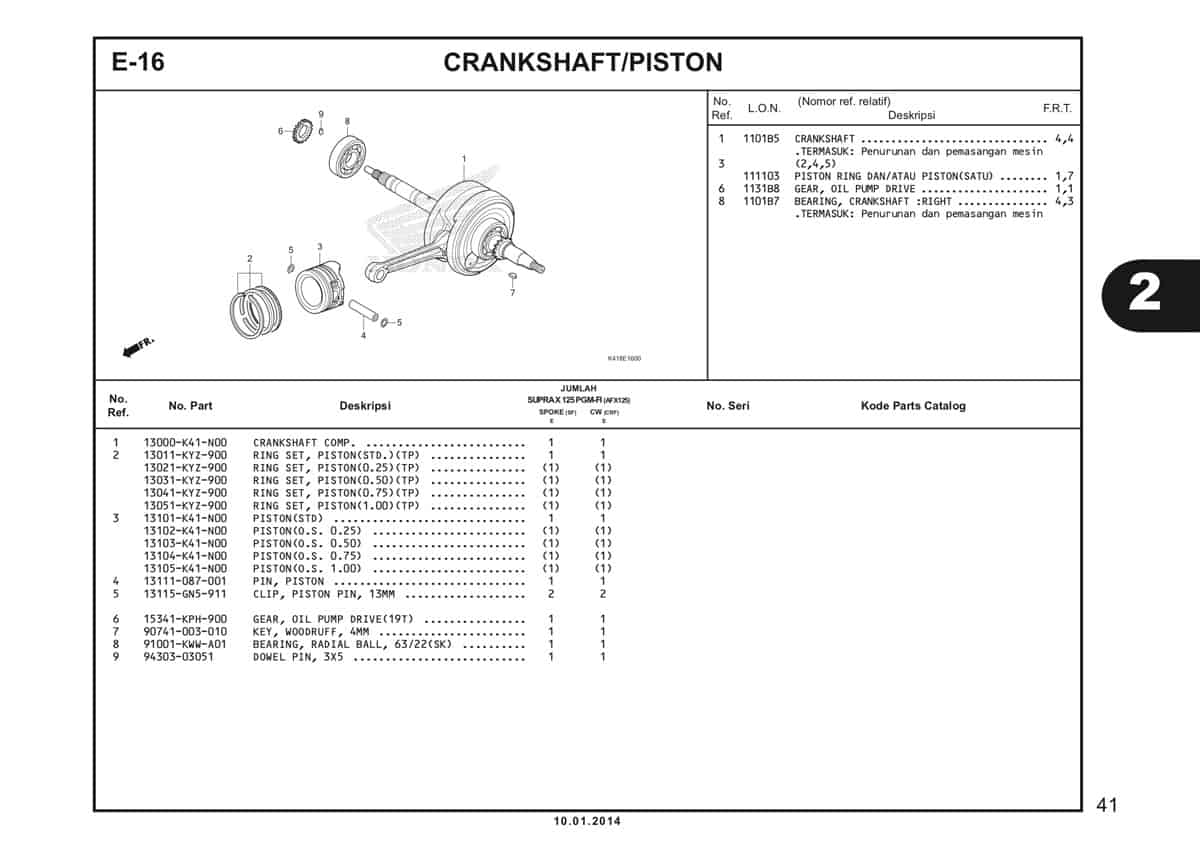

E16 – Crankshaft/Piston – Katalog Honda Supra X 125 FI K41

#	Informasi Produk	Visual
1	Crank Shaft Comp Part Number : `13000K41N00`
1	Crank Shaft Comp Part Number : `1300AK41N00`
2	Ring Set Piston (STD) Part Number : `13011KYZ900`
2	Ring Set Piston (0,25) Part Number : `13021KYZ900`
2	Ring Set Piston (0,50) Part Number : `13031KYZ900`
2	Ring Set Piston (0,75) Part Number : `13041KYZ900`
2	Ring Set Piston (1,00) Part Number : `13051KYZ900`
3	Piston (STD) Part Number : `13101K41N00`
3	Piston (0,25) Part Number : `13102K41N00`
3	Piston (0,50) Part Number : `13103K41N00`
3	Piston (0,75) Part Number : `13104K41N00`
3	Piston (1,00) Part Number : `13105K41N00`
4	Pin Piston Part Number : `13111087001`
5	Clip Piston Pin 13MM Part Number : `13115GN5910`
6	Gear Oil Pump Drive Part Number : `15341KPH900`
7	Keywoodruff 4MM Part Number : `90741003010`
8	Bearing Ball 63/22 (SK) Part Number : `91001KWWA01`
8	Bearing Ball 6322 Part Number : `91001K03N31`
9	Pin Dowel 3X5 Part Number : `9430303050`
