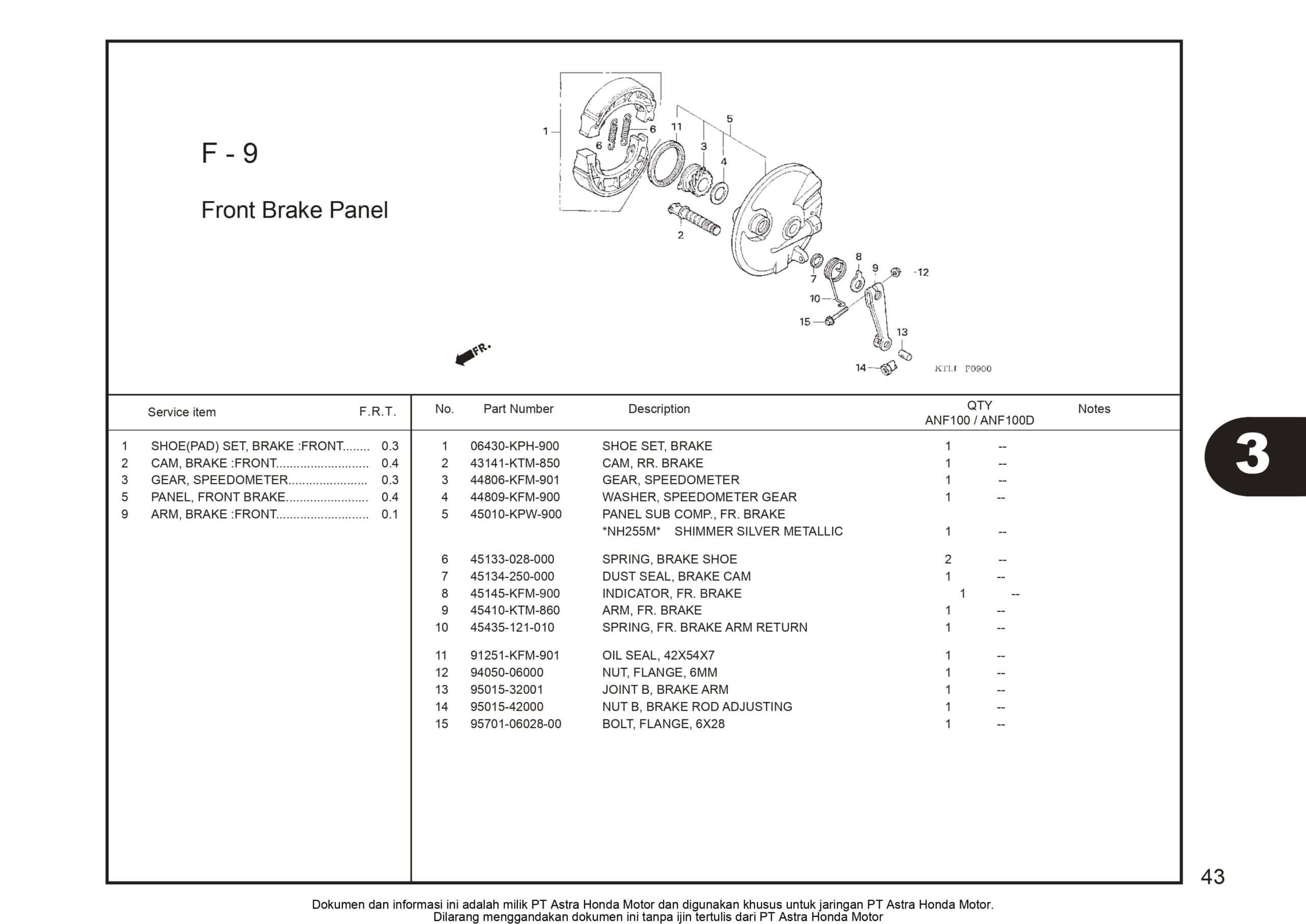

F-9 Front Brake Panel – Katalog Honda Supra FIT X

#	Informasi Produk	Visual
1	SHOE SET BRAKE Part Number : `06430KPH900`
2	CAM RR BRAKE Part Number : `43141KTM850`
3	GEAR SPDMT Part Number : `44806KFM901`
4	WASHER,SPDMT GEAR Part Number : `44809KFM900`
5	45010KPW900 Part Number : `45010KPW900`
6	SPRING BRAKE SHOE Part Number : `45133028000`
7	DUST SEAL,BRAKE Part Number : `45134250000`
8	INDICATOR FR BRK Part Number : `45145KFM900`
9	ARM FR BRAKE Part Number : `45410KTM860`
10	SPRING BRAKE ARM Part Number : `45435121010`
11	91251KFM901 Part Number : `91251KFM901`
12	NUT,FLANGE 6MM Part Number : `9405006000`
13	JOINT BRAKE ARM Part Number : `9501532001`
14	NUT ADJUST Part Number : `9501542000`
15	BOLT FLANGE 6X28 Part Number : `957010602800`
