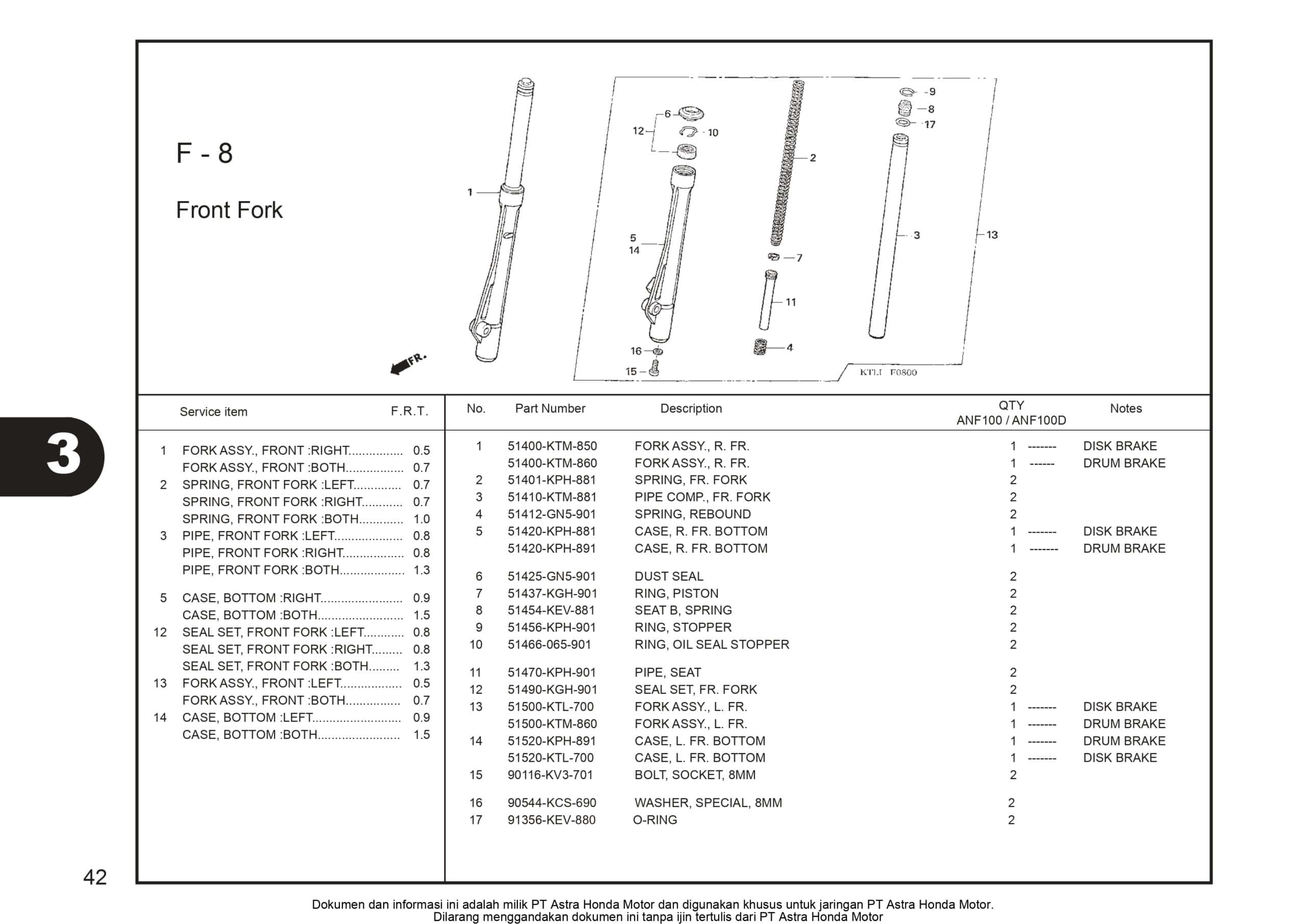

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY R FR (DK) | 51400KTM850 | - |
| 2 | FORK ASSY R FR (DR) | 51400KTM860 | - |
| 3 | SPRING FR FORK | 51401KPH881 |
|
| 4 | PIPE COMP FR FORK | 51410KTM881 |
|
| 5 | SPG REBOUND | 51412GN5901 |
|
| 6 | CASE R FR BOTTOM | 51420KPH881 |
|
| 7 | CASE R FR BOTTOM | 51420KPH891 | - |
| 8 | DUST SEAL FR FORK | 51425GN5901 |
|
| 9 | RING,PISTON | 51437KGH901 | - |
| 10 | SEAT B SPRING | 51454KEV881 |
|
| 11 | RIMG,STOPPER | 51456KPH901 |
|
| 12 | RING OIL SEAL | 51466065901 |
|
| 13 | PIPE,SEAT | 51470KPH901 |
|
| 14 | SEAL SET FR FORK | 51490KGH901 |
|
| 15 | FORK ASSY L FR | 51500KTL700 | - |
| 16 | FORK ASSY L FR (DR) | 51500KTM860 | - |
| 17 | CASE L FR BOTTOM | 51520KPH891 | - |
| 17 | CASE L FR BOTTOM | 51520KTL700 |
|
| 17 | BOLT,SOCKET 8MM | 90116KV3701 |
|
| 17 | WASHER,SPECIAL8MM | 90544KCS690 | - |
| 17 | O RING FR FORK | 91356KEV880 |
|
