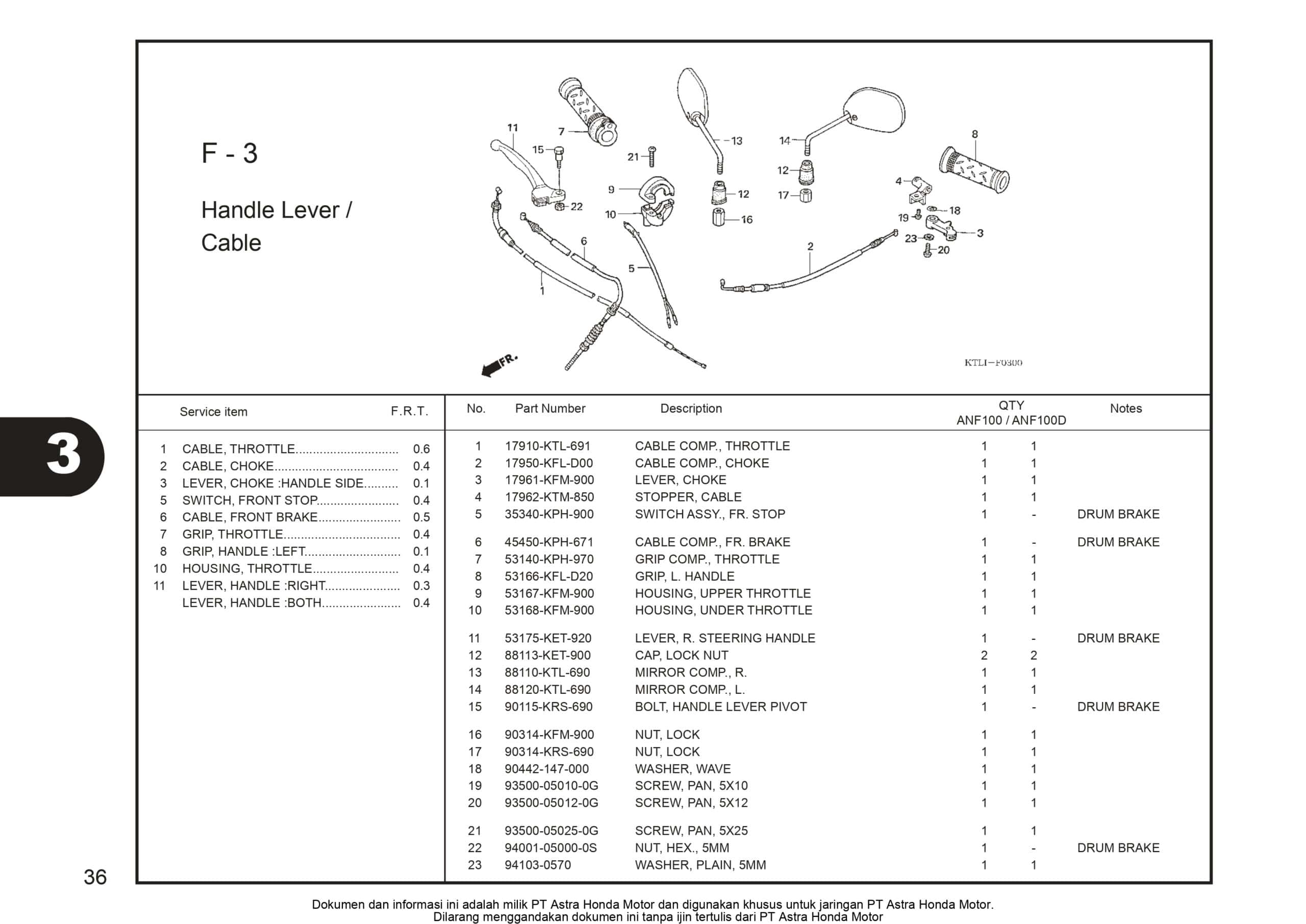

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | THROTTLE CABLE | 17910KTL691 |
|
| 2 | CABLE COMP, CHOKE | 17950KFLD00 |
|
| 3 | LEVER CHOKE | 17961KFM900 |
|
| 4 | STOPPER CABLE | 17962KTM850 |
|
| 5 | SWITCH ASSY., FR. STOP | 35340GZ9003 |
|
| 6 | FRONT BRAKE CABLE | 45450KPH671 |
|
| 7 | GRIP COMP THROT | 53140KPH970 |
|
| 8 | GRIP L HDL | 53166KFLD20 |
|
| 9 | HOUSING UP THROT | 53167KFM900 |
|
| 10 | HOUSING UND THROT | 53168KFM900 |
|
| 11 | LEVER R HANDLE | 53175KET920 |
|
| 12 | CAP LOCK NUT | 88113KET900 | - |
| 13 | MIRROR ASSY R BACK | 88110KTL690 | - |
| 14 | MIRROR ASSY L BACK | 88120KTL690 | - |
| 15 | BOLT HNDL LEVER PIVOT | 90115KRS690 |
|
| 16 | 90314KFM900 | 90314KFM900 | - |
| 17 | NUT LOCK | 90314KRS690 |
|
| 18 | WASHER WAVE | 90442147000 |
|
| 19 | SCREW PAN 5X10 | 93500050100G |
|
| 20 | SCREW PAN 5X12 | 93500050120G |
|
| 21 | SCREW PAN 5X25 | 93500050250G |
|
| 22 | NUT,HEX 5MM | 94001050000S | - |
| 23 | WASHER PLAIN 5MM | 9410305700 |
|
