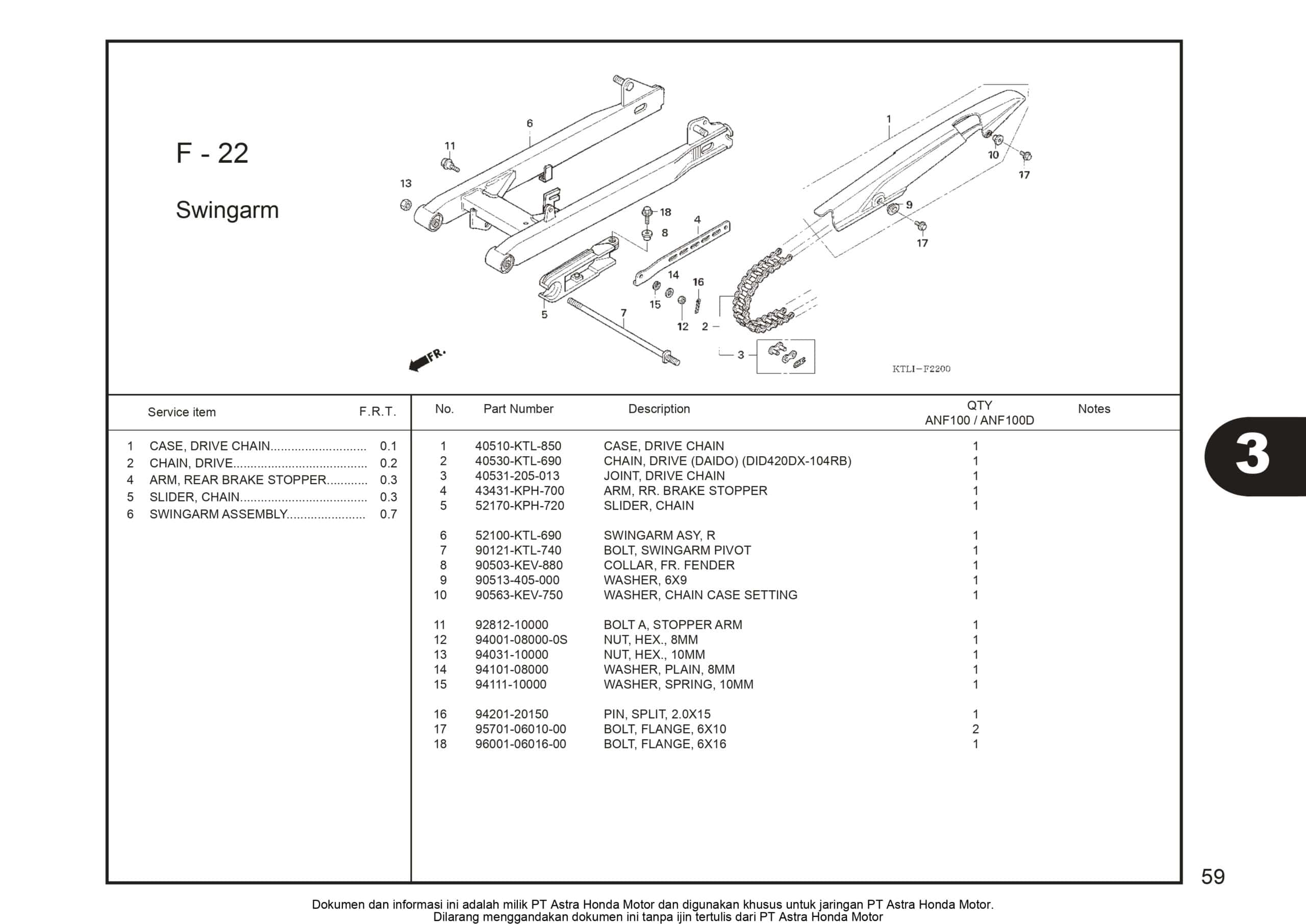

F-22 Swingarm – Katalog Honda Supra FIT X

#	Informasi Produk	Visual
1	40510KTL850 Part Number : `40510KTL850`
2	CHAIN DRIVE 428-106 Part Number : `40530KTL690`
3	JOINT,DRIVE CHAIN Part Number : `40531205013`
4	ARM RR BRK STPR Part Number : `43431KPH700`
5	SLIDER CHAIN (Y) Part Number : `52170KPH720`
6	SWINGARM RR ASSY Part Number : `52100KTL690`
7	BOLT SWINGARM PIVOT Part Number : `90121KTL740`
8	COLLAR FR FENDER Part Number : `90503KEV880`
9	WASHER 6X9 Part Number : `90513405000`
10	WASHER CHAIN CASE SET Part Number : `90563KEV750`
11	BOLT A ARM STOP Part Number : `9281210000`
12	NUT HEX 8MM Part Number : `94001080000S`
13	NUT HEX 10MM Part Number : `9403110000`
14	WASHER PLAIN 8MM Part Number : `9410108000`
15	WASHER,SPRING10MM Part Number : `9411110000`
16	PIN COTTER 2.0X15 Part Number : `9420120150`
17	BOLT FLANGE 6X10 Part Number : `957010601000`
18	BOLT FLANGE SH 6X16 Part Number : `960010601600`
