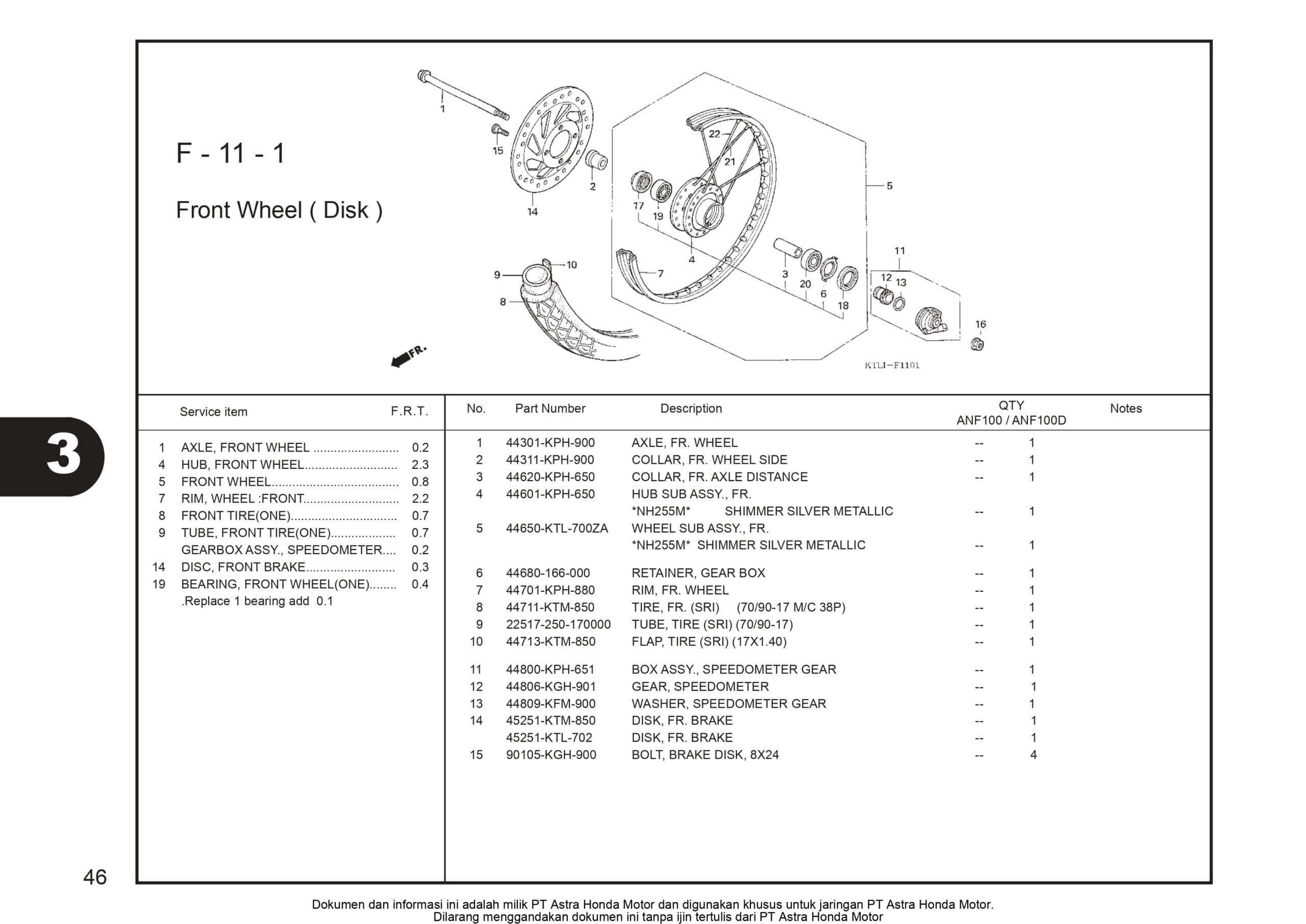

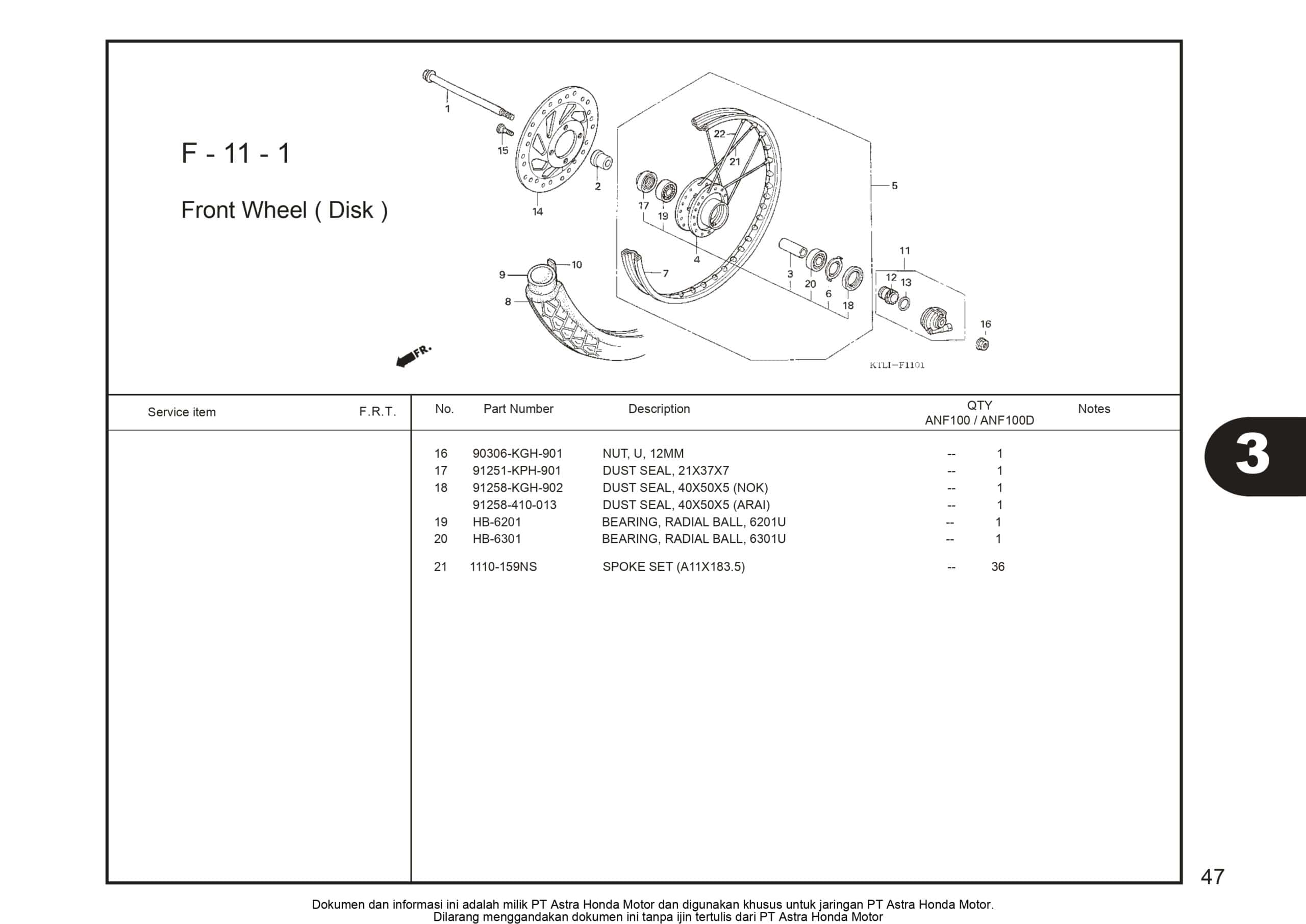

F-11-1 Front Wheel – Katalog Honda Supra FIT X

#	Informasi Produk	Visual
1	AXLE FR WHEEL Part Number : `44301KPH900`
2	COLLAR FR WHEEL SIDE Part Number : `44311KPH900`
3	COLLAR FR AXLE DIST Part Number : `44620KPH650`
4	44601KPH650 Part Number : `44601KPH650`
5	44650KTL700ZA Part Number : `44650KTL700ZA`
6	RETAINER GR.BOX Part Number : `44680166000`
7	RIM FR WHEEL Part Number : `44701KPH882`
8	TIRE FR TT (70/90-17) Part Number : `44711KTM850`
8	Tire, FR (2.50-17 FF135) Part Number : `44711KPH881`
9	TUBE TIRE (225/250-17) Part Number : `2251725017NR00`
10	44713KTM850 Part Number : `44713KTM850`
11	BOX SPEEDOMETER GEAR Part Number : `44800KPH651`
12	GEAR,SPDMT Part Number : `44806KGH901`
13	WASHER,SPDMT GEAR Part Number : `44809KFM900`
14	45251KTM850 Part Number : `45251KTM850`
14	DISK FR BRAKE Part Number : `45251KTL700`
15	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
16	NUT,U,12MM Part Number : `90306KGH901`
17	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
18	DUST SEAL,40X50X5 Part Number : `91258KGH902`
18	DUST,SEAL 40X50X5 Part Number : `91258410014`
19	BEARING BALL 6201 Part Number : `HB6201`
20	BEARING BALL 6301 Part Number : `HB6301RS`
21	1110159NS Part Number : `1110159NS`
