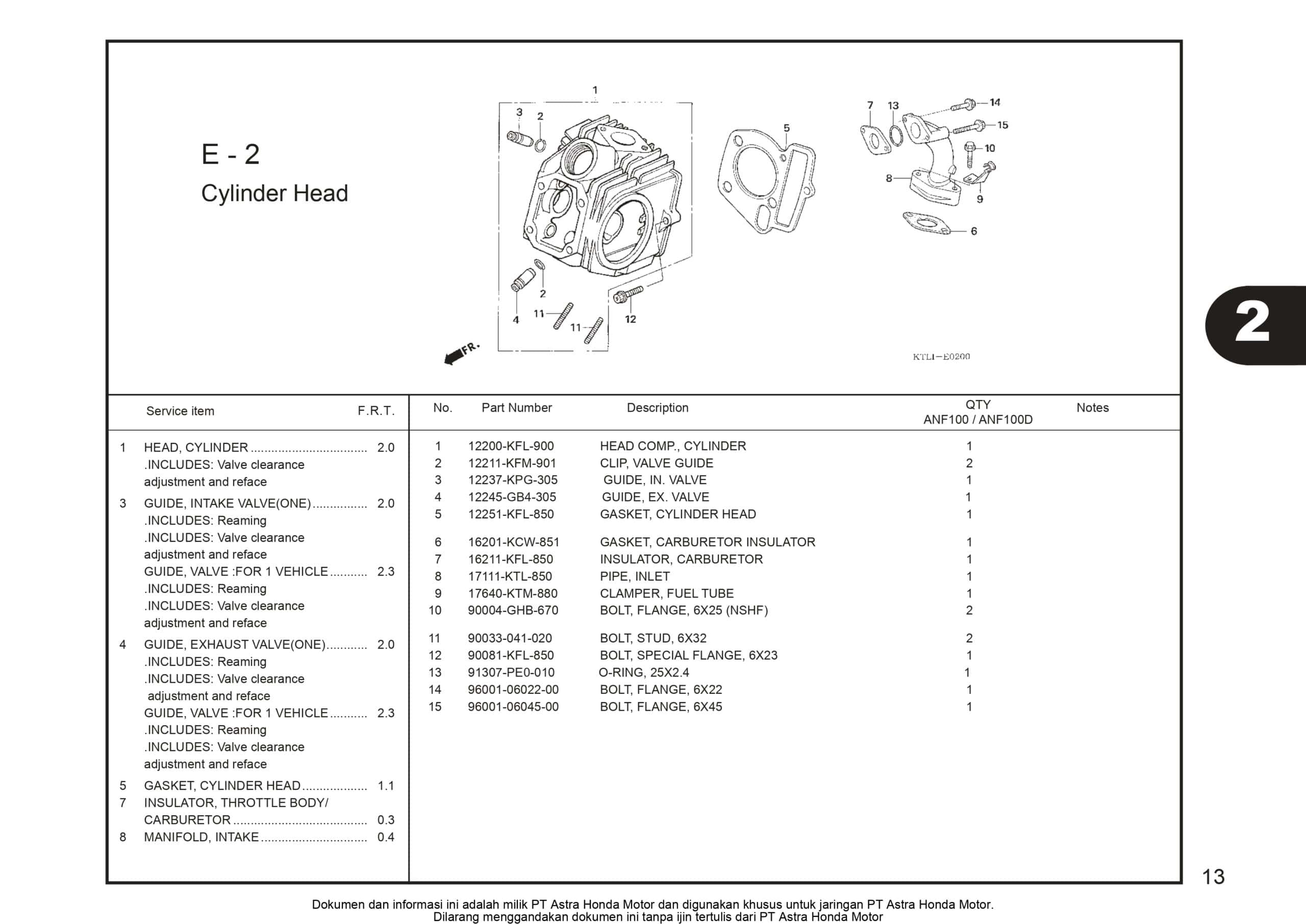

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD CYLINDER | 12200KFL900 | - |
| 2 | CLIP VALVE GUIDE | 12211KFM901 |
|
| 3 | GUIDE,INLET VALVE | 12237GB4305 |
|
| 4 | GUIDE,EX VALVE | 12245GB4305 |
|
| 5 | GASKET CYLINDER HEAD | 12251KFL850 |
|
| 6 | GASKET CARB INSULATOR | 16201KCW851 | - |
| 7 | INSULATOR,CARB | 16211KFL850 |
|
| 8 | PIPE INLET | 17111KTL850 | - |
| 9 | 17640KTM880 | 17640KTM880 | - |
| 10 | BOLT FLANGE SHF 6X25 | 90004GHB670 |
|
| 11 | BOLT STUD 6X32 | 90033041021 | - |
| 12 | BOLT, SPL FLANGE 6X23 | 90081KFL850 | - |
| 13 | O-RING,25X2.4 | 91307PE0010 | - |
| 14 | BOLT FLANGE 6X22 | 960010602200 |
|
| 15 | BOLT FLANGE 6X45 | 960010604500 |
|
