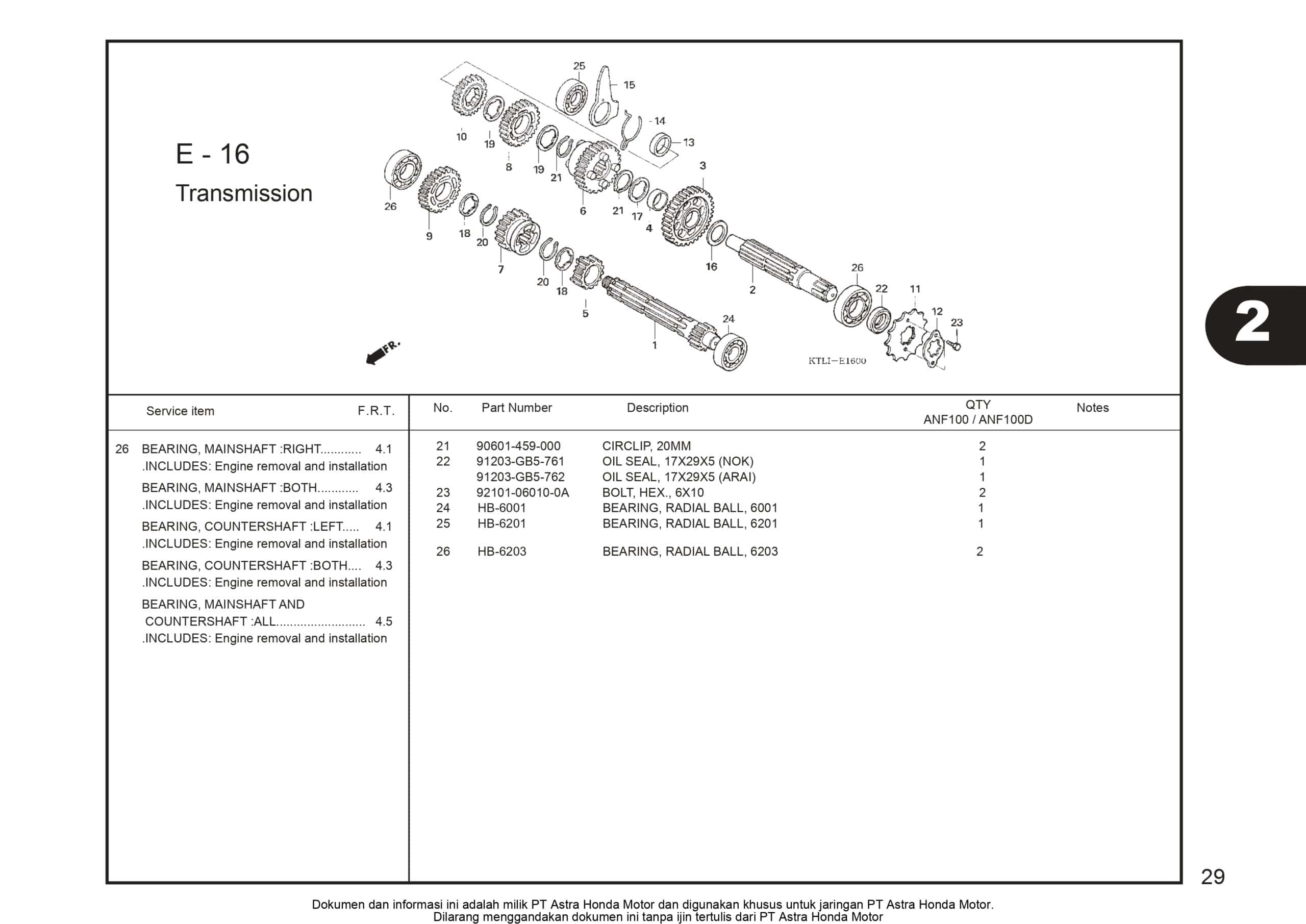

E-16 Transmission – Katalog Honda Supra FIT X

#	Informasi Produk	Visual
1	MAINSHAFT 12T Part Number : `23211KFM902`
2	COUNTERSHAFT Part Number : `23221KFL860`
3	GEAR C-1 34T Part Number : `23421KEV901`
4	BUSH 20X9 Part Number : `23422GB4771`
5	GEAR M-2 17T Part Number : `23431KEV911`
6	GEAR C-2 29T Part Number : `23441KEV901`
7	GEAR M-3 21T Part Number : `23451KFL852`
8	GEAR C-3 26T Part Number : `23461GK4763`
9	23471KEV750 Part Number : `23471KEV750`
10	GEAR C-4 23T Part Number : `23481GB4772`
11	SPROCKET DRIVE 14T Part Number : `23801GF6002`
12	PLATE FIXING Part Number : `23802GN5911`
13	COLLAR LOCK PLATE Part Number : `23911GB4771`
14	SPRING CHANGE FRICTION Part Number : `24305GB4771`
15	PLATE DRUM LOCK Part Number : `24306GB4771`
16	WASHER THRUST 17MM Part Number : `90452GB4771`
17	WASHER SPLINE 20X1.2 Part Number : `90461GB4771`
18	WASHER SPLINE 17MM Part Number : `90461035003`
19	WASHER SPLINE 20MM Part Number : `90461459010`
20	CIRCLIP EXTERNAL 17MM Part Number : `90601001005`
23	91203GB5762 Part Number : `91203GB5762`
23	92101060100A Part Number : `92101060100A`
25	BEARING RADIAL BALL 6001 Part Number : `HB6001`
26	BEARING RADIAL BALL6201 Part Number : `HB6201`
27	BEARING RADIAL BALL 6203 Part Number : `HB6203`
