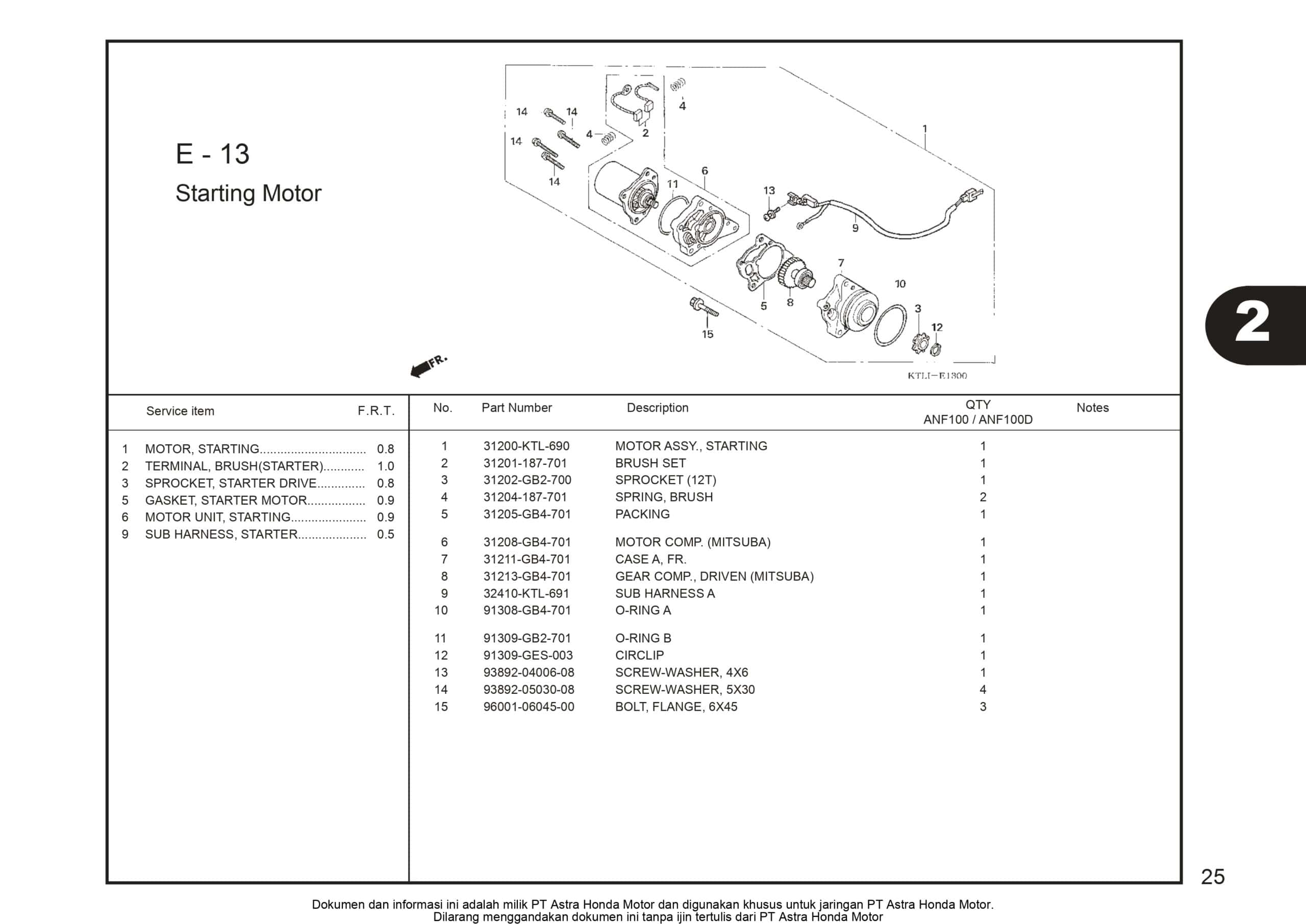

E-13 Starting Motor – Katalog Honda Supra FIT X
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
MOTOR ASSY START |
31200KTL690 |
|
| 2 |
BRUSH SET |
31201187701 |
-
|
| 3 |
SPROCKET /M |
31202GB2700 |
-
|
| 4 |
SPRING,BRUSH LBL |
31204187701 |
-
|
| 5 |
PACKING /M |
31205GB4701 |
-
|
| 6 |
MOTOR,STARTER |
31208GB4701 |
-
|
| 7 |
CASE A,FRONT |
31211GB4701 |
-
|
| 8 |
GEAR,DRIVE /M |
31213GB4701 |
-
|
| 9 |
SUB HARNESS A |
32410KTL690 |
-
|
| 10 |
O-RING A |
91308GB4701 |
-
|
| 11 |
O-RING B |
91309GB2701 |
-
|
| 12 |
CIRCRIP |
91309GES003 |
-
|
| 13 |
SCREW,WASHER 4X6 |
938920400608 |
|
| 14 |
SCREW,WASHER 5X30 |
938920503008 |
-
|
| 15 |
BOLT FLANGE 6X45 |
960010604500 |
|
