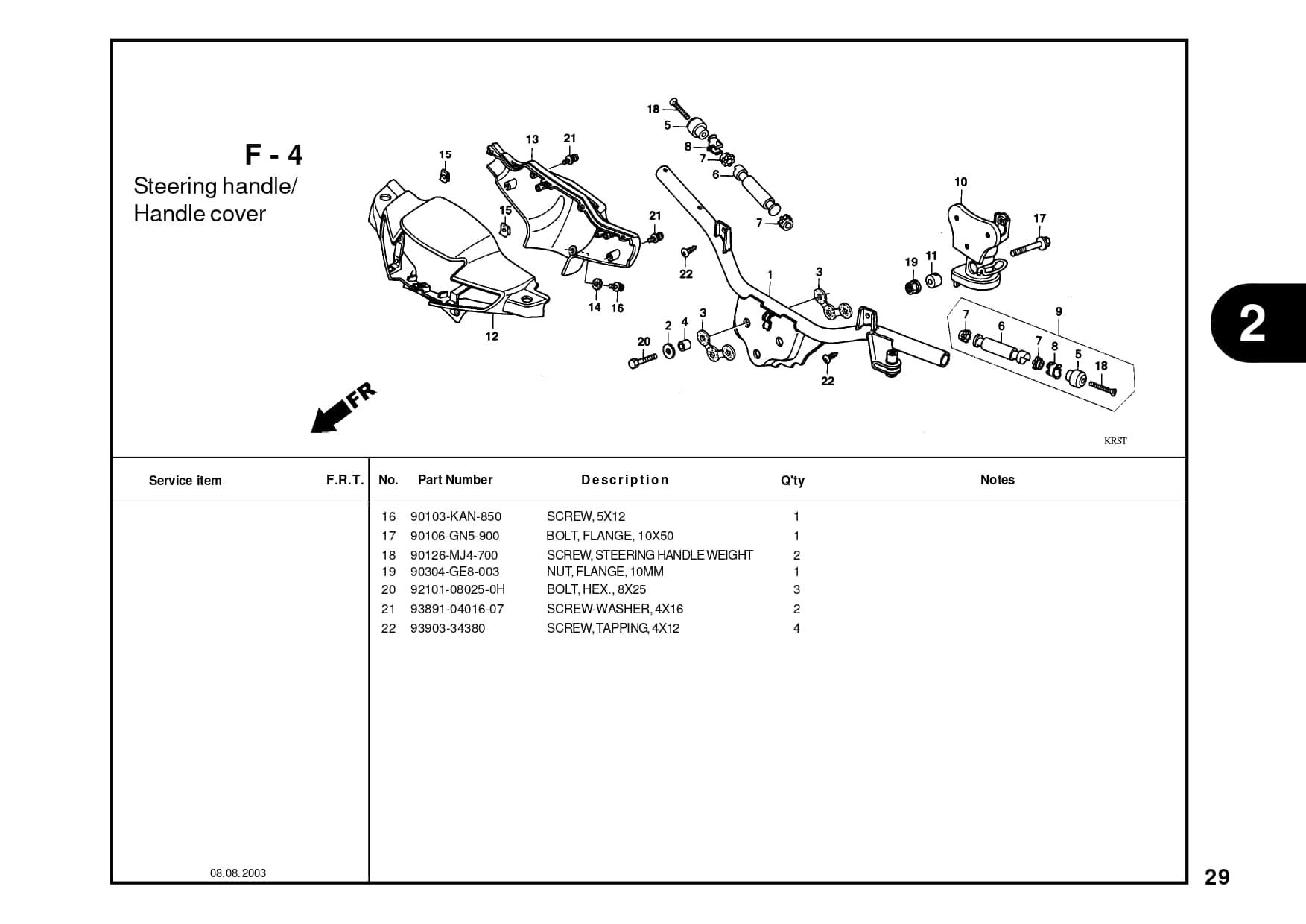

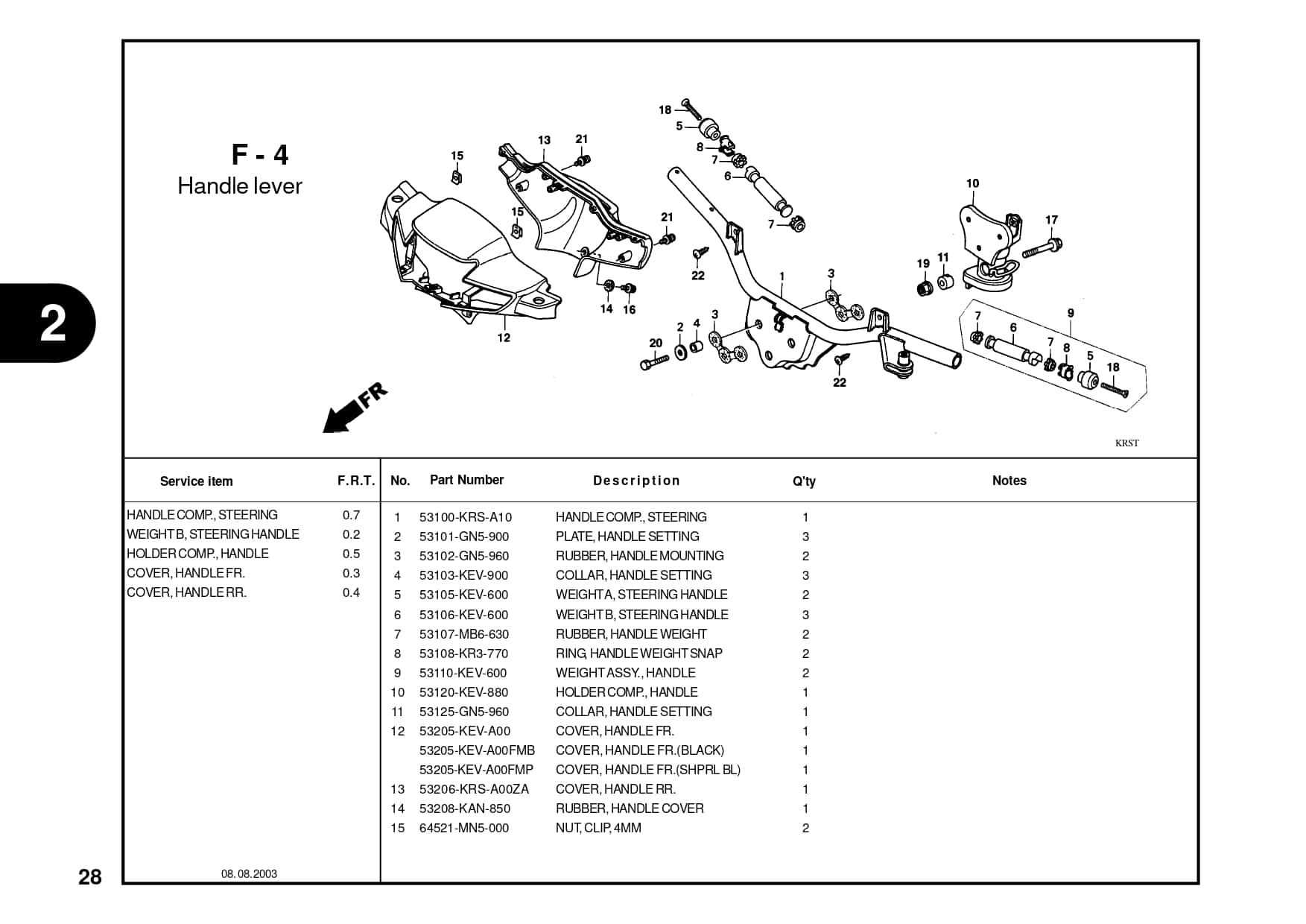

F-4 Steering Handle Handle Cover – Katalog Suku Cadang Honda Supra FIT New

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 53100KRSA10 53100KRSA10 -
2 PLATE HDL STRG 53101GN5900 -
3 RUBBER HDL MTG 53102GN5960 RUBBER HDL MTG
4 COLLAR HDL SET 53103KEV900 -
5 WEIGHT A STRG HDL 53105KEV601 -
6 53106KEV600 53106KEV600 -
7 RUBBER B HANDLE WEIGHT 53107MB6630 RUBBER B HANDLE WEIGHT
8 RING HDL WHT SNAP 53108KR3770 RING HDL WHT SNAP
9 WEIGHT B,ASSY STRG HDL 53110KEV600 -
10 HOLDER COMP HDL 53120KEV880 -
11 COLLAR HANDLE SET 53125GN5960 -
12 53205KEVA00 53205KEVA00 -
13 53205KEVA00FMB 53205KEVA00FMB -
14 53205KEVA00FMP 53205KEVA00FMP -
15 COVER HDL RR 53206KRSA00ZA COVER HDL RR
16 RUBBER HANDLE COVER 53208KAN850 -
17 NUT CLIP 4MM 64521MN5000 NUT CLIP 4MM
18 SCREW 5X12 90103KAN850 -
19 BOLT FLANGE 10X50 90106GN5900 BOLT FLANGE 10X50
20 SCREW STEER HND 90126MJ4700 -
21 NUT U 10MM 90304GE8003 NUT U 10MM
22 BOLT HEX 8X25 92101080250H -
23 SCREW WASHER 4X16 938910401608 SCREW WASHER 4X16
24 SCREW TAPPING 4X12 9390334380 SCREW TAPPING 4X12
