F-3 Handle Lever – Katalog Suku Cadang Honda Supra FIT New

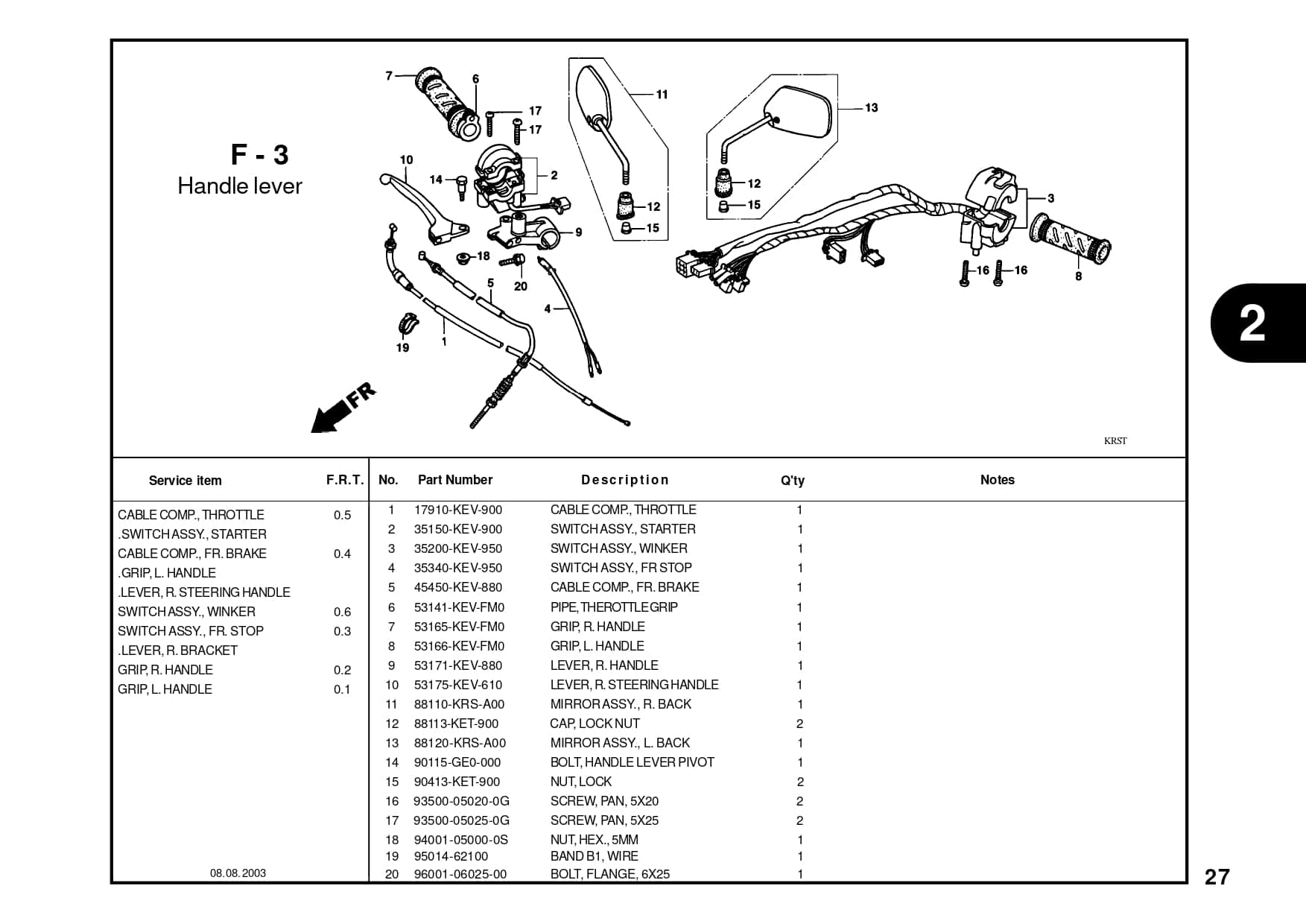

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 17910KEV900 17910KEV900 -
2 SWITCH ASSY START 35150KEV900 SWITCH ASSY START
3 SWITCH WINKER 35200KEV950 -
4 SWITCH FR STOP 35340KEV950 SWITCH FR STOP
5 45450KEV880 45450KEV880 -
6 PIPE THROTTLE 53141KEVFM0 PIPE THROTTLE
7 53165KEVFM0 53165KEVFM0 -
8 GRIP L HDL 53166KEVFM0 GRIP L HDL
9 53171KEV880 53171KEV880 -
10 LEVER R STRG HDL 53175KEV610 LEVER R STRG HDL
11 MIRROR ASSY R BACK 88110KRSA00 -
12 CAP LOCK NUT 88113KET900 -
13 MIRROR ASSY L BACK 88120KRSA00 -
14 BOLT,HANDLE LEVER 90115GE0000 -
15 90413KET900 90413KET900 -
16 SCREW PAN 5X20 93500050200G -
17 SCREW PAN 5X25 93500050250G SCREW PAN 5X25
18 NUT,HEX 5MM 94001050000S -
19 BAND B1 WIRE 9501462100 -
20 BOLT FLANGE 6X25 960010602500 BOLT FLANGE 6X25
