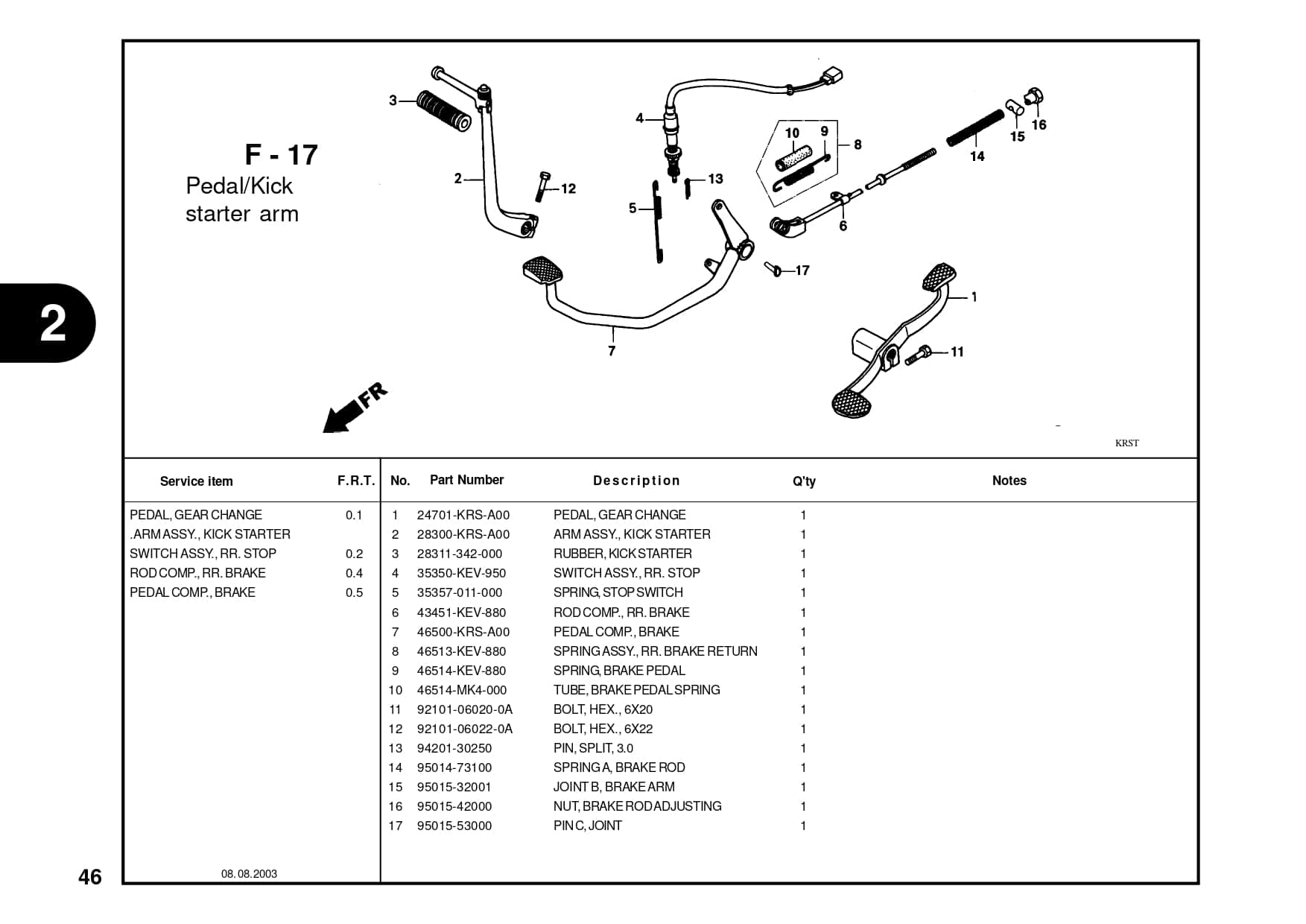

F-17 Pedal Kick Starter Arm – Katalog Suku Cadang Honda Supra FIT New

#	Informasi Produk	Visual
1	24701KRSA00 Part Number : `24701KRSA00`
2	ARM ASSY KICK STARTER Part Number : `28300KRSA00`
3	RUBBER KICK START Part Number : `28311342000`
4	SWITCH RR STOP Part Number : `35350KEV950`
5	SPRING SWITCH Part Number : `35357011000`
6	43451KEV880 Part Number : `43451KEV880`
7	46500KRSA00 Part Number : `46500KRSA00`
8	SPRING RR BRAKE Part Number : `46513KEV880`
9	46514KEV880 Part Number : `46514KEV880`
10	TUBE BRK PDL SPRG Part Number : `46514MK4000`
11	BOLT,HEX 6X20 Part Number : `92101060200A`
12	BOLT HEX 6X22 Part Number : `92101060220A`
13	PIN,SPLIT 30X25 Part Number : `9420130250`
14	SPRING A BRAKEROD Part Number : `9501473100`
15	JOINT BRAKE ARM Part Number : `9501532001`
16	NUT ADJUST Part Number : `9501542000`
17	PIN C, JOINT Part Number : `9501553000`
