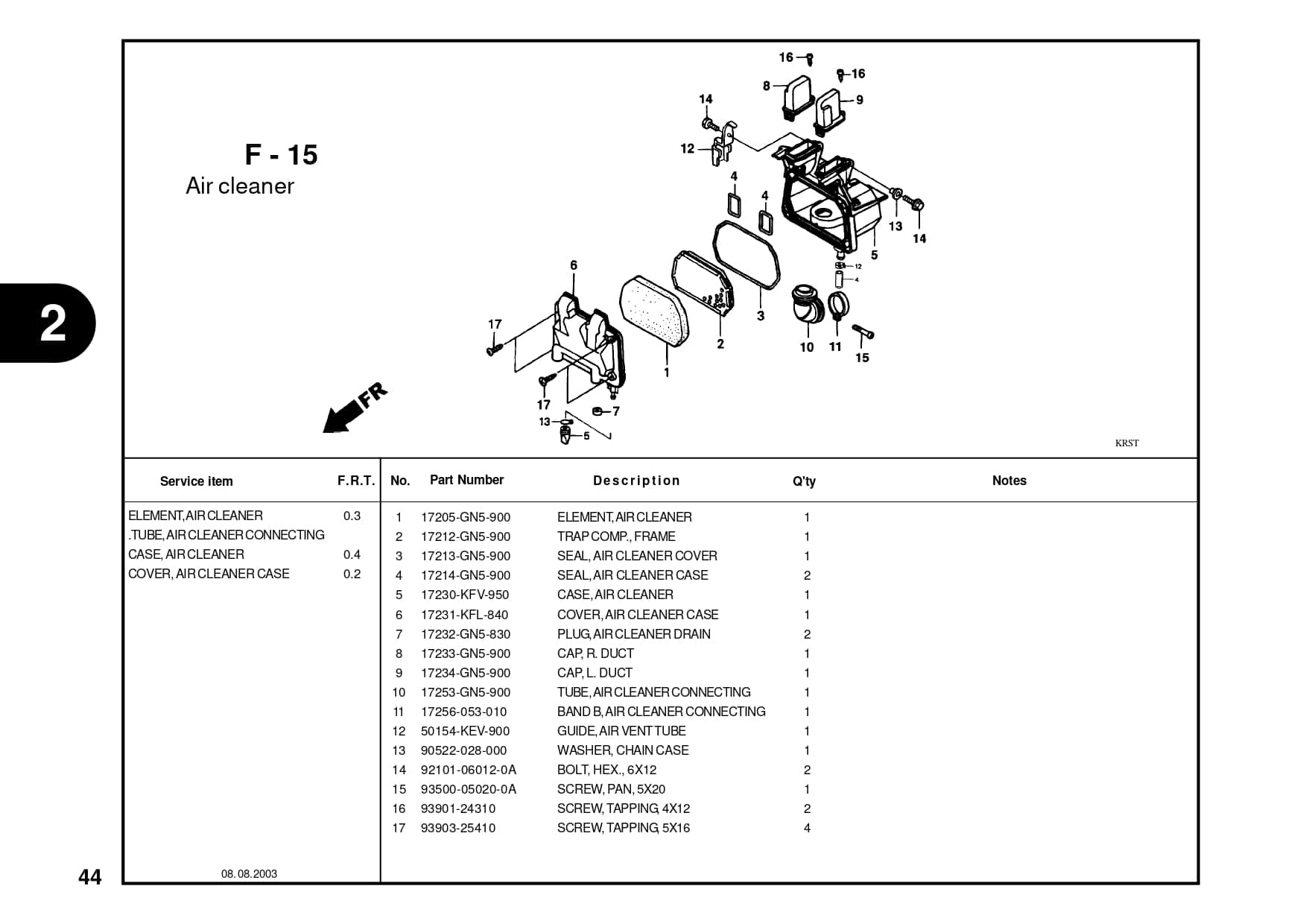

F-15 Air Cleaner – Katalog Suku Cadang Honda Supra FIT New

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 ELEMENT CLEANER 17205GN5900 ELEMENT CLEANER
2 TRAP COMP FLAME 17212GN5900 -
3 17213GN5900 17213GN5900 -
4 SEAL A/C 17214GN5900 -
5 CASE AIR/C 17230KFV950 -
6 17231KFL840 17231KFL840 -
7 17232GN5830 17232GN5830 -
8 CAP R DUCT 17233GN5900 -
9 CAP L DUCT 17234GN5900 -
10 TUBE A/C 17253GN5900 TUBE A/C
11 17256053010 17256053010 -
12 GUIDE AIR VENT 50154KEV900 -
13 WASHER CHAIN CASE 90522028000 -
14 BOLT HEX 6X12 92101060120A BOLT HEX 6X12
15 SCREW, PAN, 5X20 93500050200A SCREW, PAN, 5X20
16 SCREW TAPPING 4X12 9390124310 -
17 9390325410 9390325410 -
