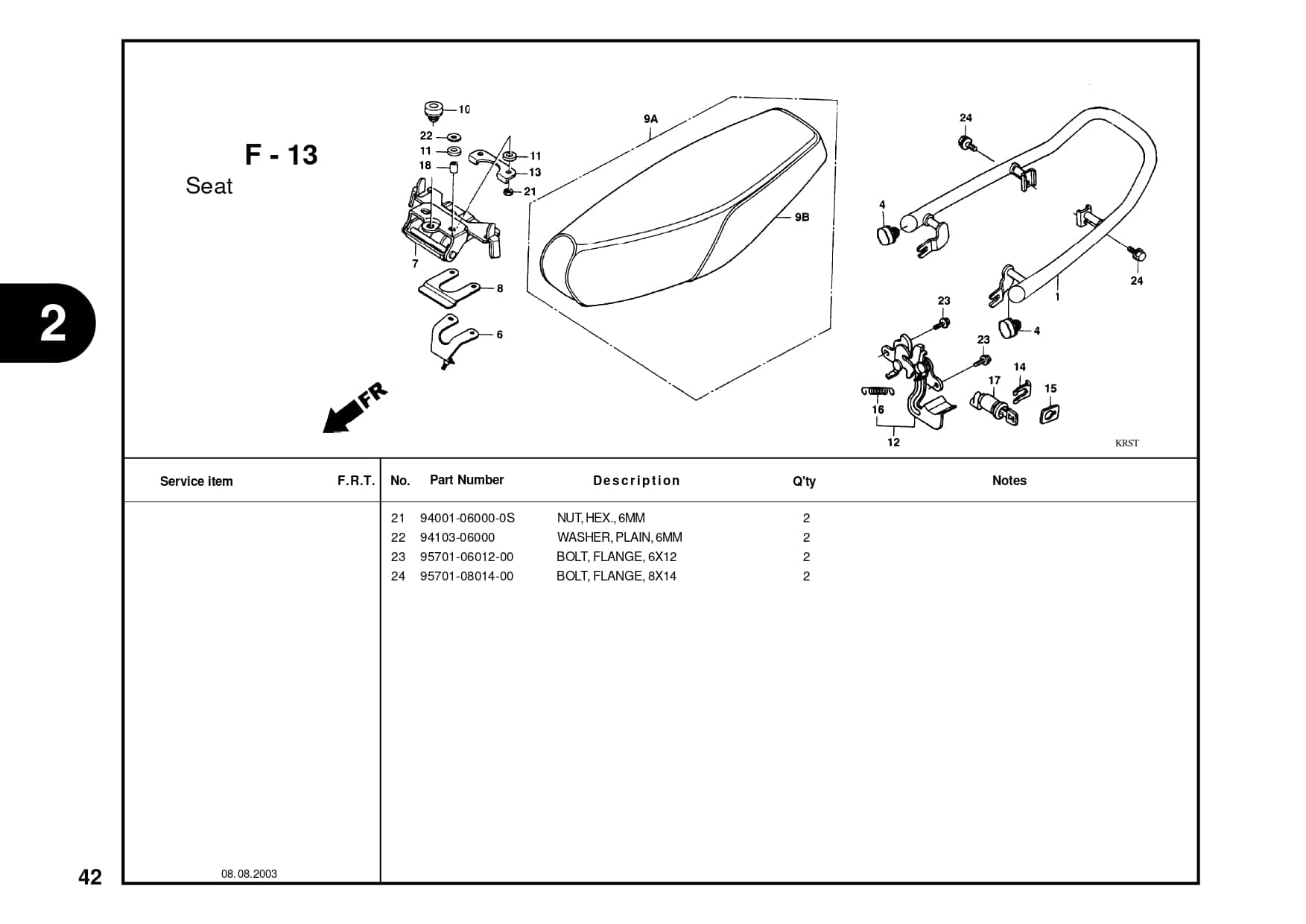

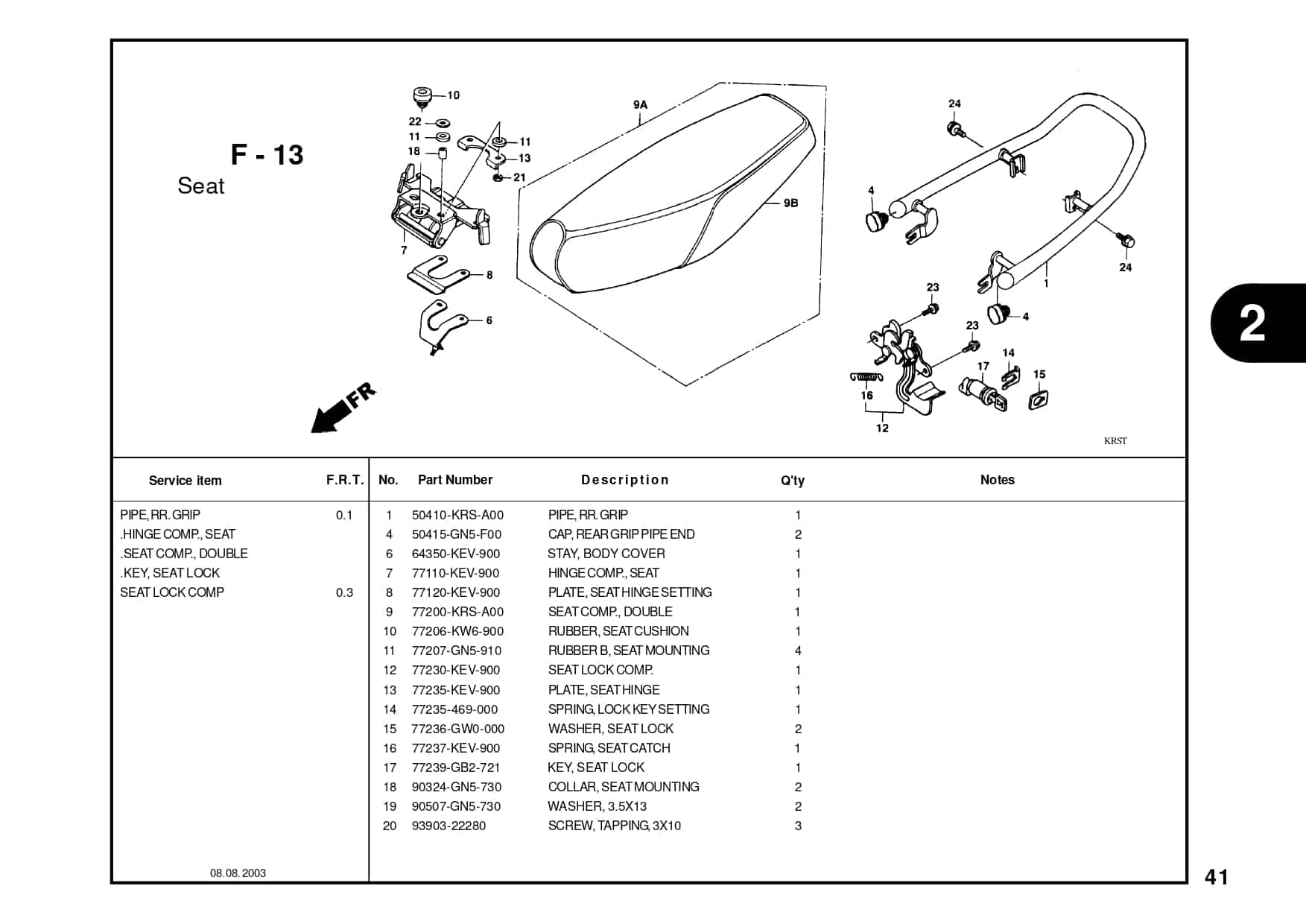

F-13 Seat – Katalog Suku Cadang Honda Supra FIT New
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
PIPE RR GRIP |
50410KRSA00 |
-
|
| 2 |
CAP RR GRIP |
50415GN5F00 |
|
| 3 |
64350KEV900 |
64350KEV900 |
-
|
| 4 |
77110KEV900 |
77110KEV900 |
-
|
| 5 |
77120KEV900 |
77120KEV900 |
-
|
| 6 |
SEAT COMP DOUBLE |
77200KRSA00 |
-
|
| 7 |
77206KW6900 |
77206KW6900 |
-
|
| 8 |
RUBBER SEAT |
77207GN5910 |
-
|
| 9 |
SEAT LOCK COMP |
77230KEV900 |
-
|
| 10 |
PLATE SEAT HINGE |
77235KEV900 |
-
|
| 11 |
SPRING LOCK KEY |
77235469000 |
-
|
| 12 |
WASHER SEAT LOCK |
77236GW0000 |
|
| 13 |
77237KEV900 |
77237KEV900 |
-
|
| 14 |
KEY SEAT LOCK |
77239GB2721 |
-
|
| 15 |
COLLAR,SEAT MOUNT |
90324GN5730 |
-
|
| 16 |
90507GN5730 |
90507GN5730 |
-
|
| 17 |
SCREW,TAPP 3X10 |
9390322280 |
-
|
| 18 |
NUT HEX 6MM |
94001060000S |
|
| 19 |
WASHER PLAIN 6MM |
9410306000 |
|
| 20 |
BOLT FLANGE 6X12 |
957010601200 |
|
| 21 |
BOLT,FLANGE 8X14 |
957010801400 |
|
