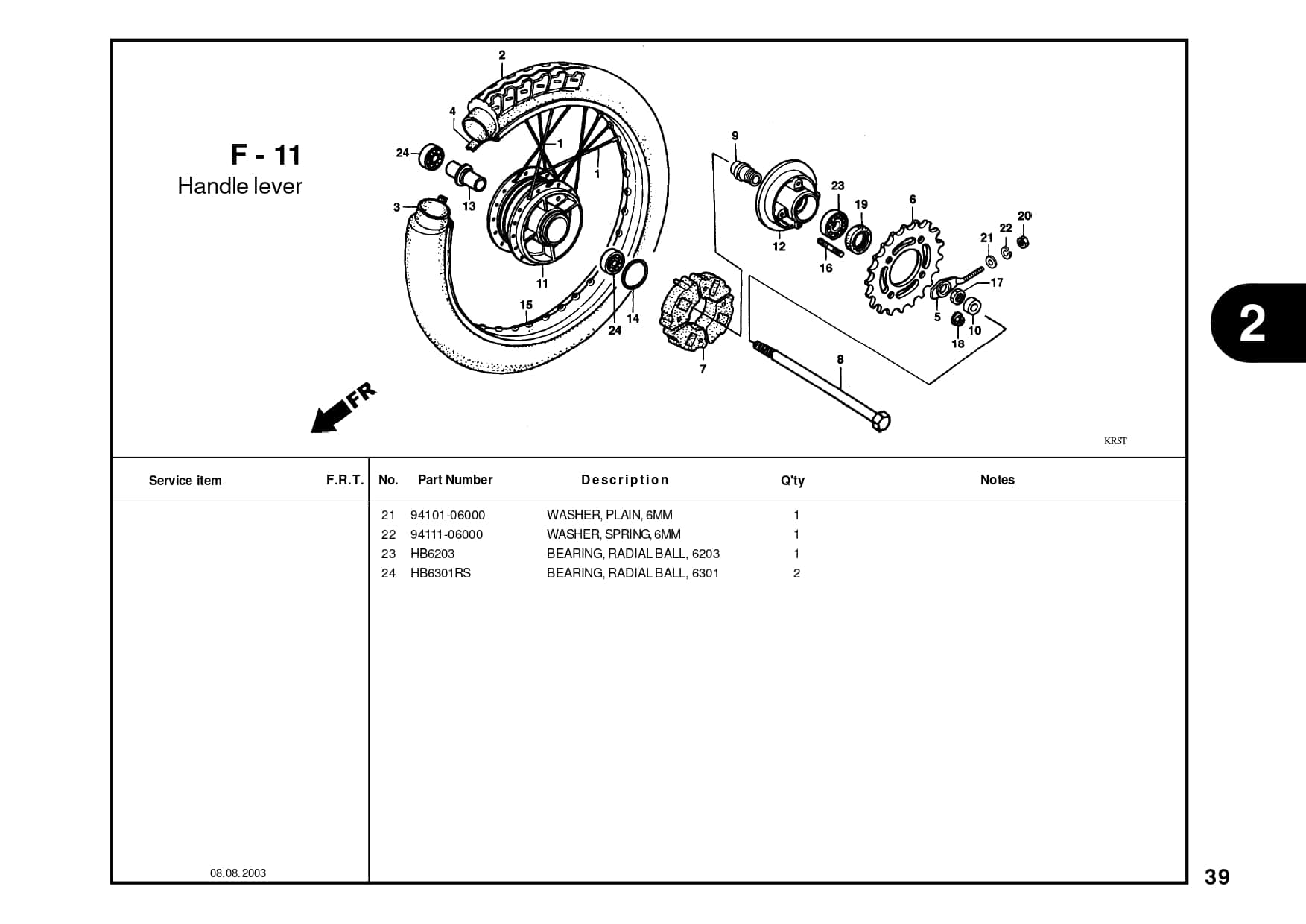

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 1110159NS | 1110159NS | - |
| 2 | TIRE RR TT (80/90-17 | 42711KTM850 |
|
| 3 | TUBE TIRE (2.75-17) | 2751700000NR00 |
|
| 4 | 50540GN5730 | 50540GN5730 | - |
| 5 | ADJUSTER L CHAIN ASSY | 40540GN5730 |
|
| 6 | SPROCKET DRIVEN | 41201KEV880 | - |
| 7 | Damper RR Wheel Set | 41241GB4771 |
|
| 8 | AXLE RR WHEEL | 42301KFM900 |
|
| 19 | SLEEVE RR.WHL. | 42303KBA900 | - |
| 10 | COLLAR RR WHEEL SIDE | 42304KFM900 |
|
| 11 | HUB RR WHEEL (SLV) | 42601GN5960FMS |
|
| 12 | FLANGE FINAL DRV | 42610KEV880 | - |
| 13 | COLLAR RR AXLE | 42620GB6920 | - |
| 14 | O-RING 40.5X3 | 42653001004 |
|
| 15 | 42701383701 | 42701383701 | - |
| 16 | BOLT STUD 8X43 | 90128GS4000 | - |
| 17 | NUT REAR AXLE | 90307001000 | - |
| 18 | NUT HEX 8MM | 90309357000 |
|
| 29 | 91252KEV900 | 91252KEV900 | - |
| 20 | NUT HEX 6MM | 94001060000S |
|
| 21 | WASHER PLAIN 6MM | 9410106000 |
|
| 22 | WASHER,SPRING 6MM | 9411106000 |
|
| 23 | BEARING,BALL | HB6203 |
|
| 24 | BEARING,BALL | HB6301RS |
|
